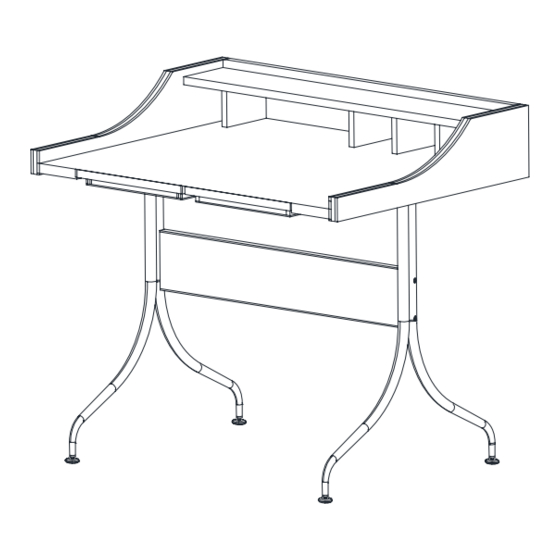

EEI –2057
DESK
Thank you for purchasing the DESK！
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the desk, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all pieces out of reach of small children.
Component:
A
Top Panel
x1
D
Divider Panel x1
G
Desk Leg
x2
Customer Service 908-368-1025︱
D
B
F
G
H
B
Left Side Panel
E
Right Side Panel
Hardware:
a
b
c
d
e
f
f
g
h
A
C
D D
D
E
G
x1
x1
Cam Post
x10
Cam
x10
Dowel
x20
Short Bolt M6x30mm
x8
Long Bolt M6x55mm
x4
Allen Wrench
Plastic Cover
x1
Leveler
C
Back Panel
x1
F
Desk Top
x1
H
Bottom Panel
x1
Page 1 of 6
x1
x4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for modway EEI-2057
Summary of Contents for modway EEI-2057
- Page 1 EEI –2057 DESK Thank you for purchasing the DESK！ Before you start, here is some helpful advice: 1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step instructions. 2.Owing to the size and weight of the desk, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 EEI –2057 DESK HOW TO USE CAN AND CAM POST HARDWARE Note cam arrow direction Turn cam clockwise 1/2 turn Note cam arrow direction STEP 1: Insert 5pcs Cam Post (a) into the corresponding holes on the Left Side Panel (B) by using a Phillips Head Screw Driver (not included) as shown.
- Page 3 EEI –2057 DESK STEP 2: Insert 4pcs Dowel (c) into the holes on 1pc Divider Panel (D) as shown. Repeat the same steps for the other remaining 3pcs Divider Panel (D). Insert 4pcs Dowel (c) into the holes on the Top Panel (A) as shown. Place the Desk Top (F) and Top Panel (A) to the Divider Panels (D) as shown.
- Page 4 EEI –2057 DESK STEP 4: Connect the Left Side Panel (B) and Right Side Panel (E) to the assembled Desk Top (F) /Top Panel (A) and Back Panel (C) as shown. Use a Phillips Head Screw Driver (not included) to tighten all the Cams (b) clockwise until secure. Phillips Head Screwdriver Hardware &...
- Page 5 EEI –2057 DESK STEP 6: Screw the 4 pieces of Leveler (h) to the bottom of Desk Legs (G) clockwise until secure. Front Back STEP 7: Please put the assembled Desk Top (F) upside down on a carpeted or padded surface. Put something under the bottom of the assembled Desk Top (F) for balance.
- Page 6 EEI –2057 DESK STEP 8: Carefully turn over the desk. Assembly is completed. The desk is ready to enjoy now! Customer Service 908-368-1025︱ Page 6 of 6...
