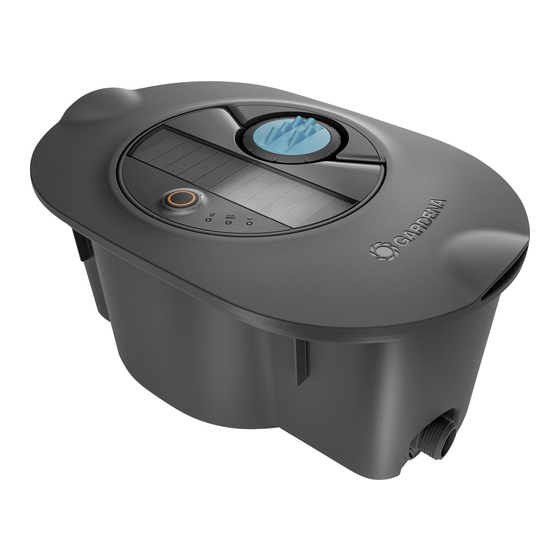

Gardena AquaPrecise 16010 Operator's Manual
  1. Manuals
  2. Brands
  3. Gardena Manuals
  4. Irrigation System
  5. AquaPrecise 16010
  6. Operator's manual

Gardena AquaPrecise 16010 Operator's Manual

Irrigation system/pipeline irrigation system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AquaPrecise
(for above-ground installation)
Art. No. 16000
en
Operator's manual
Irrigation system /
Pipeline irrigation system
AquaPrecise
(for underground installation)
Art. No. 16001
Art. No. 16010
16000-20.962.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AquaPrecise 16010 and is the answer not in the manual?

Questions and answers

Related Manuals for Gardena AquaPrecise 16010

Summary of Contents for Gardena AquaPrecise 16010

  • Page 1 16000-20.962.01 AquaPrecise AquaPrecise (for above-ground installation) (for underground installation) Art. No. 16000 Art. No. 16001 Art. No. 16010 Operator’s manual Irrigation system / Pipeline irrigation system...

  • Page 2: Table Of Contents

    Selecting the right location for the AquaPrecise ..... . . Connecting the AquaPrecise to the GARDENA Bluetooth App ..10 ®...

  • Page 3: Safety Instructions

    Sand and other abrasive substances in the water cause faster wear and reduced performance. ￫ If the water used contains sand, use a filter (e. g. GARDENA Pressure Regulator with integrated filter (Art. No. 8200)). ￫ Do not use a lawn aerator or aerator rake over the ground- level AquaPrecise.

  • Page 4: Intended Use

    ￫ Keep toddlers away when you assemble the product. 1.2 Intended use The GARDENA AquaPrecise irrigation system is for outdoor irrigation of gardens and lawns in private gardens and allotments. The product is not suitable for long-term use (professional opera- tion).

  • Page 5: Battery Safety Instructions

    The battery may become hot during charging and cause a fire hazard. ￫ Only use original GARDENA spare parts. Spare parts that have not been tested by GARDENA may cause an increased risk of fire or defective products. ￫ Do not charge the battery outside of the AquaPrecise.

  • Page 6: Installation

    ￫ Only use the original GARDENA batteries recommended by the manufacturer. Other batteries do not guarantee product safety. 2. INSTALLATION 2.1 Included in delivery Art. No. 16000 Art. No. 16001 Art. No. 16010 AquaPrecise Mounting plate – – Pipeline box –...

  • Page 7: Charging The Battery Via The Usb Port

    2.3 Charging the battery via the USB port The battery can be charged using a USB-C cable. The USB con- nector power supply unit with USB-C cable is not included in the scope of delivery. If the battery is not fully charged, it may become damaged and, in certain cases, become exhausted or unusable.

  • Page 8: Installing The Gardena Bluetooth ® App On Your Mobile Device

    App must be installed on ® your mobile device (smartphone / tablet) before connecting the AquaPrecise to the device. You can download the GARDENA Bluetooth App from the ® Google Play Store or Apple Store or scan the following QR code: https://eqrco.de/pa/R0NCo6...

  • Page 9: Selecting The Right Location For The Aquaprecise

    2.5 Selecting the right location for the AquaPrecise You must first select the right location for the AquaPrecise before installing it, based on the following criteria: • The max. range is 10 m. Therefore, no contour point may be further than 10 m away from the AquaPrecise. •...

  • Page 10: Connecting The Aquaprecise To The Gardena Bluetooth ® App

    2.6 Connecting the AquaPrecise to the GARDENA Bluetooth ® The AquaPrecise must be connected to the GARDENA Bluetooth App before using it for the first time. ® 1. Enable Bluetooth on your mobile device. The Bluetooth icon is displayed in the status bar on your mobile device.
  • Page 11 Note: The GARDENA Bluetooth App will now also guide you ® through the next steps for installation. If the AquaPrecise has already been installed, it can now be pro- grammed and configured via the GARDENA Bluetooth ® (see “3.1 Programming the AquaPrecise”).

  • Page 12: Performing A Spray Distance Test

    The AquaPrecise is activated and the battery LED shows the battery’s charge status (see “3.3.2 Battery LED “). 5. Open the GARDENA Bluetooth App on your mobile device. ® 6. Move the water jet within the irrigation area (left / right) using the GARDENA Bluetooth App.

  • Page 13: Installing The Aquaprecise In The Garden

    2.8.1 (Art. No. 16000) Installing the AquaPrecise on the mounting plate above ground If you want to use the AquaPrecise at different locations, you can use an additional GARDENA mounting plate (Art. No. 16022). Note: Installation is automatically prompted in the GARDENA Bluetooth App after the spray distance test.
  • Page 14 4. Push the AquaPrecise towards the connection until it locks onto the base plate 5. Connect the connection to the water supply via the Original GARDENA System.
  • Page 15 2.8.2 (Art. No. 16001 / 16010) Underground installation of the AquaPrecise in the Pipeline box Note: Installation is automatically prompted in the GARDENA Bluetooth App after the spray distance test. ® 1. Place the Pipeline box at the specified position on the lawn according to the spray distance test.
  • Page 16 10. Connect the 3/4" male thread of the Pipeline box using the connector (Art. No. 2761) and the GARDENA 25 mm con- necting pipe (Art. Nos 2700 / 2701 / 2718 / 2792 / 2793). 11. Refill the trenches with soil.
  • Page 17 12. Place the AquaPrecise in the Pipeline box so that the of the AquaPrecise faces towards the slot connection of the Pipeline box 13. Push the AquaPrecise towards the slot until the con- nection locks into the slot 14. Fit the box cover onto the Pipeline box...

  • Page 18: Operation

    3.1.1 Setting up the AquaPrecise Use the GARDENA Bluetooth App to set up the AquaPrecise. ® 1. Connect the AquaPrecise to the GARDENA Bluetooth ® (see “2.5 Selecting the right location for the AquaPrecise”). 2. Open the GARDENA Bluetooth App on your mobile device ®...

  • Page 19: Programming A Contour

    This enables water do be distributed evenly without areas overlapping. The GARDENA-supported schedule also considers the contour size and adjusts irrigation times accordingly. For a manual sched- ule, the irrigation time and frequency is set (irrigation volume in l/m²...

  • Page 20: Manual Button

    ￫ Briefly press the manual button twice(within ten seconds). Manual irrigation starts, and the irrigation LED flashes. The manual irrigation time is preset in the GARDENA Bluetooth ® App. The contour most recently selected in the GARDENA Bluetooth App is always irrigated by default. The most recently ®...
  • Page 21 Connection mode is activated for three minutes and the Bluetooth LED flashes blue during this period. 2. Connect the AquaPrecise to the GARDENA Bluetooth ® (see “2.5 Selecting the right location for the AquaPrecise”). 3.2.3 Restarting devices The AquaPrecise can be restarted.

  • Page 22: Led Display

    Lights up red: battery ≤ 20 % (irrigation cannot be started) • Flashes red: battery ≤ 5 % (current irrigation is suspended) When operating with an upstream valve (e. g. GARDENA Water Control): internal valve closes if battery charge is ≤ 5 % and opens if it is ≥ 20 % During the charging process: •...

  • Page 23: Maintenance

    4. MAINTENANCE 4.1 Removing / disconnecting the AquaPrecise We recommend removing the AquaPrecise from the mounting plate or removing it from the Pipeline box before carrying out any cleaning work. 4.1.1 (Art. No. 16000) Removal from the mounting plate and pull the AquaPrecise 1.
  • Page 24 4.1.2 (Art. No. 16001 / 16010) Removal from the Pipeline box 1. Pull the locking mechanism of the slot towards the rear and pull the AquaPrecise forwards until the connection is free. 2. Remove the AquaPrecise by pulling it upwards out of the Pipeline box...

  • Page 25: Cleaning The Solar Cell

    4.2 Cleaning the solar cell To ensure that the battery is always sufficiently charged, the solar cell must be cleaned if it is dirty. Do not use corrosive or abrasive cleaning agents. ￫ Use a damp cloth to clean the solar cell...

  • Page 26: Cleaning The Dirt Filter

    4.3 Cleaning the dirt filter If the irrigation range decreases, this could indicate that the dirt filter is dirty. from the AquaPrecise 1. Unscrew the connection 2. Pull the dirt filter out of the AquaPrecise 3. Clean the dirt filter and the connection under running water.

  • Page 27: Cleaning The Sprinkler Head

    4.4 Cleaning the sprinkler head An uneven irrigation pattern may indicate that the sprinkler head is dirty. 1. Pull out the locking mechanism on the sprinkler head 2. Remove the sprinkler head by pulling it upwards from the AquaPrecise 3. Unscrew the nozzle cover from the sprinkler head 4.

  • Page 28: Cleaning The Turbine Area

    4.5 Cleaning the turbine area If the irrigation range increases, this could indicate that the flow turbine area is dirty. 1. Unscrew the turbine cover from the bottom of the AquaPrecise 2. Remove the turbine from the turbine cover 3. Rinse out the turbine area with water.

  • Page 29: Storage

    5.1.1 (16000) AquaPrecise above ground 1. Shut off the water source (tap) or detach the water supply from the pump. 2. Connect the AquaPrecise to the GARDENA Bluetooth ® (see “2.5 Selecting the right location for the AquaPrecise”). 3. In the GARDENA Bluetooth App, go to the settings and ®...
  • Page 30 App, go to the settings and ® open the valve and suspend the schedules. 4. Wait until the water drains away via the GARDENA drain valve (Art. No. 2760) or purge the system using the GARDENA drain valve set (Art. No. 2770).
  • Page 31 The AquaPrecise is activated and the battery LED shows the battery’s charge status (see “3.3.2 Battery LED “). 3. Connect the AquaPrecise to the GARDENA Bluetooth ® App (see “2.6 Connecting the AquaPrecise to the GARDENA Bluetooth App”). ® The schedules are then automatically reactivated.

  • Page 32: Troubleshooting

    6. TROUBLESHOOTING 6.1 Replacing the battery The GARDENA spare parts are available from your GARDENA dealer or from GARDENA Service. ￫ Only use an original GARDENA battery (Art. No.  16000-00.690.00) 1. Unscrew the four screws from the bottom of the AquaPrecise from the AquaPrecise 2.

  • Page 33: Error Table

    The sprinkler head is dirty. ￫ Clean the sprinkler head. Irrigation pattern is uneven The sprinkler head is ￫ Contact GARDENA Service. damaged. The battery is empty. ￫ Charge the battery via the The AquaPrecise is not responding USB port.
  • Page 34 NOTE: Repairs must only be done by GARDENA service departments or specialist dealers approved by GARDENA. ￫ Please contact your GARDENA service department in the event of other faults (see reverse).

  • Page 35: Technical Data

    °C 5 – 60 Operating temperature range °C Max. water temperature Pressure range: AquaPrecise 2 – 12 GARDENA Pipeline system 2 – 6 Irrigation range at 2 bar 2 – 10 m² Irrigation area at 2 bar Irrigation sector ° 25 – 360 Water flow: Min.

  • Page 36: Accessories / Spare Parts

    8. ACCESSORIES / SPARE PARTS For underground installation. GARDENA Art. No. 16021 Pipeline box For above-ground installation. GARDENA Art. No. 16022 Mounting plate As a replacement for a damaged winter GARDENA Art. No. 16001-00.600.16 cover. Winter cover As a replacement for a damaged nozzle. Art. No. 16000-00.670.00...

  • Page 37: Disposal

    The battery contains lithium-ion cells that should not be disposed of with normal household waste at the end of its life. Li-ion IMPORTANT! 1. Discharge the lithium-ion cells fully (contact GARDENA Service about this). 2. Ensure that the lithium-ion cell contacts do not short-circuit by placing tape over them.

  • Page 38: Assignment Of Trademarks

    ® owned by Bluetooth SIG, Inc. and any use of such trademarks by GARDENA is under licence. Apple and the Apple logo are trademarks of Apple Inc., registered in the United States and other countries.
  • Page 39 EU Declaration of conformity The undersigned hereby certifies as the authorized representative of the man- ufacturer, GARDENA Germany AB, PO Box 160 89, SE-103 92, Stockholm, Sweden, that, when leaving our factory, the unit(s) indicated below is / are in accordance with the harmonised EU guidelines, EU standards of safety and product specific standards.
  • Page 40 Declaration of Conformity [only for UK] The manufacturer, GARDENA Germany AB, PO Box 160 89, SE-103 92, Stockholm Sweden, hereby certifies, when leaving our factory, the unit(s) indicated below is / are in accordance with the UK Regulations, designated standards of safety and product specific designated standards.
  • Page 41 Deutschland / Germany Bulgaria Egypt Ireland GARDENA Manufacturing GmbH AGROLAND България АД Universal Agencies Co Liffey Distributors Ltd. Central Service бул. 8 Декември, № 13 26, Abdel Hamid Lotfy St. 309 NW Business Park, Ballycoolen Hans-Lorenser-Straße 40 Офис 5 Giza...
  • Page 42 Spain вул Петропавлівська 4 Republica Moldova, Poland Husqvarna España S.A. 08130, Київська обл. mun. Chisinau, Gardena Service Center Vrbno Calle de Rivas nº 10 Києво-Святошинський р-н. с. sos. Muncesti 284 c/o Husqvarna Manufacturing CZ 28052 Madrid Петропавлівська Борщагівка Україна Phone: (+373) 22 857 126 s.r.o.
