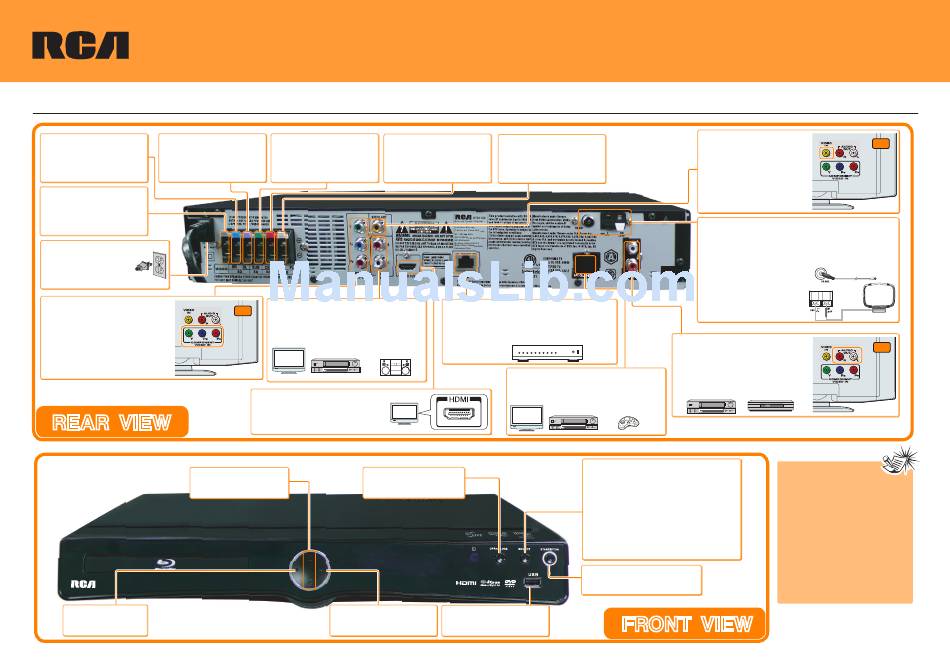

RCA RTB1100 Quick Setup

Congratulations on purchasing your new RCA product.
Please read these instructions for quick setup sheet on using the product.
Blue Speaker terminals
Purple Speaker terminals
C o n n e c t t h e b l u e a n d
C o n n e c t t h e p u r p l e a n d
black wires from Rear Left
black wires from Subwoofer
Speakers (surround sound)
Speaker to the terminals.
to the terminals.
Gray Speaker terminals
Connect the gray and black
w i r e s f r o m R e a r R i g h t
Speakers (surround sound)
to the terminals.
aC Power Cord
Connect the AC power
plug into the AC power
outlet. (See note 1)
Composite Video Out Jack
Use to connect the COMPONENT VID-
EO OUT jacks (Y, P , P ) on the back
B R
of the unit to the component video IN
jacks on your TV (shown at right) so
that the video content goes from the
unit to the TV screen.

REaR ViEw

VOLUME +/- Buttons
Adjusts the volume.
StOP Button
Stops playback.
Green Speaker terminals Red Speaker terminals
Connect the green and black
Connect the red and black
wires from Center Speaker w i r e s f r o m F r o n t R i g h t
to the terminals. Speaker to the terminals.
aUDiO OUt Jacks
tV
Use to connect the AUDIO OUT jacks from
the unit to the AUDIO IN jacks on TV, VCR,
Stereo system or other audio component.
VCR Stereo System
tV
HDMi Out Jack
Use to connect an HDMI cable from
HDMI IN jack on the TV to the HDMI
(See note 2)
OUT jack on this unit.
OPEn/CLOSE Button
Opens and closes the disc
tray.
PLaY/PaUSE Button
Starts/pauses playback.
white Speaker terminals
C o n n e c t t h e w h i t e a n d
black wires from Front Left
Speaker to the terminals.
Lan (Ethernet) Jack
Use to connect an Ethernet cable (CAT5 or better with
RJ45 connector) to the ETHERNET jack on the back of
your player and to an Ethernet jack on a broadband hub
or router.
Hub or network Router
Optical in Jack
Use to connect the OPTICAL DIGITAL IN jack on
the back of the unit to the OPTICAL OUT jack on
TV, VCR, SAT/Cable Box or other component.
VCR Game Console
tV
SOURCE Button
Selects the input sources. Press repeatedly
to select between:
• BD/USB – to watch BD/DVD discs, or
photos and video files stored on to a data
disc or USB flash drive.
• OPTICAL – to select the digital audio input.
• AUX – to select the analog audio input.
• TUNER – to listen to the radio.
StanDBY/On Button
Switches the unit on and off.
USB Port

FROnt ViEw

For connection of USB flash
drives.
Quick Setup Sheet
Composite Video Out Jack
Use to connect the VIDEO OUT
jack on the back of the unit to
the Video IN jack on your TV
(shown as right) so that the
video content goes from the
unit to the TV screen.
aM Loop antenna
1. Uncoil the AM antenna wire.
2. Press down on the antenna tabs to open the terminals.
3. Insert the white wire on the AM loop antenna into the
AM loop terminal and the other into the ground(GND)
loop terminal. (See note 3)
FM antEnna
FM antenna
C o n n e c t t h e F M
antenna to the FM
terminal.
aUDiO in Jack
Use to connect the AUDIO IN jacks on
the back of the unit to the AUDIO OUT
jacks on TV, VCR, SAT/Cable Box or
others (TV example shown here).
VCR Sat/Cable Box
notes:
1. The AC power plug is polarized
(one blade is wider than the
other) and only fits into AC
power outlets one way. If the
plug won't go into the outlet
completely, turn the plug over
and try to insert it the other way.
2. The HDMI output will give
you the highest quality video
connection.
3. To receive clear reception,
AM and FM antennas must be
hooked up.
Specifications and external appearance
are subject to change without advance
n o t i c e d u e t o c o n t i nu o u s p r o d u c t
improvement.
RTB1100
