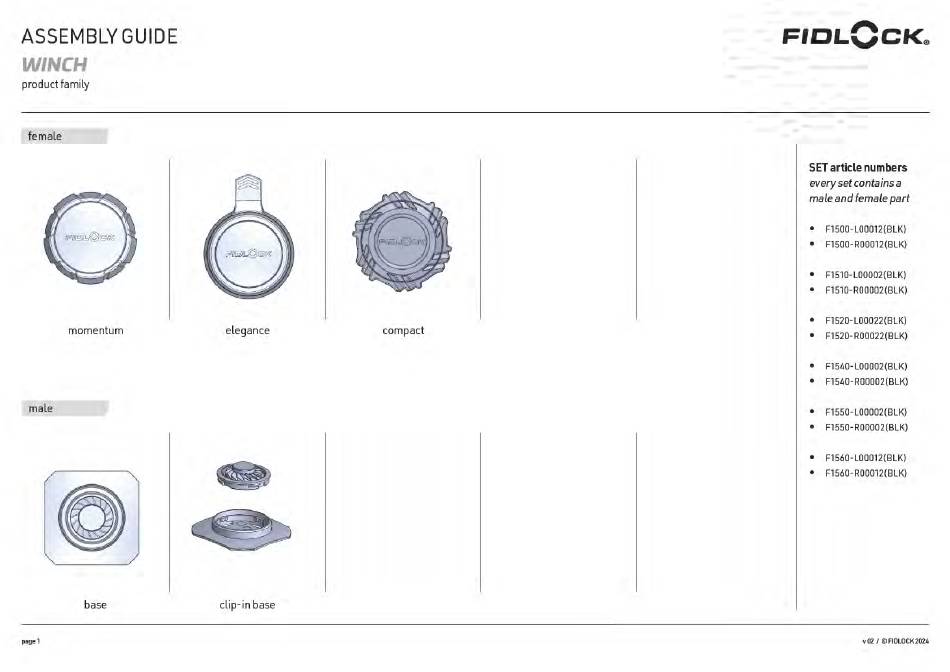

Page 6: Assembly Guide
F1550-L00002(BLK) • • F1510-R00002(BLK) F1550-R00002(BLK) • winch momentum and elegance offer the same technology with a different handle design • featuring a ratchet mechanism • available in left and right turning direction page 6 v 02 / © FIDLOCK 2024... - Page 9 SETs (incl. compatible male part) • • F1520-L00022(BLK) F1540-L00002(BLK) • • F1520-R00022(BLK) F1540-R00002(BLK) • reduced hight and smaller diameter for low profile application • available in left and right turning direction page 9 v 02 / © FIDLOCK 2024...
- Page 10 • delivered unassembled • LDRP is optional, (LDRP) • laces, eyelets or laceguides not please order seperately! included for lace diameter 1-1.5mm • magnet inside • do not heat above 80°C handle page 10 v 02 / © FIDLOCK 2024...
- Page 13 SETs (incl. compatible female part) • • • F1500-L00012(BLK) F1510-L00002(BLK) F1520-L00002(BLK) • • • F1500-R00012(BLK) F1510-R00002(BLK) F1520-R00002(BLK) • standard stitchable base part • available in left and right turning direction page 13 v 02 / © FIDLOCK 2024...
- Page 14 ASSEMBLY GUIDE WINCH base Overview WINCH base • standard stitchable base part • available in left and right turning base direction • magnet inside • do not heat above 80°C page 14 v 02 / © FIDLOCK 2024...
- Page 16 F1510-R00002(BLK) F1540-R00002(BLK) • allows to assemble the magnetic part at the very end of the pro- duction process • delivery as two seperate parts • assembly requires TOOL30 of our TOOLS catalogue page 16 v 02 / © FIDLOCK 2024...
- Page 17 • use 10mm hexnut and driver or direction ratchet to operate the tool • TOOL30 is not included, please order • please only assemble once! seperately • dissasembly might damage the parts page 17 v 02 / © FIDLOCK 2024...
