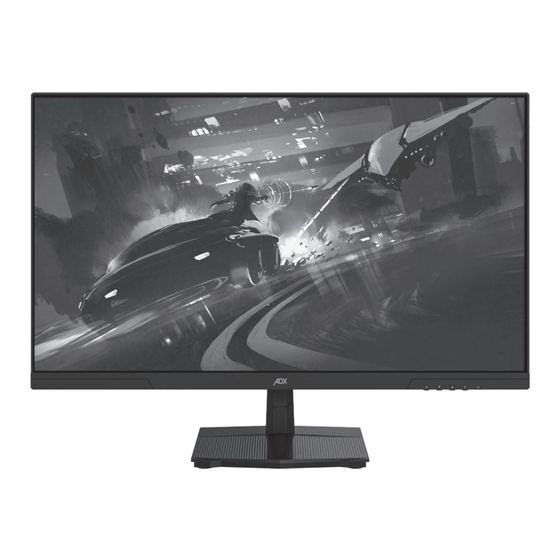

- Page 1 FIRESIGHT 27QF180 27" 180Hz QHD GAMING MONITOR INSTRUCTION MANUAL A2710R25...
- Page 2 Contents Safety Warnings ............................. 3 Unpacking .............................. 5 Product Overview ..........................6 Front View .....................................6 Rear View ....................................6 Connections ............................7 HDMI Connection ................................7 DP Cable Connection ...............................7 AUDIO Connection ................................8 Using Earphones ................................8 Connecting to Mains Supply ............................9 Installation ............................10 Assembling with the Base Stand ..........................10 Adjusting angle ................................12 Wall Mounting .................................13...
- Page 3 Safety Warnings mount bracket when attaching the monitor to • Read all the instructions carefully before using the bracket. See your monitor instructions for the unit and keep them for future reference. screw type. • Retain the manual. If you pass the unit onto a •...
- Page 4 other devices or moving the unit. is that displaying the same image for a long time may cause a permanent after-image to • Unplug the unit from the mains socket during remain on the screen. This is called screen a lightning storm and long inactivity periods burn.
- Page 5 Thank you for purchasing your new product. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.
- Page 6 Product Overview Front View 2 3 4 5 6 1. Screen Display Up Button 2. M Button 5. E Button • Press to enter OSD menu. Press to enter input source menu. • Press to confirm your selection. Press to exit. Down Button Power Button Press to switch on/off the unit.
- Page 7 Connections HDMI Connection Use the HDMI cable (not included) to connect the HDMI 1 or HDMI 2 socket of the unit to the HDMI OUT socket of your PC (not included). (not included) HDMI 2 HDMI 1 AUDIO Main Unit HDMI Cable (not included) DP Cable Connection...
- Page 8 AUDIO Connection Use an audio cable (not included) to connect the AUDIO socket of the main unit and an AUDIO IN socket of an audio device (e.g. speaker; not included). HDMI 2 HDMI 1 AUDIO Main Unit Audio device (not included) Audio Cable (not included) Using Earphones...
- Page 9 Connecting to Mains Supply 1. This unit operates with a mains adapter (included). 2. Connecting the unit to any other power source may damage the unit. Unwind the mains adapter to its full length. Connect the end of the cable to the DC socket of the unit and then connect the mains adapter to the mains socket.
- Page 10 Installation Assembling with the Base Stand 1. Take out the unit with the foam. Gently place it on a flat surface. Remove the upper foam cover. Take out the monitor from the film bag, and then place it onto the lower cover. Lower foam cover 2.
- Page 11 3. Install the assembled base stand into the rear of the monitor unit. And then gently take it out from the foam. Slide the stand into the rear of the unit until you hear a “click“ sound. Make sure that the stand is securely installed before you lift up or move the unit. 4.
- Page 12 Adjusting angle You may adjust the angle of the screen for a comfortable viewing experience. The angle of the screen can be adjusted forwards or backwards from -5° to 20°. -5° 20° Do not touch or press the screen area when adjusting the angle of the monitor.
- Page 13 Wall Mounting 1. Take out the unit with the foam. Gently place it on a flat surface. 2. Remove the upper foam cover. Take out the monitor from the film bag, and then place it onto the lower foam cover Lower foam cover 3.
- Page 14 Operation Switching On/Off Press and hold Power button to switch on the unit. The display will show the ADX • logo. Press and hold Power button again to switch off the unit. • • Unplug the mains adapter from the mains socket to switch off the unit completely.
- Page 15 Picture Mode Standard Mode Off/On RTS/RPG Mode Off/On FPS Mode Off/On MOBA Arena Mode Off/On Movie Mode Off/On Reading Mode Off/On Night Mode Off/On Eye Care Mode Off/On Mac View Mode Off/On E-Book Mode Off/On Picture Settings Brightness 0-100 Contrast 0-100 Off/On Low Blue Light...
- Page 16 Game+ Off/Auto/HDR Game/HDR Movie Adaptive-Sync Off/On Virtual Response Time Off/On Picture Enhancement Color Enhancement: Off/Level 1-10 CR Enhancement: Off/Level 1-5 Shadow Balance: 0-100 Night Vision Mode: Off/Level 1-2/Auto Level1-2 Super Resolution: Off/Level 1-3 Dynamic OD: Off/Level 1-3/Topspeed Game Rush Mode: Off/On Reset Picture Enhancement: Off/On Game Aid Refresh Rate:...
- Page 17 PIP/PBP PIP/PBP Mode Off/PIP Mode/PBP 2Win 1:1 Sub-Signal Source DP1/DP2/HDMI1/HDMI2 Audio Source Auto/DP1/DP2/HDMI1/HDMI2 PIP Position Top Right/Top Left/Bottom Right/ Bottom Left PIP Size Small/Medium/Large Window Swap Off/On Reset PIP/PBP Off/On I/O Settings Input Signal Auto/DP1/DP2/HDMI1/HDMI2 Quick Boot Off/On Quantization Range RGB Limit(16~235)/RGB Full(0~255)/ Auto Reset I/O Settings...
- Page 18 Virtual Response Time The unit supports Virtual Response Time. It provides a better display on fast moving images. You may adjust the “Virtual Response Time“ setting in OSD menu. Virtual Response Time: Off Virtual Response Time: On Maintenance Cleaning the Unit Ensure the unit is fully unplugged from the mains socket before cleaning.
- Page 19 Hints and Tips The following table contains various hints and tips to get the best performance from your monitor. If you require additional assistance: • For UK, please call our UK Call Centre on 0344 561 1234. • For Ireland, please call our Ireland Call Centre on 0818 810575. Problem Solution No image on screen...
- Page 20 Specifications Brand Model A2710R25 16:9 Aspect Ratio ≤178°(H) / ≤178°(V) Viewing Angle 0.2328 (H) × 0.2328 (V) mm Pixel Pitch 1000:1 (TYP) Contrast Ratio 16.7M Colours 2560 × 1440 Screen Resolution (Horizontal × Vertical) (pixel) 180 Hz Maximum Refresh Rate 4.0A Power Input approx.
- Page 21 On mode power demand in Standard Dynamic Range (SDR) 24 W 0.3 W Off mode, power demand 0.4 W Standby mode power demand Monitor Electronic display category 20 dm Visible screen area Panel technology used Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market) (Years) Minimum guaranteed availability of spare parts (from the...
- Page 22 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0344 800 3456 (UK customers only). Calls charged at National Rate.
