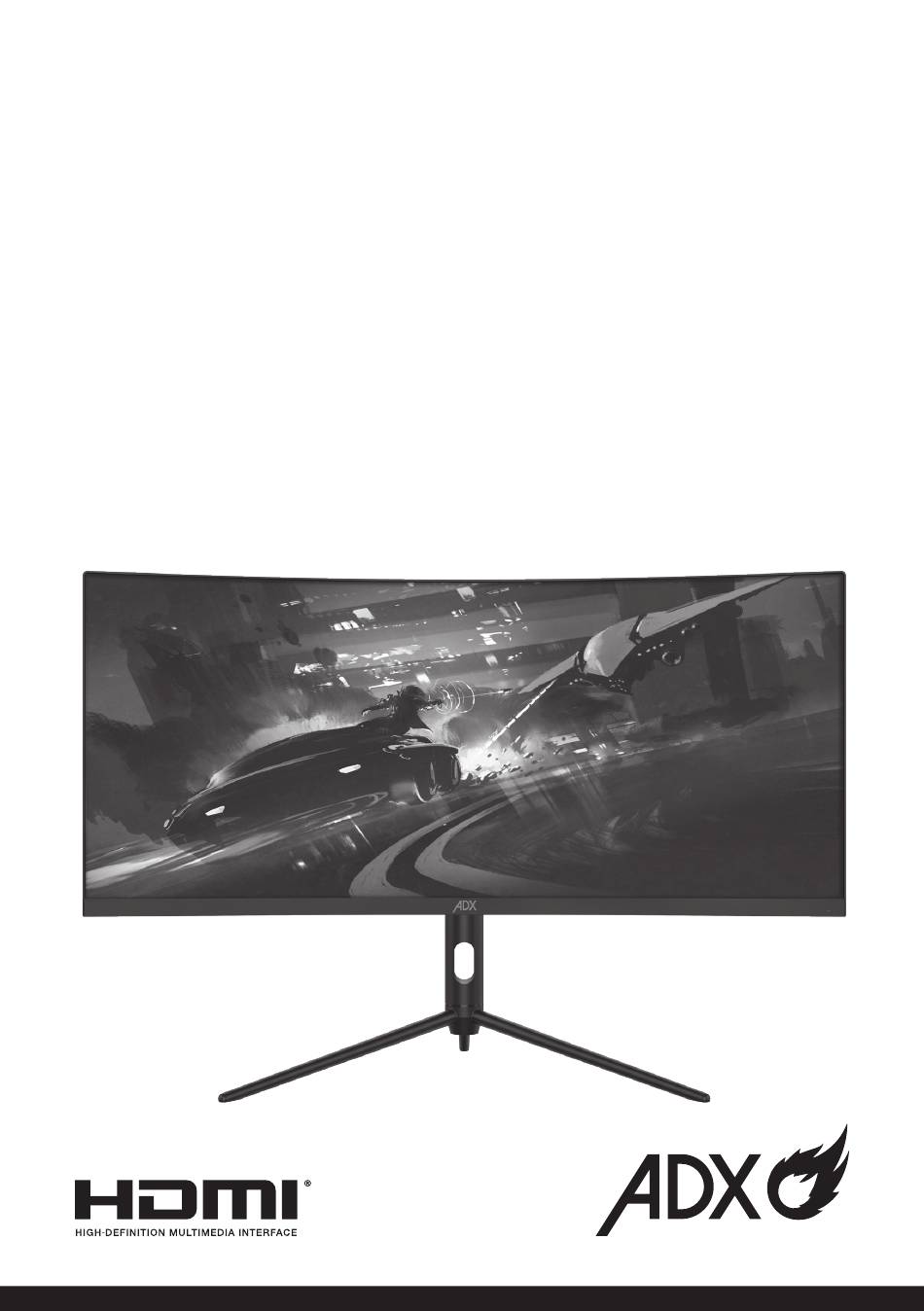

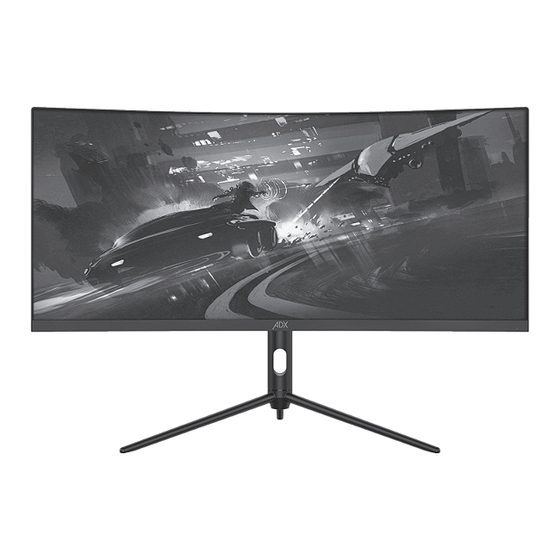

- Page 1 FIRESIGHT 30HC200 30" 200Hz CURVED WFHD GAMING MONITOR INSTRUCTION MANUAL A30A3M25...
-
Page 2: Table Of Contents
Contents Safety Warnings ............................. 3 Unpacking .............................. 5 Product Overview ..........................6 Front View .....................................6 Rear View ....................................6 Connections ............................7 HDMI Connection ................................7 DP Cable Connection ...............................7 AUDIO Connection ................................8 Using Earphones ................................8 Connecting to Mains Supply ............................9 Installation ............................10 Assembling with the Base Stand ..........................10 Adjusting angle ................................12 Adjusting Height ................................12... -
Page 3: Safety Warnings
Safety Warnings mount bracket when attaching the monitor to • Read all the instructions carefully before using the bracket. See your monitor instructions for the unit and keep them for future reference. screw type. • Retain the manual. If you pass the unit onto a •... - Page 4 other devices or moving the unit. is that displaying the same image for a long time may cause a permanent after-image to • Unplug the unit from the mains socket during remain on the screen. This is called screen a lightning storm and long inactivity periods burn.
-
Page 5: Unpacking
Thank you for purchasing your new product. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. -
Page 6: Product Overview
Product Overview Front View 1. Screen Display 2. Indicator • Light up blue while power on. • Light up red if no signal is detected. Rear View HDMI2 HDMI 1 HDMI 2 3 4 5 6 7 1. Control Stick 5. -
Page 7: Connections
Connections HDMI Connection Use the HDMI cable (not included) to connect the HDMI 1 or HDMI 2 socket of the unit to the HDMI OUT socket of your PC (not included). Rear View of Main Unit (not included) HDMI 2 HDMI2 HDMI 1 HDMI Cable... -
Page 8: Audio Connection
AUDIO Connection Use an audio cable (not included) to connect the AUDIO socket of the main unit and an AUDIO IN socket of an audio device (e.g. speaker; not included). Rear View of Main Unit HDMI 2 HDMI2 HDMI 1 Audio device (not included) Audio Cable... -
Page 9: Connecting To Mains Supply
Connecting to Mains Supply 1. This unit operates with a mains adapter and cable (included). 2. Connecting the unit to any other power source may damage the unit. Unwind the mains cable and mains adapter to their full length. Connect the end of the cable of the mains adpater to the Power socket of the unit, and then connect the end of the mains cable to the mains adapter. -
Page 10: Installation
Installation Assembling with the Base Stand 1. Take out the unit with the foam. Gently place it on a flat surface. Remove the upper foam cover. Take out the monitor from the film bag, and then place it onto the lower foam cover Upper foam cover Lower foam cover... - Page 11 3. Install the assembled base stand with the main unit. Slide the stand into the back of the unit until you hear a “click” sound. Make sure that the stand is securely installed before you lift up or move the unit. 4.
-
Page 12: Adjusting Angle
Adjusting angle You may adjust the angle of the screen for a comfortable viewing experience. The angle of the screen can be adjusted forwards or backwards from -5° to 20°, or swiveled from side to side between -20° to 20°. -5°... -
Page 13: Wall Mounting
Wall Mounting 1. Take out the unit with the foam. Gently place it on a flat surface. 2. Remove the upper foam cover. Take out the monitor from the film bag, and then place it onto the lower foam cover Lower foam cover 3. - Page 14 4. Install the unit onto the wall with the wall stud (not included), and then mount it onto the wall. Wall Stud (not included) Mount Stud (42 mm) (installed) Mount Stud (31 mm) Screw Washer (installed) The mounting hole distance of the mount for the unit is 75 × 75 mm. •...
-
Page 15: Operation
Operation Switching On/Off Press the control stick to switch on the unit. The display will show the ADX logo. • • Press the control stick again to switch off the unit. • Unplug the mains plug and adapter from the mains socket to switch off the unit completely. -
Page 16: General Settings
General Settings 1. Slide the control stick to the right to enter the General 200hz 1080 Settings menu. 2. Slide the control stick upwards/downwards to select the following options 3. Slide the control stick to the right to confirm your settings. 4. - Page 17 Colour Settings Warm Off/On Natural Off/On Cool Off/On User1 Off/On User2 Off/On User3 Off/On 0-100(R/G/B/C/M/Y) Saturation 0-100(R/G/B/C/M/Y) PIP/PBP PIP/PBP Mode Off/PIP Mode/PBP 2Win 1:1 Sub-Signal Source DP1/DP2/HDMI1/HDMI2 Auto Source Auto/DP1/DP2/HDMI1/HDMI2 PIP Position Top Right/Top Left/Bottom Right/ Bottom Left PIP Size Small/Medium/Large Window Swap Off/On...
-
Page 18: Virtual Response Time
OSD Lock setting Once the OSD Lock is set ON, the on screen • display will be locked after exiting from the General Setting menu. The OSD lock indicator will show if you press or slide the control stick. • To unlock, press the control stick, then slide it to the right and hold for about 5 seconds to OSD Lock ON... -
Page 19: Hints And Tips
Hints and Tips The following table contains various hints and tips to get the best performance from your monitor. If you require additional assistance: • For UK, please call our UK Call Centre on 0344 561 1234. • For Ireland, please call our Ireland Call Centre on 0818 810575. Problem Solution No image on screen... -
Page 20: Specifications
Specifications Brand Model A30A3M25 21:9 Aspect Ratio ≤178°(H) / ≤178°(V) Viewing Angle 0.2697 (H) × 0.2697 (V) mm Pixel Pitch 3000:1 (TYP) Contrast Ratio 16.7M Colours 2560 × 1080 Screen Resolution (Horizontal × Vertical) (pixel) 200 Hz Maximum Refresh Rate 4.0A Power Input approx. - Page 21 On mode power demand in Standard Dynamic Range (SDR) 25 W 0.3 W Off mode, power demand, if applicable 0.4 W Standby mode power demand, if applicable Monitor Electronic display category 20.1 dm Visible screen area Panel technology used Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market) (Years) Minimum guaranteed availability of spare parts (from the...
