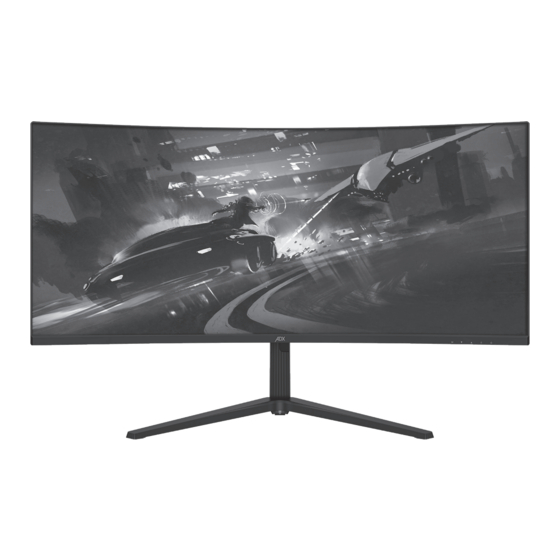

- Page 1 FIRESIGHT 34QC165 34" 165Hz CURVED WQHD GAMING MONITOR INSTRUCTION MANUAL A34GSR23...
-
Page 2: Table Of Contents
Contents Safety Warnings ............................. 3 Unpacking .............................. 5 Product Overview ..........................6 Front View .....................................6 Rear View ....................................6 Connections ............................7 HDMI Connection ................................7 DP Cable Connection ...............................7 AUDIO Connection ................................8 Using Earphones ................................8 Connecting to the Mains Supply..........................9 Installation ............................10 Assembling with the Base Stand ..........................10 Adjusting the angle ...............................12 Adjusting height ................................12... -
Page 3: Safety Warnings
Safety Warnings mount bracket when attaching the monitor to • Read all the instructions carefully before using the bracket. See your monitor instructions for the unit and keep them for future reference. screw type. • Retain the manual. If you pass the unit onto a •... - Page 4 other devices or moving the unit. • To prevent screen burn if viewing any of the above for long periods of time, reduce • Unplug the unit from the mains socket during contrast and brightness when viewing. a lightning storm and long inactivity periods Once burn-in occurs it will never disappear (going on holiday).
-
Page 5: Unpacking
Thank you for purchasing your new product. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. -
Page 6: Product Overview
Product Overview Front View 3 4 5 6 7 1. Screen Display Down Button 2. Indicator Up Button • Light up Blue while power on. 6. E Button • Flash in blue if no video source or Press to enter input source menu. voltage is low. -
Page 7: Connections
Connections HDMI Connection Use the HDMI cable (not included) to connect the HDMI1 or HDMI2 socket of the unit to the HDMI OUT socket of your PC (not included). AC IN HDMI2 HDMI 1 AUDIO HDMI Cable (not included) PC (not included) DP Cable Connection Use the DP cable to connect the DP1 or DP2 socket of the unit to the DP OUT socket of your PC (not included). -
Page 8: Audio Connection
AUDIO Connection Use an audio cable (not included) to connect the AUDIO socket of the main unit and an AUDIO IN socket of an audio device (e.g. speaker; not included). AC IN HDMI2 HDMI 1 AUDIO Audio device (not included) Audio Cable (not included) Using Earphones... -
Page 9: Connecting To The Mains Supply
Connecting to the Mains Supply 1. This unit operates with a mains cable (included). 2. Connecting the unit to any other power source may damage to the unit. Unwind the mains cable to its full length. Connect the end of the cable to the AC~ socket of the unit and then connect the mains cable to the mains socket. -
Page 10: Installation
Installation Assembling with the Base Stand 1. After unpacking, take out the unit with the foam. Gently place it on a flat surface. 2. Place the stand on the base. Secure them by spinning screw at the bottom of the base. 3. - Page 11 4. Stand the main unit in upright position. During standing of the whole monitor, do not press the liquid crystal screen with hand to avoid damage to the screen.
-
Page 12: Adjusting The Angle
Adjusting angle You may adjust the angle of the screen for a comfortable viewing experience. The angle of the screen can be adjusted forwards or backwards from -5° to 20°, or swiveled from side to side between -20° to 20°. -5°... -
Page 13: Wall Mounting
Wall Mounting 1. Tighten the VESA connector (UP) and VESA connector (DOWN) onto the rear of the main unit with the 4 provided M4 screws. 2. Install the unit onto the wall with the mount stud (not included), and then mount it onto the wall. -
Page 14: Operation
Operation Switching On/Off Press and hold Power button to switch on the unit. The display will show the ADX • logo. • Press and hold Power button again to switch off the unit. • Unplug the mains adapter from the mains socket to switch off the unit completely. - Page 15 Game Settings Standard Mode Off/On RTS/RPG Mode Off/On FPS Arena Mode Off/On MOBA Arena Mode Off/On FreeSync Premium Off/On Shadow Balance 0-100 Response Time Off/Normal/Fast/Ultrafast Refresh Rate Off/On Game Crosshair Off/On Game Time Off/On Dynamic Brightness Off/Normal/Expert/Elaboration Of/HDR Standard Virtual Response Time Off/On Ambient Lighting Off/On...
-
Page 16: Virtual Response Time
OSD Settings Language (N/A) English OSD Time Out 5-60 OSD H-Position 0-100 OSD V-Position 0-100 OSD Transparency Hotkey1 Setting Brightness/Contrast/Volume/ Mute/Shadow Balance/Game Hotkey2 Setting Crosshair/Refresh Rate/Game Hotkey3 Setting Time/Contextual Model/ PIP/PBP Mode/Input Signal/ Dynamic Brightness OSD Rotation Normal/90/180/270 OSD Lock Off/On Other Settings Input Source... -
Page 17: Maintenance
Maintenance Cleaning the Unit Ensure the unit is fully unplugged from the mains socket before cleaning. • Use a soft dry cloth to wipe away the dust from the screen and surfaces. • If the surfaces are extremely dirty, clean the monitor with a cloth which has been dipped in a slightly soapy water. -
Page 18: Specifications
Specifications Brand Model A34GSR23 86.36 / 34 Screen diagonal (cm / inches) 58W (TYP) Power Consumption 30 kWh/1000h Average Energy Consumption 350 cd/m Brightness 21:9 Aspect Ratio 3440 × 1440 Screen Resolution (Horizontal × Vertical) (pixel) 34 inch LED backlit LCD panel Panel System ≤178°(H) / ≤178°(V) Viewing Angle... - Page 19 Energy Efficiency Class for Standard Dynamic Range (SDR) On mode power demand in Standard Dynamic Range (SDR) 30.2 W Energy Efficiency Class for High Dynamic Range (HDR) On mode power demand in HDR, if implemented 54.5W 0.2 W Off mode, power demand, if applicable 0.2 W Standby mode power demand, if applicable Monitor...
