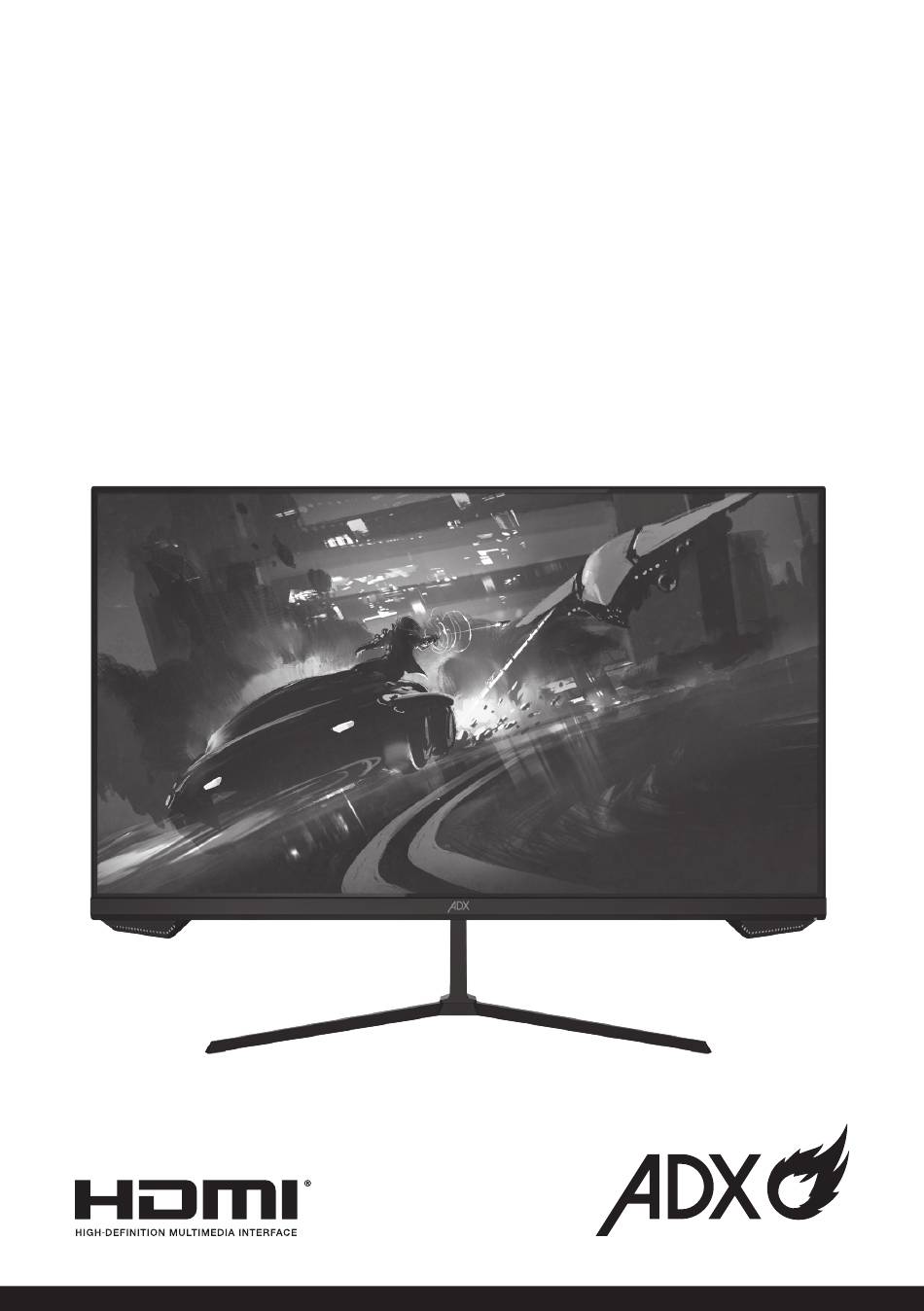

- Page 1 FIRESIGHT 25HF180 24.5" 180Hz FHD GAMING MONITOR INSTRUCTION MANUAL A25H2G25...
-
Page 2: Table Of Contents
Contents Safety Warnings ............................. 3 Unpacking .............................. 5 Product Overview ..........................6 Front View .....................................6 Rear View ....................................6 Connections ............................7 HDMI Connection ................................7 DP Cable Connection ...............................7 AUDIO Connection ................................8 Using Earphones ................................8 Connecting to Mains Supply ............................9 Installation ............................10 Assembling with the Base Stand ..........................10 Adjusting angle ................................12 Wall Mounting .................................12... -
Page 3: Safety Warnings
Safety Warnings mount bracket when attaching the monitor to • Read all the instructions carefully before using the bracket. See your monitor instructions for the unit and keep them for future reference. screw type. • Retain the manual. If you pass the unit onto a •... - Page 4 other devices or moving the unit. is that displaying the same image for a long time may cause a permanent after-image to • Unplug the unit from the mains socket during remain on the screen. This is called screen a lightning storm and long inactivity periods burn.
-
Page 5: Unpacking
Thank you for purchasing your new product. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. -
Page 6: Product Overview
Product Overview Front View 1. Screen Display 2. Indicator Light up orange while power on. 3. Indicator • Light up blue while power on. • Light up red if no signal is detected. Rear View HDMI AUDIO HDMI AUDIO 1. ON/OFF Button/Control Stick 4. -
Page 7: Connections
Connections HDMI Connection Use the HDMI cable (not included) to connect the HDMI socket of the unit to the HDMI OUT socket of your PC (not included). HDMI Cable (not included) HDMI AUDIO Main Unit (not included) DP Cable Connection Use the DP cable to connect the DP socket of the unit to the DP OUT socket of your PC (not included). -
Page 8: Audio Connection
AUDIO Connection Use an audio cable (not included) to connect the AUDIO socket of the main unit and an AUDIO IN socket of an audio device (e.g. speaker; not included). HDMI AUDIO Audio device (not included) Audio Cable (not included) Using Earphones Turn down the volume from the source input before using the earphones (not included). -
Page 9: Connecting To Mains Supply
Connecting to Mains Supply 1. This unit operates with a mains adapter (included). 2. Connecting the unit to any other power source may damage the unit. Unwind the mains adapter to its full length. Connect the end of the cable to the DC socket of the unit and then connect the mains adapter to the mains socket. -
Page 10: Installation
Installation Assembling with the Base Stand 1. Take out the unit with the foam. Gently place it on a flat surface. Upper foam cover Lower foam cover 2. Remove the upper foam cover. Take out the monitor from the film bag, and then place it onto the lower foam cover. - Page 11 3. Install the stand stem onto the rear of the monitor unit. 4. Tighten it with the 2 screws. Screw KM4 (10 mm) 5. Install the base to the stem with 2 screws. Screw KM4 (14 mm) 6. Stand the main unit in upright position. During standing of the whole monitor, do not press the liquid crystal screen with hand to avoid damage to the screen.
-
Page 12: Adjusting Angle
Adjusting angle You may adjust the angle of the screen for a comfortable viewing experience. The angle of the screen can be adjusted forwards or backwards from -5° to 15°. +15° -5° Do not touch or press the screen area when adjusting the angle of the monitor. Wall Mounting 1. - Page 13 2. Remove the upper foam cover. Take out the monitor from the film bag, and then place it onto the lower foam cover. Lower foam cover 3. Tighten the wall mounting adapter onto the rear of the main unit with the 2 screws. Wall mounting adapter Screws...
- Page 14 4. Install the unit onto the wall with the mount stud (not included), and then mount it onto the wall. Wall Stud (not included) Screws Wall mounting Washer KM4 (9 mm) adapter The mounting hole distance of the mount for the unit is 75 × 75 mm. •...
-
Page 15: Operation
Operation Switching On/Off • Press the control stick to switch on the unit. The display will show the ADX logo. Brightness • Press the control stick to activate the control panel, and then slide the control stick downwards to Exit Guide... - Page 16 Picture Mode Standard Mode Off/On RTS/RPG Mode Off/On FPS Mode Off/On MOBA Arena Mode Off/On Movie Mode Off/On Reading Mode Off/On Night Mode Off/On Eye Care Mode Off/On Picture Settings Brightness 0-100 Contrast 0-100 Off/On Low Blue Light 0-100 Sharpness Gamma 1.8/2.0/2.2/2.4/2.6/S.curve Aspect Ratio...
- Page 17 Game+ Picture Enhancement Adaptive-Sync: Off/On Color Enhancement: Off/Level 1-10 CR Enhancement: Off/Level 1-5 Shadow Balance: 0-100 Night Vision Mode: Off/Level 1-2/Auto Level1-2 Super Resolution: Off/Level 1-3 Dynamic OD: Off/Level 1-3/Topspeed HDR: Off/HDR Standard/HDR Movie Virtual Response Time (MPRT): Off/On Reset Picutre Enhancement: Off/On Game Aid Refresh Rate: Off/On/Position(Top Right/Top Left/...
-
Page 18: Virtual Response Time
System Settings Language English OSD Time Out 5-100 OSD H-Position 0-100 OSD V-Position 0-100 OSD Transparency Hotkey1 Setting Brightness/Contrast/Volume/ Audio Mute/Shadow Balance/Game Hotkey2 Setting Crosshair/Refresh Rate/Game Time/ Color Enhancement/Night Vision Mode/Super Resolution/Adaptive- Sync/Picture Mode/HDR/Dynamic OD/ Input Signal OSD Lock Off/On Energy Saving Power LED: Off/Level 1/Level 2/Level 3 Power Saving: Off/Level 1/Level 2... -
Page 19: Maintenance
Maintenance Cleaning the Unit Ensure the unit is fully unplugged from the mains socket before cleaning. • Use a soft dry cloth to wipe away the dust from the screen and surfaces. • If the surfaces are extremely dirty, clean the monitor with a cloth which has been dipped in a slightly soapy water. -
Page 20: Specifications
Specifications Brand Model A25H2G25 16:9 Aspect Ratio ≤178°(H) / ≤178°(V) Viewing Angle 0.0944 (H) × 0.2802 (V) mm Pixel Pitch 1000:1 Contrast Ratio 16.7M Colours 1920 × 1080 Screen Resolution (Horizontal × Vertical) (pixel) 180 Hz Maximum Refresh Rate 3.0A Power Input approx. - Page 21 On mode power demand in Standard Dynamic Range (SDR) 19 W 0.3 W Off mode, power demand 0.4 W Standby mode power demand Monitor Electronic display category 16.5 dm Visible screen area Panel technology used Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market) (Years) Minimum guaranteed availability of spare parts (from the...
- Page 24 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0344 800 3456 (UK customers only). Calls charged at National Rate.
