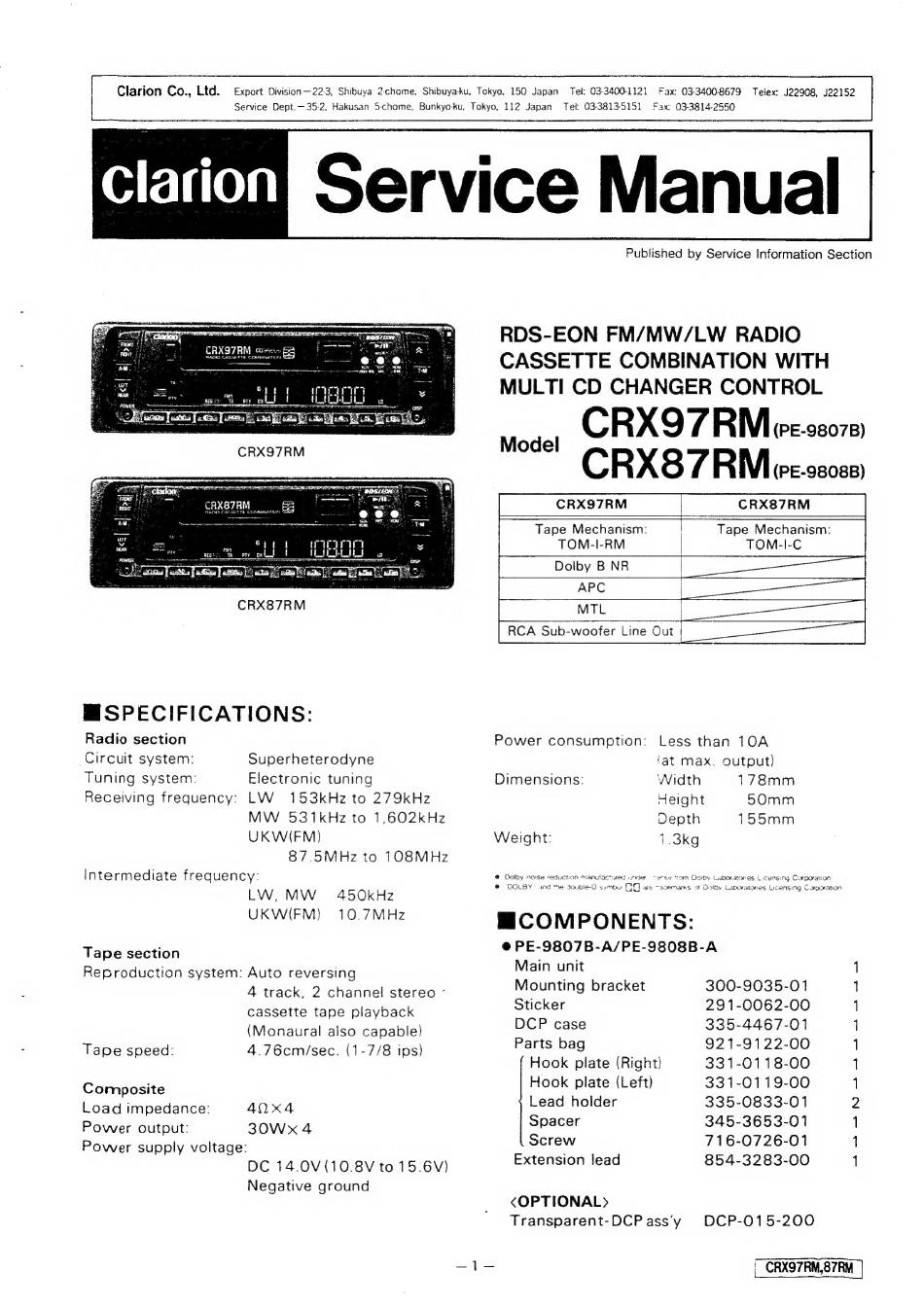

Clarion CRX87RM Service Manual

Clarion Co., Ltd. Export Division — 22-3, Shibuya 2-chome, Shibuya-ku, Tokyo, 150 Japan Tel: 03-3400-1121 Fax: 03-34008679 Telex: J22908, J22152
Service Dept. — 35-2, Hakusan 5-chome, Bunkyo-ku, Tokyo, 112 Japan Tel 03-3813-5151 fax: 03-3814-2550
CRX87RM
MSPECIFICATIONS:
Radio section
Circuit system: Superheterodyne
Tuning system: Electronic tuning
Receiving frequency: LW 153kHz to 279kHz
MW 531kHz to 1,602kHz
UKW(FM)
87.5MHz to 108MHz
Intermediate frequency:
LW, MW 450kHz
UKWIFM) 10.7MHz
Tape section
Reproduction system: Auto reversing
4 track, 2 channel stereo °
cassette tape playback
(Monaural also capable)
Tape speed: 4.76cm/sec. (1-7/8 ips)
Composite
Load impedance: 40x4
Power output: 30Wx 4
Power supply voltage:
DC 14.0V(10.8V to 15.6V)
Negative ground
Published by Service Information Section
RDS-EON FM/MW/LW RADIO
CASSETTE COMBINATION WITH
MULTI CD CHANGER CONTROL
M
CRX97RM CRX87RM
Tape Mechanism:
TOM-I-RM
Tape Mechanism:
TOM-I-C
Dolby B NR
APC
MTL
RCA Sub-woofer Line Out |
Power consumption: Less than 10A
'at max. output)
Dimensions: Width 178mm
Height 50mm
Depth 155mm
Weight: 1.3kg
6 OSGi seine sohuiecp yaes BG we Caereaary ar care Ueroie Copan!
MCOMPONENTS:
@ PE-9807B-A/PE-9808B-A
Main unit 1
Mounting bracket 300-9035-01 1
Sticker 291-0062-00 1
DCP case 335-4467-01 1
Parts bag 921-9122-00 1
Hook plate (Right) 331-0118-00 1
Hook plate (Left) 331-0119-00 1
Lead holder 335-0833-01 2
Spacer 345-3653-01 1
Screw 716-0726-01 1
Extension lead 854-3283-00 1
<OPTIONAL>
Transparent-DCPass'y DCP-015-200
: CRX97RM,87RM
