Summary of Contents for Clarion CD037RMP

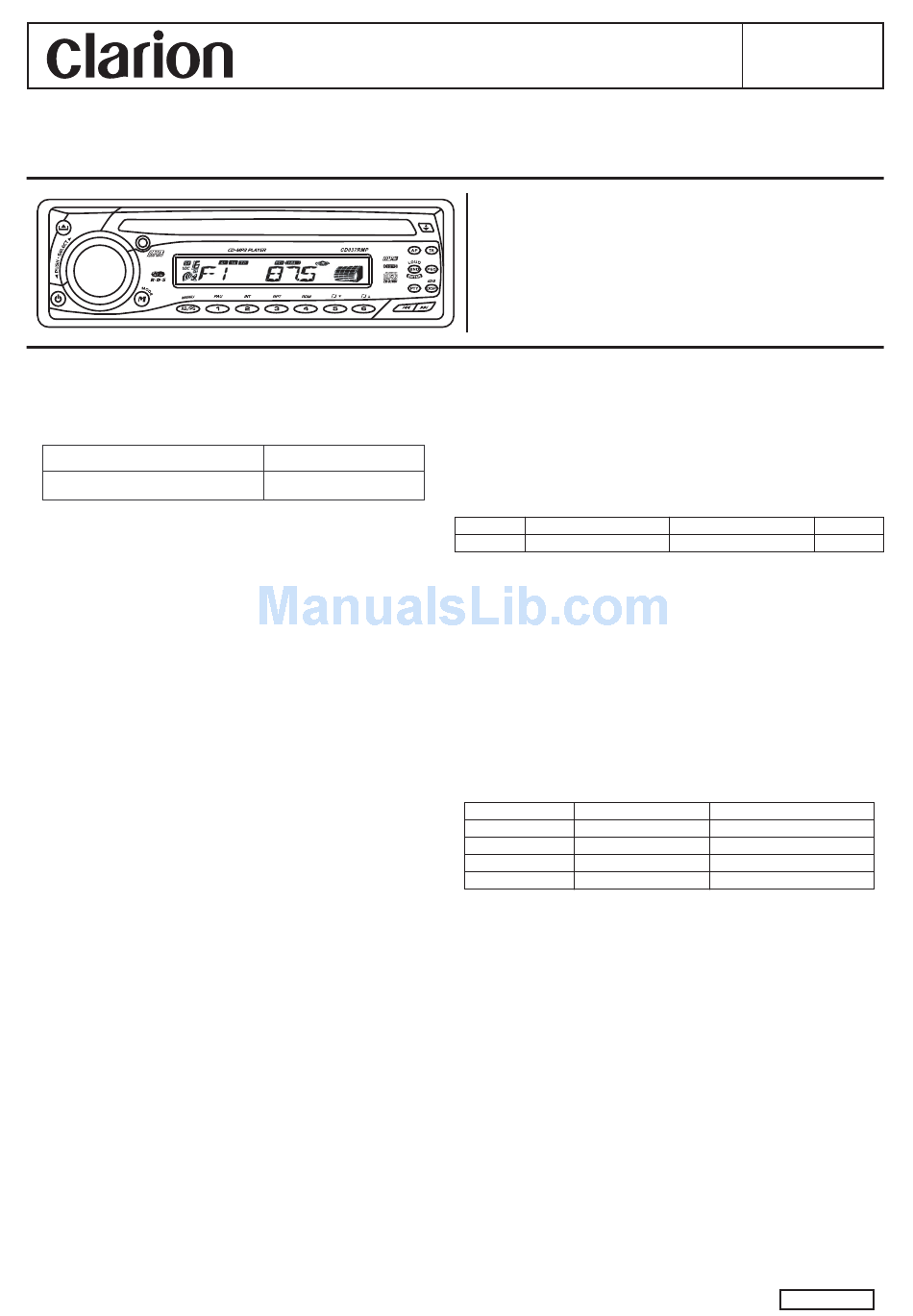

Page 1

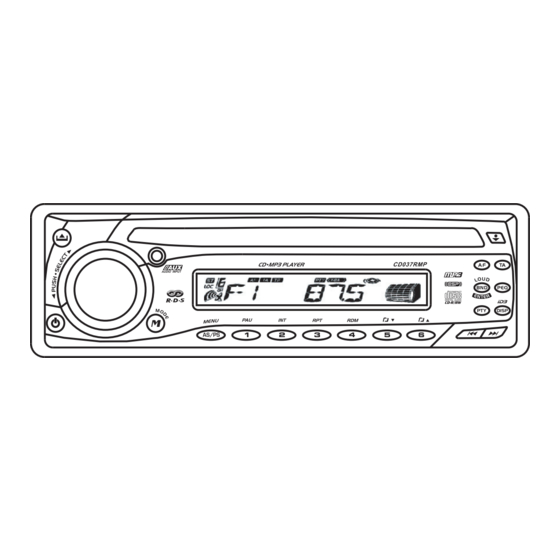

Xiamen Clarion Electrical Enterprise Co., Ltd Published by Service Dept. 8/F., Xiamen Mail Processing Centre, No.275 Lujiang Road, Xiamen, China Tel:+86-592-2389080 Fax:+86-592-2389089 298-6400-37-02 (GEN. 2009) Clarion Co., Ltd. 50 Kamitoda, Toda-shi, Saitama 335-8511 Japan Printed in P.R.C. Service Manual CD/USB/MP3 Receiver...
Page 2
7.2 MHz X-TAL OUTPUT REGC Regulated Voltage output Open Ground. Ground. VDD 5V DC VDD 5V DC TOUCH_ Data in/out from/to Touch Sensor(DT8800) Open Direct Connect with Pin50 DRAIN TOUCH_ Control output to DT8800. Open ALBEN Direct Connect with Pin49 DRAIN CD037RMP...
Page 3
A zener diode (5.6V) to GND is recommendable to protect from a outside surge. Add series 220ohm to protect port. TOUCH_ Clock in/out from/to Touch Sensor(DT8800) RDS DATA RDS Data Input in RDS Model. Pull up {RDS CLK} RDS Clock Input Pull Down CD037RMP...
Page 4
MP3_CK 1. MP3 Communication CLK output. /DIO IN10 2. Option diode input 10. MP3_DI MP3 Communication data output. Needed pull up 220ohm from CDP powered 5V. MP3_DO 1. S-CDP/MP3 Communication data output. /DIO IN9 2. Option diode input 9. CD037RMP...
Page 5
2. FUNC OUT (FUNC=HIGH) /DIO IN6 3. Option diode input 6. SENS1_O 1. For the optical loading S/W, Connect to the Anode of loading sens LED of CDP with TR for AUTO POWER ON /DIO IN5 2. Option Diode input 5. CD037RMP...
