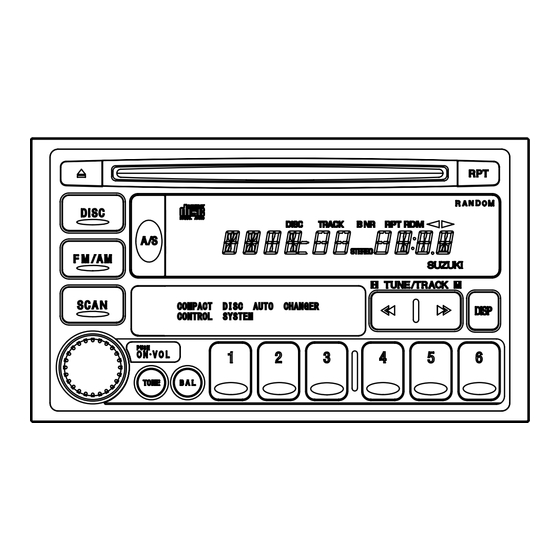

COMPACT DISC AUTO CHANGER
CONTROL SYSTEM
PS-2375D
■
SPECIFICATIONS
Radio section
Tuning system:
PLL Frequency synthesizer system
Receive range:
PS-2375D,I
AM
FM
PS-2376D,I
AM
FM
PS-2377D,I
AM
FM
Intermediate frequency:
AM
FM
Quieting sensitivity:
AM
FM
Auto tuning stop sensitivity:
AM
FM
Clarion Co., Ltd.
Export Division - 22-3, Shibuya 2-chome, Shibuyaku, Tokyo, 150-8335 Japan
Service Dept.- 50 kamitoda,Toda-shi,Saitama,335-8511 Japan Tel: 048-443-1111 FAX:048-433-6996
530kHz to 1,710kHz
87.75MHz to 107.9MHz
531kHz to 1,602kHz
87.5MHz to 108.0MHz
531kHz to 1,629kHz
87.5MHz to 108.0MHz
±
450
3kHz
±
10.7
0.2MHz
μ
Less than 34dB
(at 20dB S/N)
μ
Less than 15dB
(at 30dB S/N)
±
μ
32
6dB
±
μ
26
6dB
- 1 -
Tel: 03-3400-1121
Service Manual
SUZUKI Automobile Genuine
AM/FM Stereo CD Deck
PS-2375D
Model
(Genuine No.39101-65D80-000)
PS-2375I
Model
(Genuine No.39101-69G80-000)
PS-2376D
Model
(Genuine No.39101-65D70-000)
PS-2376I
Model
(Genuine No.39101-69G70-000)
PS-2377D
Model
(Genuine No.39101-65D60-000)
PS-2377I
Model
(Genuine No.39101-69G60-000)
Separation:
CD section
Disc:
Separation:
S/N ratio:
Distortion:
General
Load impedance:
Power output:
Power supply voltage: DC13.2V(10.8V to 15.6V)
Back-up consumption: Less than 4mA
Dimensions(mm):
Weight:
※
Specifications and design are subject to change without
notice for further improvement.
Published by Service Dept.
298-5854-00 Aug.2000 B
Printed in Japan
FM
More than 20dB(at 1kHz)
Compact disc(8cm/12cm)
More than 55dB
More than 70dB
Less than 1.0%(at 20kHz LPF)
Ω
4
×
16W
4(MAX)
Negative ground
×
×
186(W)
106(H)
156.5(D)
PS-2375D/2376D/2377D:
2.13kg
PS-2375I/2376I/2377I:
2.15kg
PS-2375D,I
PS-2376D,I
PS-2377D,I
