INSTALLATION INSTRUCTIONS

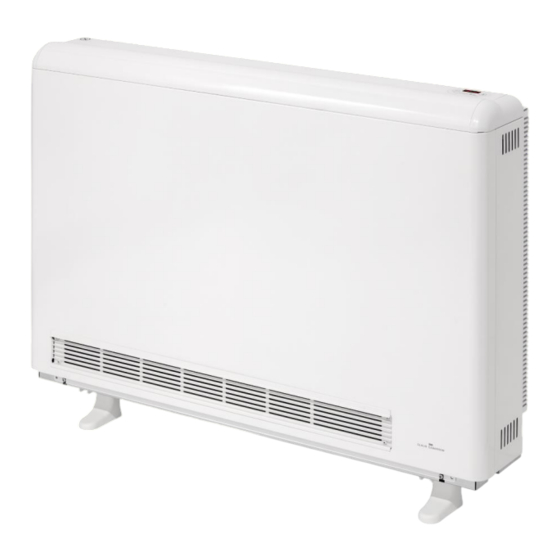

SMART STORAGE HEATER
ECOMBI HHR
MODELS
ECOHHR10
ECOHHR20
ECOHHR30
ECOHHR40
Please read these instructions before installing or using this appliance for the first time. These instructions must be followed for the safe installation of the unit. Any problem,
fault or damage caused by the non-observance of these instructions will not be covered under the manufacturer's warranty. This manual should be retained with the appliance
by the user for future reference.
Advertisement
Table of Contents
Related Manuals for Elnur Gabarron ECOHHR20 ECOHHR30
Summary of Contents for Elnur Gabarron ECOHHR20 ECOHHR30
- Page 1 INSTALLATION INSTRUCTIONS SMART STORAGE HEATER ECOMBI HHR MODELS ECOHHR10 ECOHHR20 ECOHHR30 ECOHHR40 Please read these instructions before installing or using this appliance for the first time. These instructions must be followed for the safe installation of the unit. Any problem, fault or damage caused by the non-observance of these instructions will not be covered under the manufacturer’s warranty.
- Page 2 Installation Instructions ECOHHR10 ECOHHR20 ECOHHR30 ECOHHR40 IMPORTANT INFORMATION Balancing element 1100 output • Please read all the instructions carefully before Storage heater 1742 2613 3484 element rating installing or using the heater for the first time and Charge period retain for future use. Charging (7h) 12.2 18.3...
- Page 3 Installation Instructions Information symbols used within this manual are as follows: WARNING This indication shows the possibility of causing death from electric shock. WARNING This indication shows the possibility of causing death or serious injury. CAUTION This indication shows the possibility of causing injury or damage to properties only. This symbol is for useful information.
- Page 4 Installation Instructions In order to achieve a correct installation of this device, follow these steps: 1. Choose the right location to install the Ecombi HHR. The minimum clearances must be respected from the appliance to any combustible material such as furniture or curtains. To reduce the risk of fire, do not store or use petals or other flammable liquids and vapours in the vicinity of the heater.
- Page 5 Installation Instructions 5. Fix the side fixing plates to the metal casing by using the appropriate screws. The supply cables must be fitted but not wired to the storage heater before placing the heater to the wall. Remove the white screws located in the top of ECOHHR, and place the ECOHHR in the selected installation area.
- Page 6 Installation Instructions 8. Unscrew the inner panel and remove it. WARNING Steel edges can cut. CAUTION In the interior part of this inner panel there is a very delicate MICROTHERM insulation panel. It has to be handled with extreme care. AVOID TOUCHING OR BENDING IT. 9.
- Page 7 Installation Instructions 12. Place the third row of storage bricks with the flat side facing out. 13. Refit the inner front panel. If the bricks have been fitted correctly you will have no difficulty in refitting the panel. Make sure the bottom edge of the inner panel is inside the front lip of the heater. Please see below: 14.
-
Page 8: Main Components List
Installation Instructions RELOCATION WARNING: Relocation to another location must be carried out by an experienced technician. If during reinstallation the thermal insulation shows any sign of damage, it must be removed and replaced by an identical part. MANUALLY RESET TEMPERATURE LIMITER This heater employs a manually reset temperature limiter (see Safety Cut-out in the connection diagram). -
Page 9: Connection And Disconnection
Installation Instructions Connection and Disconnection Each ECOHHR storage heater has its own power switch and is located on the right side panel. The power switch is used to turn the heater ON and OFF. If this switch is turned OFF then the storage heater will not take a charge when the off-peak supply is on and will not give out any heat. -
Page 10: General Settings
Installation Instructions General Settings The General settings MUST be configured after installation by the installer to ensure correct operation. It is important to configure the off peak times correctly. The HHR allows you to configure two separate off peak charge periods; Period 1 via P01 & P02 and Period 2 via P03 &... -
Page 11: Factory Reset
Installation Instructions Factory Reset Factory reset allows you to reset the heater back to its factory default settings. To Reset, turn ON the heater via the switch at the right side of the heater while holding down the clock buttons at the same time. - Page 12 Installation Instructions Connection Diagram – ECOHHR10 Connection Diagram – ECOHHR20...
- Page 13 Installation Instructions Connection Diagram – ECOHHR30...
- Page 14 Installation Instructions Connection Diagram – ECOHHR40 Single Power Supply Connection The Elnur ECOHHR is capable of utilising a single economy/24hr supply by using the supplied link cables: 1. Use the 2 black link cables provided in the plastic bag to jumper the Lines and Neutrals of the Restricted and Unrestricted side of the connection block in the storage heater.
-
Page 15: Product Fiche
Installation Instructions Product Fiche MODEL(S): GABARRON ECOHHR10, ECOHHR20, ECOHHR30, ECOHHR40 Value Item Symbol Unit ECOHHR10 ECOHHR20 ECOHHR30 ECOHHR40 Heat Output Nominal heat output Minimum heat output N.A. N.A. N.A. N.A. Maximum continuous heat max,c output Auxiliary electricity consumption At nominal heat output 0.000 0.000 0.000... - Page 16 ELNUR UK Ltd. Unit 1, Brown Street North Leigh, Lancashire. WN7 1BU Telephone: +44(0)1942 670119 www.elnur.co.uk info@elnur.co.uk As a part of the policy of continuous product improvement Elnur UK Ltd. reserves the right to alter specifications without notice. 15192515 R14...
