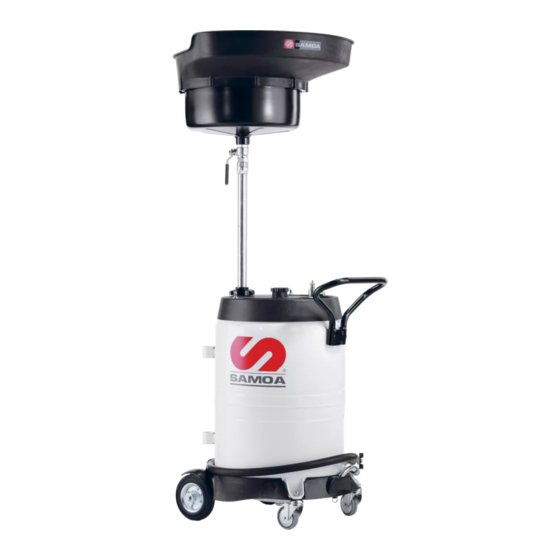

MOBILE WASTE OIL SUCTION DRAINER – DRAINER 100
RECUPERADOR DE ACEITE USADO MÓVIL – DRAINER 100
RÉCUPÉRATEUR MOBILE D'HUILE USÉE – DRAINER 100
ALTÖLABSAUG- UND SAMMELGERÄT – DRAINER 100
Parts and technical service guide
Part no. / Cód. / Réf. / Art. Nr.:
Guía de servicio técnico y recambio
372 000
Guide d'instructions et pièces de rechange
Technische Bedienungsanleitung
R.03/05 837 803
1
Samoa Industrial, S.A. · Box 103 Alto Pumarín · 33211 Gijón - Asturias Spain · Tel.: +34 985 381 488 · Fax.: + 34 985 384 163
Advertisement
Related Manuals for Samoa 372 000
Summarization of Contents
Assembly
Fasten Handle
Fasten the handle with screws.
Place Probe Holder
Place the probe holder into its support.
Assemble Tube and Funnel
Assemble the tube with the funnel and fix the assembly on the tank.
Mount Inspection Chamber
Mount the inspection chamber, tightening it well with the flange.
Close Valves
Close the valve of the suction hose, the discharge outlet valve and the funnel ball valve.
Operation
Vacuum Container/Chamber
For vacuum in container and chamber, open the inspection chamber valve.
Connect Compressed Air
Connect the compressed air to the vacuum pump. When the vacuum meter reaches the middle of the green zone...
Suction Collection
Remove the level indicator from the oil dipstick and introduce a suitable probe or connector.
Connect Suction Hose
Take off the cap from the suction hose and connect the hose to the probe or connector.
Transfer Oil from Chamber
Once the suction is finished, close the valve on the suction hose. To transfer the oil in the inspection chamber to the container...
Gravity Collection
Place the unit under the vehicle, adjust the funnel to a suitable height and open the funnel ball valve.
Open Breathing Valve
Open the breathing valve, unscrew the crank case plug and let the waste oil pour out into the funnel...
Close Funnel and Suction Valves
Close the funnel ball valve (13a) and the valve of the suction hose (13b).
Connect Discharge Hose
Remove the cap from the outlet tube of the discharge hose and place the hose into a waste oil storage tank or drum.
Pressure Discharge
Pressurize Container
Connect compressed air by means of a tire inflator to the charge valve, pressurize the container to 0,5 bar...
