Summary of Contents for Globe VS2C

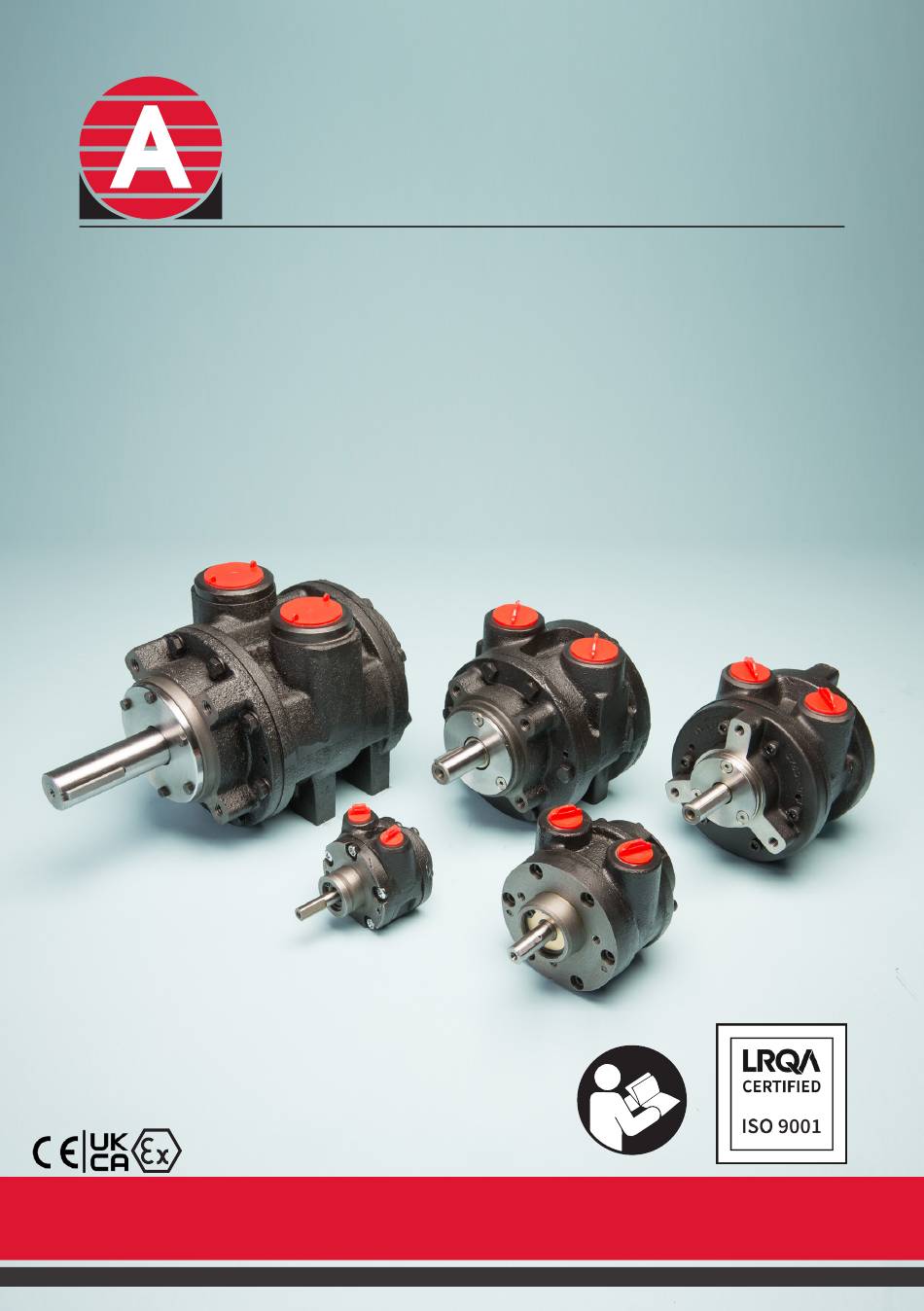

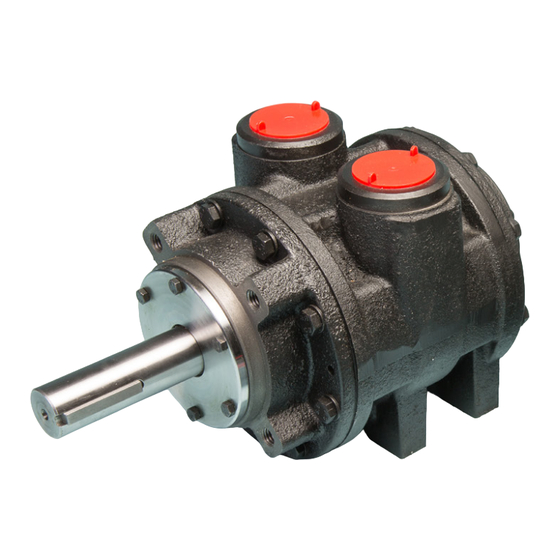

- Page 1 GLOBE AIRMOTORS B.V. GLOBE Airmotors | Boerhaaveweg 9-1 1 | NL - 2408 AD Alphen a/d Rijn | Tel +31 172 426 608 | info@globe-benelux.nl Manual GLOBE Vane Air Motor VA2J&X | VS2C | VA2C ATEX certified II 2G Ex h IIC T4 Gb II 2D Ex h IIIC T135°C Db...
-
Page 2: Table Of Contents
Options & Accessories IIIC Dust group IIIC Temperature class T4 T135°C Maximum surface temperature 135°C Equipment protection level Gb Equipment protection level Db Ambient temperature range 2 · GLOBE AIRMOTORS MANUAL | VA2J&X | VS2C | VA2C | ATEX certified... -
Page 3: Warranty
Warranty The GLOBE air motor is designed to operate without any problems. This is only guaranteed if the regulations with regards to installation, operation, maintenance and repair are observed. Problems occurring during the guarantee period are corrected in accordance to GLOBE Airmotors BV guarantee conditions. -
Page 4: Checklist To Comply To Atex
Before use clean only with damp cloth. Avoid electrostatic charging mechanisms stronger than manual rubbing. Do not subject the equipment to external conditions that could cause build-up of electrostatic charges. 4 · GLOBE AIRMOTORS MANUAL | VA2J&X | VS2C | VA2C | ATEX certified... -
Page 5: Installation
It is not allowed for the shaft to point in any angle upwards. In order to guarantee the maximum performance and service life of these motors it is essential that the following points are strictly observed and obeyed. GLOBE AIRMOTORS MANUAL | VA2J&X | VS2C | VA2C | ATEX certified · 5... -
Page 6: Mounting To Construction
It is also essential that an FRL unit is incorporated into the airline to prevent motor malfunctions. Our silencers and FRL units are designed specifically for our motors to ensure maximum service life. 6 · GLOBE AIRMOTORS MANUAL | VA2J&X | VS2C | VA2C | ATEX certified... -
Page 7: Air Supply
4 for solid particles and ISO 8473- 1:2010 class 3 for water. Air supply Air motor Incoming airline Silencer Shutoff valve Filter (64 micron) Pressure regulator Lubricator Air flow regulation (optional) GLOBE AIRMOTORS MANUAL | VA2J&X | VS2C | VA2C | ATEX certified · 7... - Page 8 Use only belts with <100 electrical leakage resistance to prevent static electrical problems. 8 · GLOBE AIRMOTORS MANUAL | VA2J&X | VS2C | VA2C | ATEX certified...
-
Page 9: Operation
Do not run the air motor at high speeds with no load. STOP This will result in excessive internal heat that may cause motor damage. GLOBE AIRMOTORS MANUAL | VA2J&X | VS2C | VA2C | ATEX certified · 9... - Page 10 It is also essential that an FRL unit is incorporated into the airline to prevent motor malfunctions. Our silencers and FRL units are designed specifically for our motors to ensure maximum service life. 10 · GLOBE AIRMOTORS MANUAL | VA2J&X | VS2C | VA2C | ATEX certified...
-
Page 11: Performance Regulation 1
Rotation speed Pressure regulation Air flow regulation(optional) For optimal power and speed control we advise to use the combination of pressure and air flow regulation. GLOBE AIRMOTORS MANUAL | VA2J&X | VS2C | VA2C | ATEX certified · 1 1... -
Page 12: Maintenance
To comply according to ATEX please change the bearings of the motor according to the table below: VA2J&X VS2C VA2C 1.900 Running hours 4.500 Running hours 4.500 Running hours 12 · GLOBE AIRMOTORS MANUAL | VA2J&X | VS2C | VA2C | ATEX certified... -
Page 13: Summary Of The Hazards With Protective Means
The motor shall be bonded together to other metal parts and Electrostatic charging to earth with a earth resistance of maximum 1MΩ. Electrostatic charging Before use clean only with damp cloth. GLOBE AIRMOTORS MANUAL | VA2J&X | VS2C | VA2C | ATEX certified · 13... -
Page 14: Rebuild Instructions
Use only genuine replacement blades as these have a special profile to give correct ejection and contact with the rotor body. Always ensure adequate lubrication. Never run motors completely off load at high speed. 14 · GLOBE AIRMOTORS MANUAL | VA2J&X | VS2C | VA2C | ATEX certified... -
Page 15: Trouble Shooting
A GLOBE Silencer is neccessairy for optimal reach of maximum power. Not installing a GLOBE Silencer will increase the risk of hearing damage, motor malfunctions or loss of power. It is also essential that an FRL unit is incorporated into the airline to prevent motor malfunctions. -
Page 16: Dimensions, Performances & Spare Parts
Axial loads should be kept to a minimum » Mass 3.30 kg Note: With air inlet at port ‘A’, rotation is clockwise looking on shaft. For opposite rotation reverse ports. 16 · GLOBE AIRMOTORS MANUAL | VA2J&X | VS2C | VA2C | ATEX certified... -
Page 17: Exploded View With Spare Parts List
807-027 Bearing 807-028 Bearing 720-023 Foot (VA2J only) 806-032 Dowel pin 809-007 Screw 809-007P Screw 802-001 Screw 802-01 1 Screw (VA2J only) 729-910 V2 Seal Kit GLOBE AIRMOTORS MANUAL | VA2J&X | VS2C | VA2C | ATEX certified · 17... -
Page 18: Main Dimensions Va2C
Max. Overhung Force on shaft 400 N (90 lbf.) Note: With air inlet at port ‘A’, rotation is clockwise looking on shaft. For opposite rotation reverse ports. 18 · GLOBE AIRMOTORS MANUAL | VA2J&X | VS2C | VA2C | ATEX certified... -
Page 19: Exploded View With Spare Parts List
720-100 Seal backing ring 804-052 Circlip 729-910 806-024 Dowel pin 807-025 Bearing 807-028 Bearing 81 1-020 809-007 Screw 809-007P Screw 802-001 Screw 729-910 V2 Seal Kit GLOBE AIRMOTORS MANUAL | VA2J&X | VS2C | VA2C | ATEX certified · 19... -
Page 20: Main Dimensions Vs2C
Max. Overhung Force on shaft 400 N (90 lbf.) Note: With air inlet at port ‘A’, rotation is clockwise looking on shaft. For opposite rotation reverse ports. 20 · GLOBE AIRMOTORS MANUAL | VA2J&X | VS2C | VA2C | ATEX certified... -
Page 21: Exploded View With Spare Parts List
720-100 Seal backing ring 804-052 Circlip 729-910 806-024 Dowel pin 807-025 Bearing 807-028 Bearing 81 1-027 809-007 Screw 809-007P Screw 802-001 Screw 729-910 V2 Seal Kit GLOBE AIRMOTORS MANUAL | VA2J&X | VS2C | VA2C | ATEX certified · 21... -
Page 22: Performance Va2J&X | Vs2C | Va2C
Lubricator drop rate 6-8 drop / minute intermittent output torque applied to the driven assembly. operation. Maximum speed 4000 rpm Life time depends highly on operational speed and air pressure. 22 · GLOBE AIRMOTORS MANUAL | VA2J&X | VS2C | VA2C | ATEX certified... -
Page 23: Ordering Code
Globe Airmotors | Boerhaaveweg 9-1 1 | NL - 2408 AD Alphen a/d Rijn | Tel +31 172 426 608 | info@globe-benelux.nl Ordering code Ordering Codes Vane Air Motor Select easily with the ordering code your version and order it at our sales team. Do you have Select easily with the ordering code your version and order it at our sales team. -
Page 24: Atex Certification
-20° ≤ ≤ Ta ≤ ≤ + 60°C A complete . Technical File is held at the GLOBE Airmotors B.V office in Alphen aan den Rijn (NL). A copy of the Technical File is archived with file number EXVF-000015 at ExVeritas in the UK. - Page 25 -20° ≤ Ta ≤ + 60°C A complete Technical File is held at the GLOBE Airmotors B.V office in Alphen aan den Rijn (NL). A copy of the Technical File is archived with file number EXVF-000015 at ExVeritas in the UK.
-
Page 26: Ce Certification
The technical file is present inside the EER and can be drawn from name and the address of the manufacturer by the undersigned of this declaration. Netherlands, Alphen aan den Rijn Signature assignee of Date: 19-02-2022 irm ors BV 26 · GLOBE AIRMOTORS MANUAL | VA2J&X | VS2C | VA2C | ATEX certified... - Page 27 Complies with the provisions of the following EG-directive* and standards* GLOBE vane air moto�: VA1X, VA1X-NL, VA2J&X, VS2C, VA2C, VA2P, VS2C-NL, VA2C-NL, VA2J&X-NL, VA4J&X, VS4C, VA4C, VA4C-NL, VA4CI, VS4CI, VA4CI-NL, VS4CI-NL, VA4J&X-NL, VS4Z, VA4P, VS4C-NL, VA6J&X, VS6C, VA6C, VA6C-NL, VA6P, VA6J&X-NL, VS6C-NL, VS6CI, VA8J&X, VS8C, VA8C, VA8J&X-NL, VA8C-NL, VS8C-NL, VA10J&X, VS10C, VA10C,...
-
Page 28: Options & Accessories
Options & Accessories The GLOBE Vane Air Motors can be equipped with options and accessories. We offer a broad range of options and accesories. Controllers Silencers Different silencers in size and/or material Easy remote control Valves Gearbox Easy to change the directions of your motor...
