GLOBE
®
AIRMOTORS B.V.
GLOBE Airmotors | Boerhaaveweg 9-1 1 | NL - 2408 AD Alphen a/d Rijn | Tel +31 172 426 608 | info@globe-airmotors.com
Manual

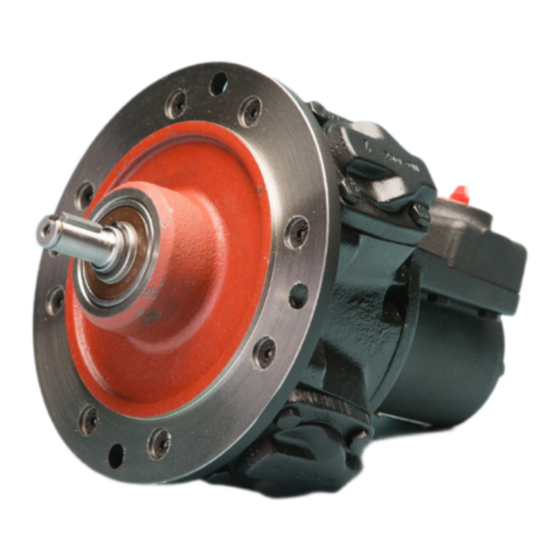

GLOBE RM210 Piston Air Motor
With optional auxiliaries
ATEX certified
II 2G Ex h IIC T5 Gb
II 2D Ex h IIIC T100°C Db
II 2G Ex h IIC T4 Gb X
II 2D Ex h IIIC T135°C Db X
globe-airmotors.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RM210 and is the answer not in the manual?

Questions and answers

Related Manuals for Globe RM210

Summary of Contents for Globe RM210

  • Page 1 GLOBE ® AIRMOTORS B.V. GLOBE Airmotors | Boerhaaveweg 9-1 1 | NL - 2408 AD Alphen a/d Rijn | Tel +31 172 426 608 | info@globe-airmotors.com Manual GLOBE RM210 Piston Air Motor With optional auxiliaries ATEX certified II 2G Ex h IIC T5 Gb II 2D Ex h IIIC T100°C Db...

  • Page 2: Table Of Contents

    Main dimensions RM210 Ex h Protection by constructional safety “c” Gas Main dimensions RM210 + Brake group IIC Main dim. RM210 + Brake + HCV IIIC Dust group IIIC Main dim. RM210 + Brake + RCV Temperature class T4 Spare Parts List RM210...

  • Page 3: Warranty

    Warranty The GLOBE Piston Air Motor and the GLOBE Pneumatic Brakes are designed to operate without any problems. This is only guaranteed if the regulations with regards to installation, operation, maintenance and repair are observed. Problems occurring during the guarantee period are corrected in accordance to GLOBE Airmotors BV guarantee conditions.

  • Page 4: Checklist To Comply To Atex

    Before use clean only with damp cloth. Avoid electrostatic charging mechanisms stronger than manual rubbing. Do not subject the equipment to external conditions that could cause build-up of electrostatic charges. 4 · GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...
  • Page 5 Before use clean only with damp cloth. Avoid electrostatic charging mechanisms stronger than manual rubbing. Do not subject the equipment to external conditions that could cause build-up of electrostatic charges. GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 5...

  • Page 6: Installation Motor & Valve

    Our silencers and FRL units are designed specifically for our motors to ensure maximum service life. Do not use a hammer on the shaft or body of the motor. 6 · GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...

  • Page 7: Mounting Positions

    It’s important that no dust or debris can accumulate at the output shaft. This may damage the shaft seal. The GLOBE Piston Motor is only allowed in horizontal position or shaft pointing vertical downwards. It is not allowed for the shaft to point in any angle upwards.

  • Page 8: Mounting To Construction

    Use only belts with <100 electrical leakage resistance to prevent static electrical problems. 8 · GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...

  • Page 9: Air Supply

    4 for solid particles and ISO 8473- lubricator suitable for the flow required. Prior 1:2010 class 3 for water. to initial start-up, inject oil into the inlet port. GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 9...

  • Page 10: Air Line Lubrication

    ENERGOL HLP-HM32 Esso NUTO H.100 Regent REGAL PE.RO Castrol HYSPIN AWH-M100 HYSPIN AWS 32 Mobil ALMO 524 Texaco RANDO 32 For extremes of ambient temperatures consult GLOBE 10 · GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...

  • Page 11: Installation Brake 1

    It’s important that no dust or debris can accumulate at the output shaft. This may damage the shaft seal. The GLOBE Piston Motor is only allowed in horizontal position or shaft pointing vertical downwards. It is not allowed for the shaft to point in any angle upwards.

  • Page 12: Mounting To Construction

    Make sure that the air is dry and filtered with an air filter of 64 micron or better. » The brake must be mounted to a GLOBE Piston Air Motor of equivalent size (for instance: RM1 10 Brake on RM1 10 Motor) including the correct piping and control valves supplied by GLOBE.

  • Page 13: Operation Motor & Valve

    Do not use combustible gases to drive this air motor Failure to follow these instructions can result in serious injury or property damage. A GLOBE Silencer is neccessairy for optimal reach of maximum power. Not instal- ling a GLOBE Silencer will increase the risk of hearing damage, motor malfunctions or loss of power.
  • Page 14 Clean filters and determine how frequently filters should be checked during future operation. Do not run the air motor at high speeds with no load. STOP This will result in excessive internal heat that may cause motor damage. 14 · GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...
  • Page 15 25 hours of initial running and every 200 hours thereafter or sooner if found necessary e.g. (contamination of oil by water from the air line.) GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 15...

  • Page 16: Performance Regulation

    Rotation speed For optimal power and speed control, we advise to use the com- bination of pressure and air flow regulation. 16 · GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...

  • Page 17: Operational Principle Hcv

    10-15% at 6 bar (90 psi) at maximum power. The starting torque remains unaffected. Inlet port G3/4" BSP Exhaust port Mounting face G3/4" BSP GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 17...

  • Page 18: Operational Priciple Rcv

    6 bar (90 psi) at maximum power. The starting torque remains unaffected. Inlet port G3/4" BSP Exhaust port G3/4" BSP Control ports Mounting face G1/4" BSP (2x) 18 · GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...

  • Page 19: Operation Brake

    The desired working- and thus release pressure (pressure threshold) must be provided by the customer before delivery and is set in a special valve (GLOBE APPV3214), It is very important which is part of the pneumatic system controlling the brake.

  • Page 20: Operation Principle Brake

    The end-user has to inform GLOBE prior to the delivery about the (max.) operating pressure of the motor. To comply to ATEX this pressure is set by GLOBE to be required to release the brake. This is done by adjusting the GLOBE APPV3214 valve which is integrated in the pneumatic control system.
  • Page 21 Prior to the delivery the holding torque brake will be set by the manufacturer. The customer/end-user has to inform GLOBE prior to the delive- ry about the running pressure on which the motor will run. The brake will be set to its maximum holding torque which is possible at this operating pressure.

  • Page 22: Connection Setups

    When the load is higher than the rated holding torque the brake will slip and the load can not be held. 22 · GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...
  • Page 23 When p2 is equal or higher than the pressure threshold valve D will open and allows pressure p2 to flow to the motor brake B, which will release. The motor can now be operated. GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 23...
  • Page 24 When p2 is equal or higher than the pressure threshold valve D will open and allows pressure p2 to flow to the motor brake B, which will release. The motor can now be operated. 24 · GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...
  • Page 25 When p2 is equal or higher than the pressure threshold valve D will open and allows pressure p2 to flow to the motor brake B, which will release. The motor can now be operated. GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 25...
  • Page 26 The temperature raise of the brakes are tested on frequent start-stop. The next start-stop frequencies are allowed: Maximum start stop frequency brakes RM110 RM210 RM310 RM410 RM510 RM610 Times per minute 26 · GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...

  • Page 27: Load Adjustment

    The brake is now adjusted to it’s maximum holding torque. Remember each Adjuster must be altered the same amount to give equal operation to the brake shoes. GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 27...

  • Page 28: Maintenance Motor & Valve

    Before use clean only with damp cloth. Avoid electrostatic charging mechanisms stronger than manual rubbing. Do not subject the equipment to external conditions that could cause build-up of electrostatic charges. 28 · GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...

  • Page 29: Shutdown And Long Storage

    » Store the air motor in a dry environment. A GLOBE Silencer is neccessairy for optimal reach of maximum power. Not instal- ling a GLOBE Silencer will increase the risk of hearing damage, motor malfunctions or loss of power. It is also essential that an FRL unit is incorporated into the airline to prevent motor malfunctions.
  • Page 30 25 hours of initial running and every 200 hours thereafter or sooner if found necessary e.g. (contamination of oil by water from the air line.) 30 · GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...

  • Page 31: Servicing

    This is always stamped on the main flange plate (24) located near the breather plug hole 46, i.e. 230 Hx. GLOBE provide a seal kit for each motor and it is strongly recommended that new oil seals, seals and gaskets are used throughout.
  • Page 32 (22) and the tapered pin (21). Both balance weights (part no. 20A and 20B) can now be disengaged. This will expose the king rod and queen rod assembly. To remove the queen rod remove the pivot pin (29). 32 · GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...
  • Page 33 Locate the spacing washer (31 - 34) and spacing as paragraph No. 10. After assembly, install the motor according to the Installation chapter in this manual GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 33...
  • Page 34 Assembly of valve housing This is the reverse procedure to dismantling. Smear oil to external surface of valve (2) and to the bore of valve housing (3). 34 · GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...
  • Page 35 Spray some light oil into the inlet and exhaust ports and connect the unit to a low pressure supply and allow the unit to run on the bench for a short period of time prior to refitting the unit into full service. GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 35...
  • Page 36 Note! The spool and sleeve are during fabrication matched to each other. It is not possible to replace only the spool or sleeve. They always have to be replaced as a set. 36 · GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...
  • Page 37 804-013 Circlip 20mm External 815-010 Grub Screw M8 x 10 815-002 Grub Screw M8 x 16 816-063 Plug 1/8” BSPT Sq. Head 1 13-050 Vent Plug 2E/2B GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 37...
  • Page 38 1 1 1-072 Washer, Spring Centering 814-017 Spring D13040 1 1 1-064 End Cap - Spring End 816-049 Elbow M/F 1/8” BSPT 816-063 Plug 1/8” BSPT Sq. Head 2E/2B 38 · GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...

  • Page 39: Maintenance Brake

    Flush this product in a well ventilated area. Do not use kerosene or other combustible solvents to flush this product. Failure to follow these instructions can result in serious injury or property damage. GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 39...
  • Page 40 Air connection; Compression fitting 53,5 for 5/16" O/D tubing Brake spring force adjuster Motor mounting interface 14 (4x90 ) Breather plug (ATEX) Same mounting interface as motor 40 · GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...

  • Page 41: General Information

    Before use clean only with damp cloth. Avoid electrostatic charging mechanisms stronger than manual rubbing. Do not Electrostatic charging subject the equipment to external conditions that could cause build-up of electrostatic charges. GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 41...

  • Page 42: Trouble Shooting

    Motor is running hot. Perform a service maintenance. Inadequate air flow from air source. Inspect and repair. Air source is too far from the motor. Put the air source closer. 42 · GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...

  • Page 43: Performance Rm210

    The starting torque remains Intermittent operation: 8-10 drop / minute. unaffected. Maximum Speed: 2400 rpm Life time depends highly on operational speed and air pressure. GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 43...
  • Page 44 Oil drain plug and level plug for vertical mounting 890 N (200 lbf) Mass: Motor only 26 kgs (57.3 lbs) 180,13 180,06 M12 (4x90 ) Motor or brake interference 18 (2x) 44 · GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...

  • Page 45: Main Dimensions Rm210 + Brake

    Dimensions & Performance RM210 + Brake Setup 1A Setup 1B GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 45...

  • Page 46: Main Dim. Rm210 + Brake + Hcv

    Dimensions & Performance RM210 + Brake + HCV Setup 2A Setup 2B 46 · GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...

  • Page 47: Main Dim. Rm210 + Brake + Rcv

    Dimensions & Performance RM210 + Brake + RCV Setup 3A Setup 3B GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 47...

  • Page 48: Spare Parts List Rm210

    Queen Rod 230-052 Crank Spacer SELECT 230-054/055 Crank Spacer ASSEMBLY If unit is pre 1990 supplied, consult manufacturer to confirm design. 230-056 Crank Spacer 230-010 Balance Weight 48 · GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...

  • Page 49: Spare Parts List Parking Brake

    Breather plug 1/8 BSPP (ATEX Only) 814-001 Spring 223712 802-016 Hex Head Screw M6 x 16 212-030 Piston Block Gasket 802-025 Hex Head Screw M6 x 25 808-075 U Packing U1 10 GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 49...

  • Page 50: Spare Parts List Hcv

    Black Plastic Knob 31mm 804-013 Circlip 20mm External 815-010 Grub Screw M8 x 10 815-002 Grub Screw M8 x 16 816-063 Plug 1/8” BSPT Sq. Head 1 13-050 Vent Plug 50 · GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...

  • Page 51: Spare Parts List Rcv

    1 1 1-072 Washer, Spring Centering 814-017 Spring D13040 1 1 1-064 End Cap - Spring End 816-049 Elbow M/F 1/8” BSPT 816-063 Plug 1/8” BSPT Sq. Head GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 51...

  • Page 52: Eu Declaration Of Conformity

    II 2D Ex h IIIC T100ºC Db -20°C ≤ Ta ≤ +60°C A complete Technical File is held at the GLOBE Airmotors B.V office in Alphen aan den Rijn (NL). A copy of the Technical File is archived with file number EXVF-000015 at ExVeritas in the UK.
  • Page 53 II 2D Ex h IIIC T100ºC Db -20°C ≤ Ta ≤ +60°C A complete Technical File is held at the GLOBE Airmotors B.V office in Alphen aan den Rijn (NL). A copy of the Technical File is archived with file number EXVF-000015 at ExVertitas in the...
  • Page 54 Hereby declare in our sole responsibility, that the following pneumatic brake models: 112-900EX, 212-900EX, 312-900EX, 412-920EX, 512-900EX as well as the GLOBE Airmotors’ “GLOBE Piston Motor” & Brake assemblies and “GLOBE Piston Motor” & Brake & Valve assemblies: RxxDxxxxxEX, RxxDxxHxxEX, RxxDxxRxxEX,...
  • Page 55 II 2D Ex h IIIC T135ºC Db X -10°C ≤ Ta ≤ +60°C A complete Technical File is held at the GLOBE Airmotors B.V office in Alphen aan den Rijn (NL). A copy of the Technical File is archived with file number EXVF-000015 at ExVertitas in the...

  • Page 56: Ce Certification

    The technical file is present inside the EER and can be drawn from name and the address of the manufacturer by the undersigned of this declaration. Netherlands, Alphen aan den Rijn Date: 19-02-2022 '5<)8Jl�18W8Q 9-11 AO Alphen e/d Rljn The Netherland& Name: J.G.G. Wannet Director 56 · GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified...
  • Page 57 The technical file can be drawn from name and the address of the manufacturer by the undersigned of this declaration. Netherlands, Alphen aan den Rijn Date: 19-02-2022 '5<)8Jl�18W8Q 9-11 AO Alphen e/d Rljn The Netherland& Name: J.G.G. Wannet Director GLOBE RM210 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES | ATEX Certified · 57...

  • Page 58: Options & Accessories

    ® GLOBE AIRMOTORS B.V. Take a look at our other products Wide range of products available Compact Piston Air Motors Pneumatic Brakes Compact Vane Air Motors Vane Air Motors This document, as well as the CAD data are available for download on globe-airmotors.com.
