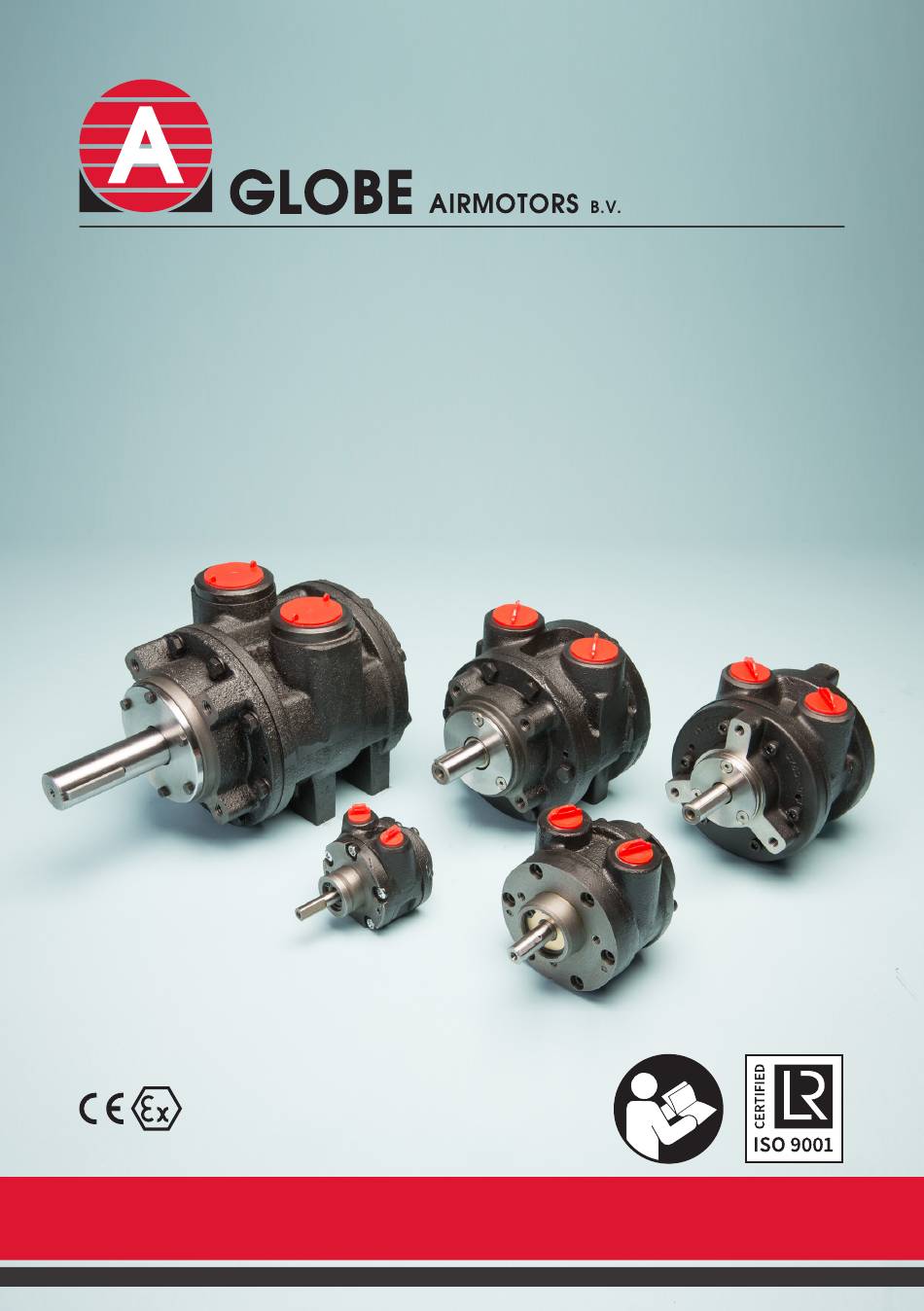

- Page 1 GLOBE Airmotors | Boerhaaveweg 9-1 1 | NL - 2408 AD Alphen a/d Rijn | Tel +31 172 426 608 | info@globe-benelux.nl Manual GLOBE Vane Air Motor VA6J&X | VS6C | VA6C ATEX certified II 2G Ex h IIC T4 Gb II 2D Ex h IIIC T135°C Db...
-
Page 2: Table Of Contents
Warranty Mounting to construction EN-ISO80079-36:2016 Air supply The GLOBE air motor is designed to operate without any problems. This is only guaranteed if the EN-ISO80079-37: 016 Operation regulations with regards to installation, operation, maintenance and repair are observed. Problems Performance regulation... -
Page 3: Checklist To Comply To Atex
Before use clean only with damp cloth. Ground the motor to the earth with a maximum earth resistance of 1Mohm. 4 · MANUAL | VA6J&X | VS6C | VA6C | ATEX certified MANUAL | VA6J&X | VS6C | VA6C | ATEX certified · 5... -
Page 4: Air Supply
For extremes of ambient temperature consult the manufactures. Do not use a hammer on the shaft or body of the motor. 6 · MANUAL | VA6J&X | VS6C | VA6C | ATEX certified MANUAL | VA6J&X | VS6C | VA6C | ATEX certified · 7... -
Page 5: Operation
Do not run the air motor at high speeds with no load. STOP This will result in excessive internal heat that may cause motor damage. 8 · MANUAL | VA6J&X | VS6C | VA6C | ATEX certified MANUAL | VA6J&X | VS6C | VA6C | ATEX certified · 9... -
Page 6: Performance Regulation
For optimal power and speed control we advise to use the combination of pressure and air flow regulation. 10 · MANUAL | VA6J&X | VS6C | VA6C | ATEX certified MANUAL | VA6J&X | VS6C | VA6C | ATEX certified · 1 1... -
Page 7: Summary Of The Hazards With Protective Means
Use only genuine replacement blades as these have a special profile to give correct ejection and contact with the rotor body. Always ensure adequate lubrication. Never run motors completely off load at high speed. 12 · MANUAL | VA6J&X | VS6C | VA6C | ATEX certified MANUAL | VA6J&X | VS6C | VA6C | ATEX certified · 13... -
Page 8: Trouble Shooting
Maximum continuous speed 3000 rpm Use 64 micron filtration or better. Choose a and air pressure. 14 · MANUAL | VA6J&X | VS6C | VA6C | ATEX certified MANUAL | VA6J&X | VS6C | VA6C | ATEX certified · 15... -
Page 9: Main Dimensions Va6J&X
V6 Seal Kit 22 780-007 Seal Housing 820-004 Silencer 3/4” 769-915 V6 Seal Kit 820-005 Silencer 3/4 BSP 16 · MANUAL | VA6J&X | VS6C | VA6C | ATEX certified MANUAL | VA6J&X | VS6C | VA6C | ATEX certified · 17... -
Page 10: Main Dimensions Va6C
21 811-020 820-005 Silencer 3/4” 22 760-007 Seal Housing 769-915 V6 Seal Kit 820-025 Silencer 3/4 BSP 18 · MANUAL | VA6J&X | VS6C | VA6C | ATEX certified MANUAL | VA6J&X | VS6C | VA6C | ATEX certified · 19... - Page 11 Compact Piston Air Motors Pneumatic Brakes Compact Vane Air Motors Planetary Geared Vane Air Motor Radial Piston Air Motors Specials: Costum Build This document, as well as the CAD data of the vane air motors are available for download on globe-benelux.nl. globe-benelux.nl...
