Summary of Contents for Globe VA10J

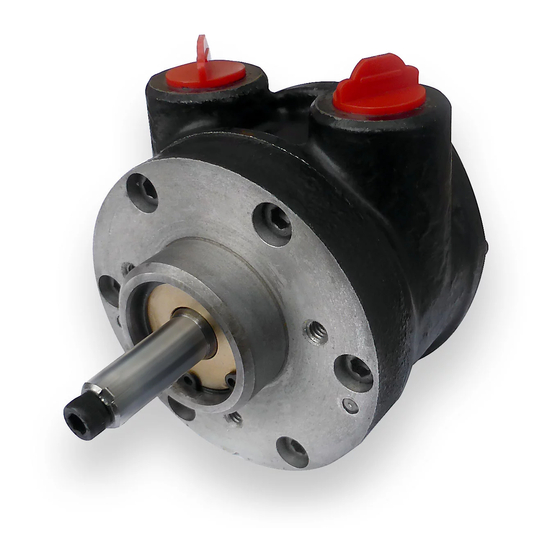

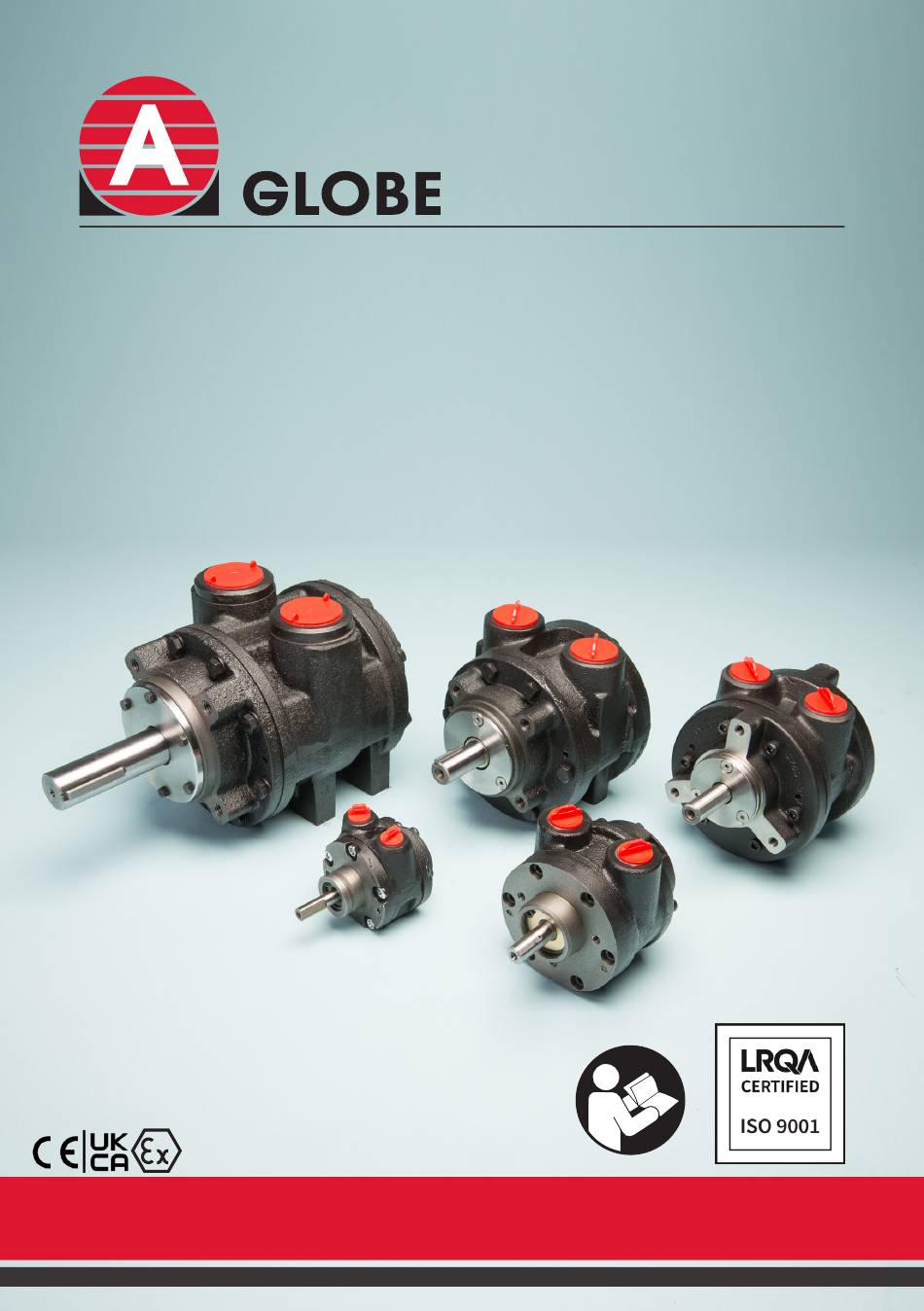

- Page 1 ® AIRMOTORS B.V. GLOBE Airmotors | Boerhaaveweg 9-1 1 | NL - 2408 AD Alphen a/d Rijn | Tel +31 172 426 608 | info@globe-benelux.nl Manual GLOBE Vane Air Motor VA10J&X | VS10C | VA10C ATEX certified II 2G Ex h IIC T4 Gb II 2D Ex h IIIC T135°C Db...
-
Page 2: Table Of Contents
Protection by constructional safety “c” Gas group IIC IIIC Dust group IIIC Temperature class T4 T135°C Maximum surface temperature 135°C Equipment protection level Gb Equipment protection level Db Ambient temperature range 2 · GLOBE AIRMOTORS MANUAL | VA10J&X | VS10C | VA10C | ATEX certified... -
Page 3: Warranty
Warranty The GLOBE air motor is designed to operate without any problems. This is only guaranteed if the regulations with regards to installation, operation, maintenance and repair are observed. Problems occurring during the guarantee period are corrected in accordance to GLOBE Airmotors BV guarantee conditions. -
Page 4: Checklist To Comply To Atex
Before use clean only with damp cloth. Avoid electrostatic charging mechanisms stronger than manual rubbing. Do not subject the equipment to external conditions that could cause build-up of electrostatic charges. 4 · GLOBE AIRMOTORS MANUAL | VA10J&X | VS10C | VA10C | ATEX certified... -
Page 5: Installation
It is not allowed for the shaft to point in any angle upwards. In order to guarantee the maximum performance and service life of these motors it is essential that the following points are strictly observed and obeyed. GLOBE AIRMOTORS MANUAL | VA10J&X | VS10C | VA10C | ATEX certified · 5... -
Page 6: Mounting To Construction
Ground the motor to the earth with a maximum earth resistance of 1Mohm. Do not use a hammer on the shaft or body of the motor. 6 · GLOBE AIRMOTORS MANUAL | VA10J&X | VS10C | VA10C | ATEX certified... -
Page 7: Air Supply
4 for solid particles and ISO 8473- 1:2010 class 3 for water. Air supply Air motor Incoming airline Silencer Shutoff valve Filter (64 micron) Pressure regulator Lubricator Air flow regulation (optional) GLOBE AIRMOTORS MANUAL | VA10J&X | VS10C | VA10C | ATEX certified · 7... - Page 8 Use only belts with <100 electrical leakage resistance to prevent static electrical problems. 8 · GLOBE AIRMOTORS MANUAL | VA10J&X | VS10C | VA10C | ATEX certified...
-
Page 9: Operation
Do not run the air motor at high speeds with no load. STOP This will result in excessive internal heat that may cause motor damage. GLOBE AIRMOTORS MANUAL | VA10J&X | VS10C | VA10C | ATEX certified · 9... - Page 10 Check intake filter and silencer after the first 100 hours of operation. » Clean filters and determine how frequently filters should be checked during future operation. 10 · GLOBE AIRMOTORS MANUAL | VA10J&X | VS10C | VA10C | ATEX certified...
-
Page 11: Performance Regulation 1
Rotation speed Pressure regulation Air flow regulation(optional) For optimal power and speed control we advise to use the combination of pressure and air flow regulation. GLOBE AIRMOTORS MANUAL | VA10J&X | VS10C | VA10C | ATEX certified · 1 1... -
Page 12: Maintenance
To comply according to ATEX please change the bearings of the motor according to the table below: VA10J&X VS10C VA10C 20.500 Running hours 20.900 Running hours 20.500 Running hours 12 · GLOBE AIRMOTORS MANUAL | VA10J&X | VS10C | VA10C | ATEX certified... -
Page 13: Summary Of The Hazards With Protective Means
The motor shall be bonded together to other metal parts and Electrostatic charging to earth with a earth resistance of maximum 1MΩ. Electrostatic charging Before use clean only with damp cloth. GLOBE AIRMOTORS MANUAL | VA10J&X | VS10C | VA10C | ATEX certified · 13... -
Page 14: Rebuild Instructions
Use only genuine replacement blades as these have a special profile to give correct ejection and contact with the rotor body. Always ensure adequate lubrication. Never run motors completely off load at high speed. 14 · GLOBE AIRMOTORS MANUAL | VA10J&X | VS10C | VA10C | ATEX certified... -
Page 15: Trouble Shooting
Motor is running hot. Perform a service maintenance. Inadequate air flow from air source. Inspect and repair. Air source is too far from the motor. Put the air source closer. GLOBE AIRMOTORS MANUAL | VA10J&X | VS10C | VA10C | ATEX certified · 15... -
Page 16: Dimensions, Performances & Spare Parts
Axial loads should be kept to a minimum » Mass 22 kg Note: With air inlet at port ‘A’, rotation is clockwise looking on shaft. For opposite rotation reverse ports. 16 · GLOBE AIRMOTORS MANUAL | VA10J&X | VS10C | VA10C | ATEX certified... -
Page 17: Exploded View With Spare Parts List
Bearing O Ring 799-910 Oil Seal 799-910 81 1-024 803-019 Washer 790-007 Seal Housing 790-015 Base Plate 809-008 Capscrew 799-910 V10 Seal Kit 820-007 Silencer 11/4” GLOBE AIRMOTORS MANUAL | VA10J&X | VS10C | VA10C | ATEX certified · 17... -
Page 18: Main Dimensions Vs10C
Max. Overhung Force on shaft 1750 N (400 lbf.) Note: With air inlet at port ‘A’, rotation is clockwise looking on shaft. For opposite rotation reverse ports. 18 · GLOBE AIRMOTORS MANUAL | VA10J&X | VS10C | VA10C | ATEX certified... -
Page 19: Exploded View With Spare Parts List
Screw 806-018 Dowel 807-037 Bearing 807-019 Bearing O Ring 799-910 Oil Seal 799-910 809-019 Capscrew 81 1-033 803-019 Washer 799-910 V10 Seal Kit 820-007 Silencer 11/4” GLOBE AIRMOTORS MANUAL | VA10J&X | VS10C | VA10C | ATEX certified · 19... -
Page 20: Main Dimensions Va10C
Max. Overhung Force on shaft 1750 N (400 lbf.) Note: With air inlet at port ‘A’, rotation is clockwise looking on shaft. For opposite rotation reverse ports. 20 · GLOBE AIRMOTORS MANUAL | VA10J&X | VS10C | VA10C | ATEX certified... -
Page 21: Exploded View With Spare Parts List
807-019 Bearing O Ring 799-910 Oil Seal 799-910 809-019 Cap Screw 790-026 Front Cover SAE 81 1-020 803-019 Washer 799-910 V10 Seal Kit 820-007 Silencer 11/4” GLOBE AIRMOTORS MANUAL | VA10J&X | VS10C | VA10C | ATEX certified · 21... -
Page 22: Performance Va10J&X | Vs10C | Va10C
Life time depends highly on operational speed Lubricator drop rate 14-16 drops/minute intermittent operation. Use 64 micron filtration or better. Choose a and air pressure. Maximum continuous speed 2400 rpm 22 · GLOBE AIRMOTORS MANUAL | VA10J&X | VS10C | VA10C | ATEX certified... -
Page 23: Ordering Code
Globe Airmotors | Boerhaaveweg 9-1 1 | NL - 2408 AD Alphen a/d Rijn | Tel +31 172 426 608 | info@globe-benelux.nl Ordering code Ordering Codes Vane Air Motor Select easily with the ordering code your version and order it at our sales team. Do you have special Select easily with the ordering code your version and order it at our sales team. -
Page 24: Atex Certification
-20° ≤ ≤ Ta ≤ ≤ + 60°C A complete . Technical File is held at the GLOBE Airmotors B.V office in Alphen aan den Rijn (NL). A copy of the Technical File is archived with file number EXVF-000015 at ExVeritas in the UK. - Page 25 -20° ≤ Ta ≤ + 60°C A complete Technical File is held at the GLOBE Airmotors B.V office in Alphen aan den Rijn (NL). A copy of the Technical File is archived with file number EXVF-000015 at ExVeritas in the UK.
-
Page 26: Ce Certification
The technical file is present inside the EER and can be drawn from name and the address of the manufacturer by the undersigned of this declaration. Netherlands, Alphen aan den Rijn Signature assignee of Date: 19-02-2022 irm ors BV 26 · GLOBE AIRMOTORS MANUAL | VA10J&X | VS10C | VA10C | ATEX certified... - Page 27 VA1X, VA1X-NL, VA2J&X, VS2C, VA2C, VA2P, VS2C-NL, VA2C-NL, VA2J&X-NL, VA4J&X, VS4C, VA4C, VA4C-NL, VA4CI, VS4CI, VA4CI-NL, VS4CI-NL, VA4J&X-NL, VS4Z, VA4P, VS4C-NL, VA6J&X, VS6C, VA6C, VA6C-NL, VA6P, VA6J&X-NL, VS6C-NL, VS6CI, VA8J&X, VS8C, VA8C, VA8J&X-NL, VA8C-NL, VS8C-NL, VA10J&X, VS10C, VA10C, VS10C-SO2, VA10J&X-SO2, VA10J&X-NL, VA10C-NL, VS10C-NL, VS12C, VA12C, VS12C-NL, VA12C-NL Complies with the wovisions of the following EG-directive* and standards* •...
-
Page 28: Options & Accessories
Options & Accessories The GLOBE Vane Air Motors can be equipped with options and accessories. We offer a broad range of options and accesories. Silencers Controllers Different silencers in size and/or material Easy remote control Valves Gearbox Easy to change the directions of your motor...
