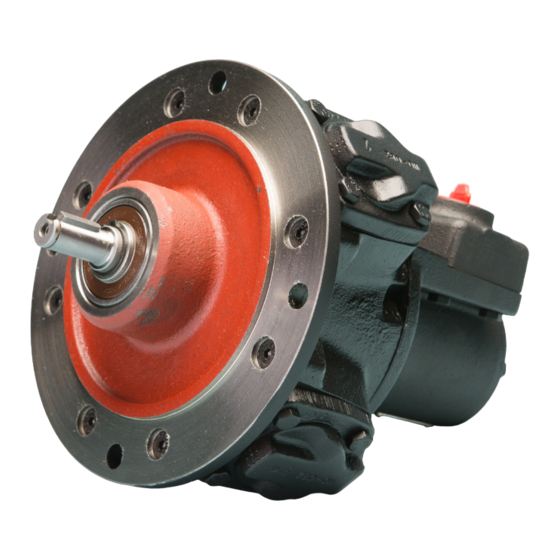

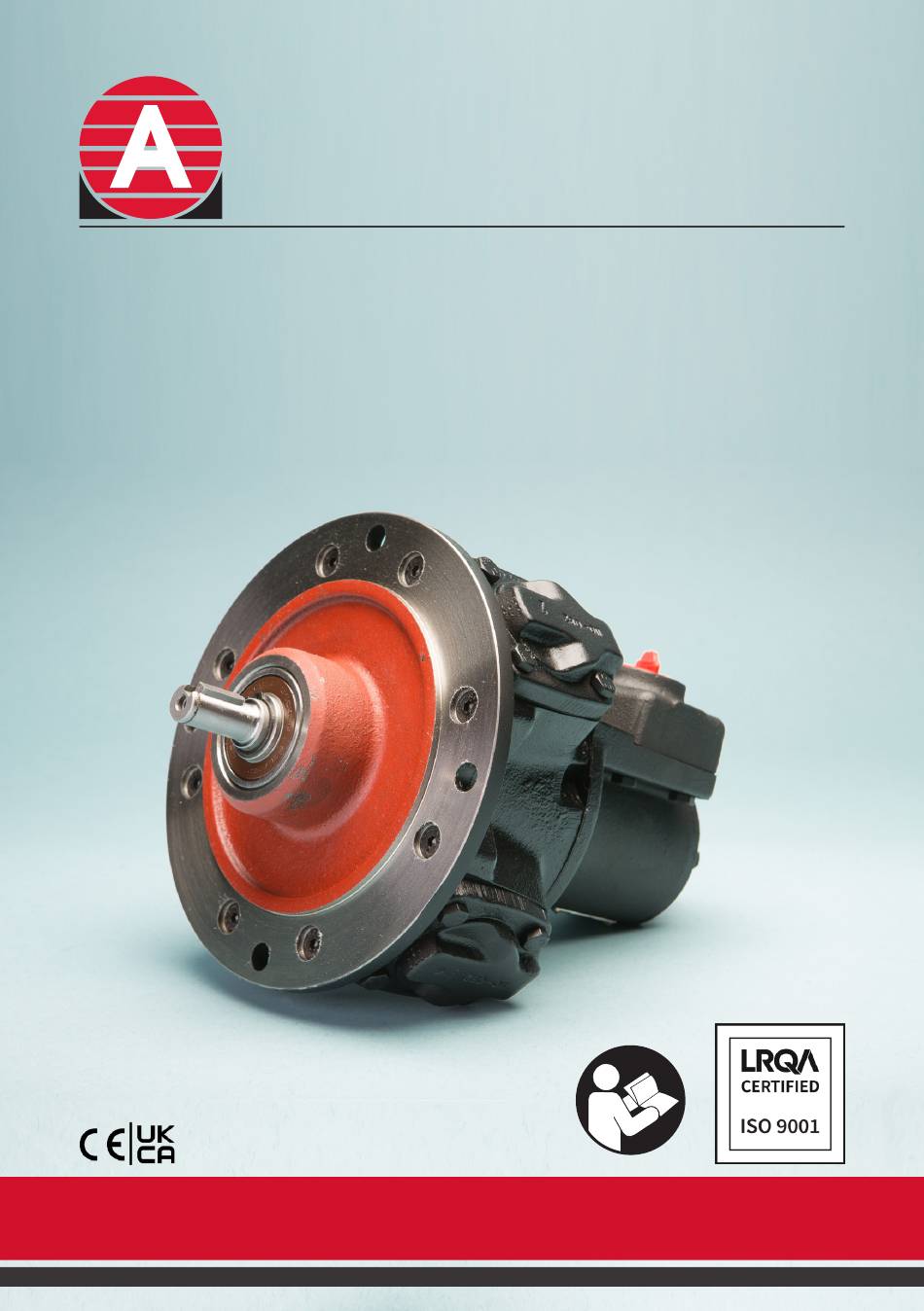

- Page 1 GLOBE AIRMOTORS B.V. GLOBE Airmotors | Boerhaaveweg 9-1 1 | NL - 2408 AD Alphen a/d Rijn | Tel +31 172 426 608 | info@globe-benelux.nl Manual GLOBE RM610 Piston Air Motor With optional auxiliaries globe-airmotors.com...
-
Page 2: Table Of Contents
Performance RM1 10 + HCV/RCV Spare Parts List RM1 10 Spare Parts List Parking Brake Spare Parts List HCV Spare Parts List RCV Ordering code CE Certification Options & Accessories 2 · GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES... -
Page 3: Warranty
Warranty The GLOBE Piston Air Motor and the GLOBE Pneumatic Brakes are designed to operate without any problems. This is only guaranteed if the regulations with regards to installation, operation, maintenance and repair are observed. Problems occurring during the guarantee period are corrected in accordance to GLOBE Airmotors BV guarantee conditions. -
Page 4: Installation Motor & Valve
Note! When first running the motor some light oil should be injected into the inlet connection to ensure adequate lubrication until the air line lubrication is established. A GLOBE Silencer is neccessairy for optimal reach of maximum power. Not instal- ling a GLOBE Silencer will increase the risk of hearing damage, motor malfunctions or loss of power. - Page 5 26 (fitted in housing 3 RM510-610 models). (numbers indicate parts on exploded view) The vertical oil level position for the RM410, RM510 and RM610 motors is a combined horizontal drain and vertical level plug (part number 26) To fill motors with oil remove the combined breather and oil filler plug part number 46.
-
Page 6: Mounting To Construction
If the motor shaft is connected to the part to be driven without a coupling, check that the radial offset and axial force effect will not cause problems. 6 · GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES... -
Page 7: Air Supply
218°C. appropriate to the situation. » Air quality should meet ISO 8573-1:2010 class 4 for solid particles and ISO 8473- 1:2010 class 3 for water. GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES · 7... - Page 8 TELLUS S2 A32 B.P. ENERGOLHLP-HM100 ENERGOL HLP-HM32 Esso NUTO H.100 Regent REGAL PE.RO Castrol HYSPIN AWH-M100 HYSPIN AWS 32 Mobil ALMO 524 Texaco RANDO 32 For extremes of ambient temperatures consult GLOBE 8 · GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES...
-
Page 9: Installation Brake
It’s important that no dust or debris can accumulate at the output shaft. This may damage the shaft seal. The GLOBE Piston Motor is only allowed in horizontal position or shaft pointing vertical downwards. It is not allowed for the shaft to point in any angle upwards. -
Page 10: Mounting To Construction
Make sure that the air is dry and filtered with an air filter of 64 micron or better. » The brake must be mounted to a GLOBE Piston Airmotor of equivalent size (for instance: RM1 10 Brake on RM1 10 Motor) including the correct piping and control valves supplied by GLOBE. -
Page 11: Operation Motor & Valve 1
Do not use combustible gases to drive this air motor Failure to follow these instructions can result in serious injury or property damage. A GLOBE Silencer is neccessairy for optimal reach of maximum power. Not instal- ling a GLOBE Silencer will increase the risk of hearing damage, motor malfunctions or loss of power. - Page 12 0-2400 0-2400 0-2000 0-2000 0-2000 Do not run the air motor at high speeds with no load. STOP This will result in excessive internal heat that may cause motor damage. 12 · GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES...
- Page 13 The motor case should be drained and STOP refilled after 25 hours of initial running and every 200 hours thereafter or sooner if found necessary e.g. (contamination of oil by water from the air line.) GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES · 13...
-
Page 14: Performance Regulation
Rotation speed For optimal power and speed control, we advise to use the com- bination of pressure and air flow regulation. 14 · GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES... -
Page 15: Operational Principle Hcv
Pressure Drop - Minimal pressure drop will be experienced through the valves, having the effect of maintaining the output torque whilst reducing the motor output speed by approximately 10-15% at 6 bar (90 psi) at maximum power. The starting torque remains unaffected. GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES · 15... -
Page 16: Operational Priciple Rcv
Pressure Drop - Minimal pressure drop will be experienced through the valves, having the effect of maintaining the output torque whilst reducing the motor output speed by approximately 10-15% at 6 bar (90 psi) at maximum power. The starting torque remains unaffected. 16 · GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES... -
Page 17: Operation Brake
Wear hearing protection: The noice level from the air motor may exceed 85 db (A) Do not use combustible gases to drive this brake Failure to follow these instructions can result in serious (eye) injury or property damage. GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES · 17... -
Page 18: Operation Principle Brake
Brake shoe (2x) Brake shoe spring (2x); Brake release piston (2x); brake force actuator brake force release Brake force adjuster (2x) Brake release cylinder; pressure chamber Brake force adjuster locknut (2x) 18 · GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES... - Page 19 Units supplied with remote (RCV) proportional control reversible valve (C). When the RCV is actuated by one of the pilot lines (p2) a pneumatic signal will be passed onto the shuttle valve (E) and the brake (B) is released. GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES · 19...
- Page 20 Check every 200 operating hours the thickness of the brake shoe liners. If the rivet heads which are holding the shoes on the brake shoe assembly – item 26 – are within 0.5 mm of the surface new brake shoe assemblies need to be fitted. 20 · GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES...
- Page 21 When the load is higher than the rated holding torque the brake. GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES · 21...
-
Page 22: Load Adjustment
» After setting the brake lock the Adjusters with locknut item 8. Remember each Adjuster must be altered the same amount to give equal operation to the brake shoes. 22 · GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES... -
Page 23: Maintenance Motor & Valve
Note! Lack of maintenance will shorten the life of the motor and could cause failure. A GLOBE Silencer is neccessairy for optimal reach of maximum power. Not instal- ling a GLOBE Silencer will increase the risk of hearing damage, motor malfunctions or loss of power. -
Page 24: Shutdown And Long Storage
» Cap or plug each port of the air motor. » Coat output shaft with oil or grease. » Store the air motor in a dry environment. 24 · GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES... - Page 25 The motor case should be drained and STOP refilled after 25 hours of initial running and every 200 hours thereafter or sooner if found necessary e.g. (contamination of oil by water from the air line.) GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES · 25...
-
Page 26: Servicing
(26). Stripping and re-assembly will be simplified if the crankshaft (20/A/B) or output shaft (67) RM510 and RM610 is vertically in a soft-jawed vice or supported on a suitable packing to raise the shaft clear of the working surface. - Page 27 (22) and the tapered pin (21). Both balance weights (part no. 20A and 20B) can now be disengaged. This will expose the king rod and queen rod assembly. To remove the queen rod remove the pivot pin (29). GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES · 27...
- Page 28 Locate the spacing washer (31 - 34) and spacing as paragraph No. 10. After assembly, install the motor according to the Installation chapter in this manual 28 · GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES...
- Page 29 (30 /34) and refer to paragraph 10 for spacing the motor unit. Assembly of valve housing This is the reverse procedure to dismantling. Smear oil to external surface of valve (2) and to the bore of valve housing (3). GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES · 29...
- Page 30 Listen if there is air leaking from the bottom of the valve. If there is clearly a hissing sound it means that one or more of the O-rings are damaged during re-assembly. Start proce- dure again. 30 · GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES...
- Page 31 Toggle Pin 523-008 Hand Lever Pivot 313-002 Hand Lever 818-002 Black Plastic Knob 1-1/2” 804-013 Circlip 20mm External 815-010 Grub Screw M8 x 10 815-002 Grub Screw M8 x 16 GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES · 31...
- Page 32 Listen if there is air leaking from the bottom of the valve. If there is clearly a hissing sound it means that one or more of the O-rings are damaged during re-assembly. Start proce- dure again. 32 · GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES...
- Page 33 Valve Body 521-068 Valve Sleeve Spacer 521-072 Washer, Spring Centering 814-019 Sprin, Control Spool 521-064 End Cap - Spring End 521-033 End Cap Washer 816-074 Plug 1/8” BSPT Sq. Head GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES · 33...
- Page 34 Spray some light oil into the inlet and exhaust ports and connect the unit to a low pressure supply and allow the unit to run on the bench for a short period of time prior to refitting the unit into full service. 34 · GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES...
-
Page 35: Maintenance Brake
Flush this product in a well ventilated area. Do not use kerosene or other combustible solvents to flush this product. Failure to follow these instructions can result in serious injury or property damage. GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES · 35... - Page 36 Always replace both brakes shoes even if only one is worn. After fitting the new brake shoe assemblies use the LOAD ADJUSTMENT procedure as mentioned in the chapter OPERATION. 36 · GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES...
-
Page 37: Trouble Shooting
Motor is running hot. Perform a service maintenance. Inadequate air flow from air source. Inspect and repair. Air source is too far from the motor. Put the air source closer. GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES · 37... -
Page 38: Dimensions, Performances & Spare Parts
Dimensions, Performances & Spare Parts Dimensions RM610 & RM610 + Foot Bracket 38 · GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES... -
Page 39: Main Dimensions Rm1 10 + Brake
Dimensions & Performance RM610 + Brake GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES · 39... -
Page 40: Performance Rm1 10 + Brake
+140°F) / -10°C to +60°C (-14°F to +140°F) with 3-4 drops/minute for continuous operation 6-10 drops/ minute for intermittent operation brake Lubricator drop rate 8-10 drops/minute continuous operation Lubricator drop rate 16-20 drops/minute intermittent operation 40 · GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES... -
Page 41: Main Dim. Rm1 10 + Brake + Hcv
Dimensions & Performance RM610 + Brake + HCV GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES · 41... -
Page 42: Main Dim. Rm1 10 + Brake + Rcv
Dimensions & Performance RM610 + Brake + RCV 42 · GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES... -
Page 43: Performance Rm1 10 + Hcv/Rcv
+140°F) / -10°C to +60°C (-14°F to +140°F) with 3-4 drops/minute for continuous operation port. brake 6-10 drops/ minute for intermittent operation Lubricator drop rate 8-10 drops/minute continuous operation Lubricator drop rate 16-20 drops/minute intermittent operation GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES · 43... - Page 44 809-035 Cylinder Bolts 802-054 Valve Housing Bolts 802-054 Adaptor Plate Bolt 802-033 Exhaust Cover Bolts 815-008 Flange Plage Plugs If unit is pre 1990 supplied, consult manufacturer to confirm design. 44 · GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES...
-
Page 45: Spare Parts List Parking Brake
Adjuster Screw 512-024 Locknut 814-01 1 Spring MSD15 512-901 Brake Shoe Assy 816-006 Banjo Bolt 1/4” BSP 808-090 Bonded Seal 1/4”BSP Dowty 81 1-030 Key 10 x 8 x 63 GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES · 45... -
Page 46: Spare Parts List Hcv
Toggle Pin 523-008 Hand Lever Pivot 313-002 Hand Lever 818-002 Black Plastic Knob 1-1/2” 804-013 Circlip 20mm External 815-010 Grub Screw M8 x 10 815-002 Grub Screw M8 x 16 46 · GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES... -
Page 47: Spare Parts List Rcv
Valve Body 521-068 Valve Sleeve Spacer 521-072 Washer, Spring Centering 814-019 Sprin, Control Spool 521-064 End Cap - Spring End 521-033 End Cap Washer 816-074 Plug 1/8” BSPT Sq. Head GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES · 47... - Page 48 » » Assured of the GLOBE assembling quality. Our high-pressure specialists provide you » Complete unburdening with the delivery of with the best advice. your air motor. 48 · GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES...
-
Page 49: Ordering Code
5 = Biased: CCW Lowering (NPT) RM410 (14 KW / 19 HP) = R43 RM510 (14 KW / 31 HP) = R52 RM610 (14 KW / 32 HP) = R62 GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES · 49... -
Page 50: Ce Certification
The technical file is present inside the EER and can be drawn from name and the address of the manufacturer by the undersigned of this declaration. Netherlands, Alphen aan den Rijn Date: 19-02-2022 '5<)8Jl�18W8Q 9-11 AO Alphen e/d Rljn The Netherland& Name: J.G.G. Wannet Director 50 · GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES... - Page 51 The technical file can be drawn from name and the address of the manufacturer by the undersigned of this declaration. Netherlands, Alphen aan den Rijn Date: 19-02-2022 '5<)8Jl�18W8Q 9-11 AO Alphen e/d Rljn The Netherland& Name: J.G.G. Wannet Director GLOBE RM610 PISTON AIR MOTOR MANUAL| INCLUDING AUXILIARIES · 51...
-
Page 52: Options & Accessories
Compact Piston Air Motors Pneumatic Brakes Compact Vane Air Motors Planetary Geared Vane Air Motor Vane Air Motors Specials: Costum Build This document, as well as the CAD data of the vane air motors are available for download on globe-airmotors.com. globe-airmotors.com...
