FrontLine RPW20 Instruction Manual

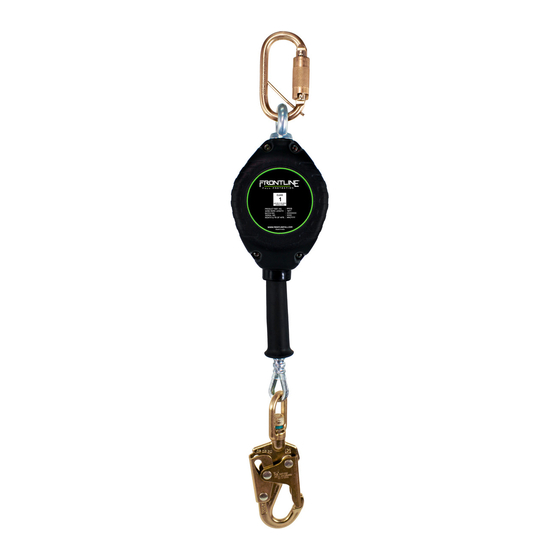

Self retractable lifeline
Hide thumbs

Advertisement

Quick Links

Download this manual
S R L
SELF RETRACTABLE
LIFELINE
INSTRUCTION MANUAL
THE INSTRUCTIONS APPLIES TO THE FOLLOWING
MODELS:
RPG10, RPG10, RPG15, RPG20, RPG25, RPG30, RPG40, RPG50,
RPG60, RPG70, RPG80, RPG100, RPW06, RPW06, RPW11,
RPW11, RPW15, RPW20, RPW25, RPW30, RPW40, RPW08,
RPW08, RAW062R, RAG15, RAG20, RAG25, RAG30, RAG40,
RAG50, RAG60, RAW15, RAW20, RAW25, RAW30, RAW40,
MIT061S, RPW061CA, RPW061R, RPW061S, RPW062R,
RPG30RE, RPG603W, RPG80RE, RPG10003W, RPG10LE,
RPG18LE, RPG25LE, RPG50LE, RPG80LE
BKLFL 01-XX
