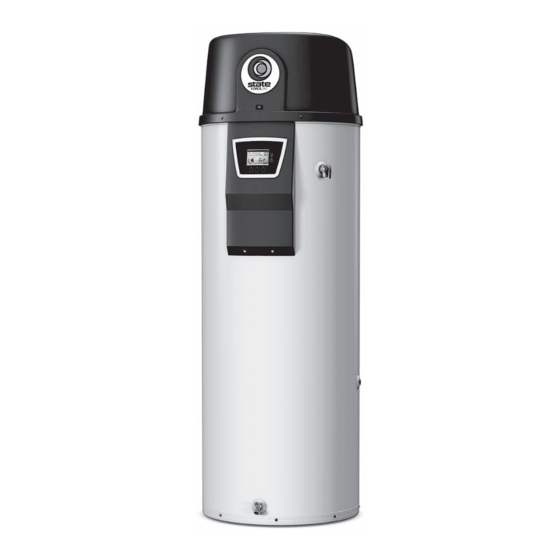

service handbook
commercial / residential gas water heaters
for models:
she 50-100 ne, she 50-100 pe
gp650 ytpdt, gp650 htpdt
series 120 & 121
500 Tennessee Waltz Parkway
Ashland City, TN 37015
installation considerations - pre service
checKs - water heater construction -
operation & service - troubleshooting
servicing should only be performed by a Qualified service agent
PRINTED IN THE U.S.A. 0410
318557-000
