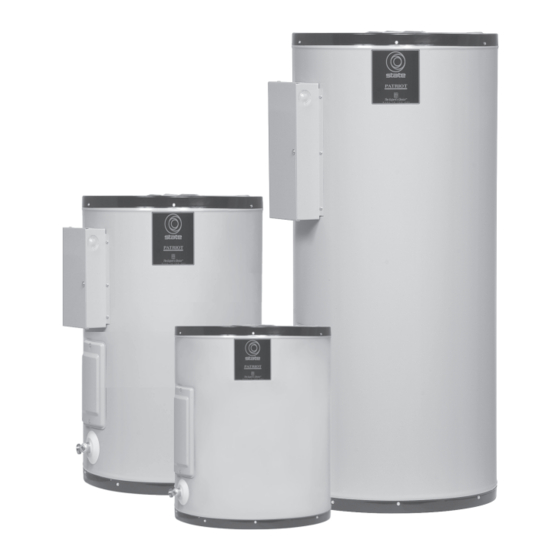

MODELS PCE 6-120 GALLONS
COMMERCIAL ELECTRIC WATER HEATERS
•
Installation
•
Operation
TEXT PRINTED OR OUTLINED IN RED CONTAINS INFORMATION RELATIVE TO YOUR SAFETY.
PLEASE READ THOROUGHLY BEFORE INSTALLING AND USING THIS APPLIANCE.
PLACE THESE INSTRUCTIONS ADJACENT TO HEATER AND NOTIFY OWNER TO KEEP FOR FUTURE REFERENCE.
Printed 0707
•
Electrical
•
Maintenance
500 Tennessee Waltz Parkway, Ashland City, TN 37015
www.statewaterheaters.com
•
Wiring Diagrams
•
Leakage Checkpoints
CAUTION
1
•
Replacement Parts
•
Limited Warranty
195202-003
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for State Water Heaters PCE 6-120
Summary of Contents for State Water Heaters PCE 6-120
- Page 1 MODELS PCE 6-120 GALLONS COMMERCIAL ELECTRIC WATER HEATERS • Installation • Electrical • Operation • Maintenance TEXT PRINTED OR OUTLINED IN RED CONTAINS INFORMATION RELATIVE TO YOUR SAFETY. PLEASE READ THOROUGHLY BEFORE INSTALLING AND USING THIS APPLIANCE. PLACE THESE INSTRUCTIONS ADJACENT TO HEATER AND NOTIFY OWNER TO KEEP FOR FUTURE REFERENCE.
-
Page 2: Rough-In Dimensions
ROUGH-IN DIMENSIONS ROUGH-IN DIMENSIONS Models No. of Tank Capacity Dimensions Elements US Gals. PCE 6 1OMSA PCE 10 1OMSA PCE 17 OMSA PCE 20 1OMSA PCE 30 2OLSA PCE 40 2OLSA PCE 50 2OLSA PCE 30 2ORTA PCE 40 2ORTA PCE 52 2ORTA PCE 66 2ORTA PCE 82 2ORTA... -
Page 3: General Safety Instructions
FOREWORD Thank you for buying this energy efficient water heater from State. We appreciate your confidence in our products. Detailed installation diagrams are in this manual. These diagrams will serve to provide the installer with a reference for the materials and method of piping suggested. - Page 4 • Sensors mounted in the drain pan that turn off the water supply to the entire home when water is detected in the drain pan. • Water supply shut-off devices that activate based on the water pressure differential between the cold water and how water pipes connected to the water heater.
-
Page 5: Wiring Diagrams
Size Temperature Rating of Conductor See Table 310-13 in Code 60° C (140° F) TYPES: (14-2), T, TW, - - - - - - Portion of Table 310-18 follows: Allowable Ampacities of Insulated Aluminum and Copper -Clad Aluminum Conductors. Not more than three conductors in Raceway or Cable or Direct Burial (Based on Ambient Temperature of 30° C, 86° F. These ampacities relate only to conductors described in Table 310-13 in Code. - Page 6 TYPICAL PIPING CONNECTIONS This page shows typical water heater installations by model designations. DUAL ELEMENTS HEATER INSTALL SUITABLE DRAIN PANS UNDER HEATERS TO PREVENT DAMAGE DUE TO LEAKAGE. REFER TO WATER HEATER LOCATION ON PAGE 2. INSTALL THERMAL EXPANSION TANK IF CHECK VALVE PRESSURE REDUCING...
-
Page 7: Operation
OPERATION CAUTION DO NOT OPERATE THE HEATER WITHOUT INSTALLING AN APPROVED TEMPERATURE AND PRESSURE RELIEF VALVE IN THE OPENING PROVIDED IN THE TANK. GROUND THE HEATER TO GUARD AGAINST ELECTRIC SHOCK FROM THE HEATER OR WATER SYSTEM. NEVER OPERATE THE HEATER WITHOUT FILLING WITH WATER PER THE FILLING INSTRUCTIONS. -
Page 8: Troubleshooting
3. Using a flat tip screwdriver, rotate the adjusting knob to the desired temperature setting. 4. Replace the covers and access panels, and turn on heater electrical supply. Valves for reducing point-of-use temperature by mixing cold and hot water are available, see Figure 5 . Also available are inexpensive devices that attach to faucets to limit hot water temperatures. - Page 9 WATER IS TOO HOT 1. Refer to TEMPERATURE REGULATION section. WATER HEATER MAKES SOUNDS 1. See MAINTENANCE WATER LEAKAGE IS SUSPECTED 1. Check to see if the heater drain valve is tightly closed. 2. The apparent leakage may be condensation which forms on cool surfaces of the heater and piping.
-
Page 10: Leakage Checkpoints
LEAKAGE CHECKPOINTS Instructions: Use this illustration as a guide when checking for sources of water leakage. You or your dealer may be able to correct what appears to be a problem. NOTE: Cover and Insulation shown removed to reveal tank top Where possible remove or lift top cover to examine threads of fittings installed into tank for evidence of leakage. -
Page 11: Repair Parts List
REPAIR PARTS LIST Now that you have purchased this water heater, should a need ever exist for repair parts or service, simply contact the company it was purchased from or direct from the manufacturer listed on the rating plate on the water heater. Selling prices will be furnished on request or parts will be shipped at prevailing prices and you will be billed accordingly. - Page 12 Item Description 1A ... Anode, Alum..9003942 ... 9003942 ... 9003943 ... 9003944 1B ... Anode, Mag..9002110 ... 9002110 ... 9004302 ... 9003721 2 ... Collar, Pipe ... 9004610 ... 9004610 ... 9004610 ... 9004610 3 ... Cover, Front ... 9003900 ... 9003900 ... 9003900 ... 9003900 4 ...
- Page 13 PCE 3020RTA thru PCE 12020 RTA (Refer to Repair Parts Table on Pages 14 & 15 for dual elements electric units) PCE 3020LSA thru PCE 5020LSA (Refer to Repair Parts Table on Pages 14 & 15 for dual elements electric units)
- Page 14 Item Description 1A ... Anode, Alum..9003888 ... 9003889 ...9003889 ... 9003944 ... 1B ... Anode, Mag..9003721 ... 9003922 ...9001834 ... 9003721 ... 2 ... T&P Relief Valve ... 9003741 ... 9003741 ...9003741 ... 9000071 ... 3 ... Gasket, Element ... 90000308 ... 90000308 ...90000308 ... 90000308 ... 4 ...
- Page 15 PCE 40 20RTA PCE 52 20RTA Series 110 Series 110 ... 9003889 ... 9003889 ... 9000029 ... 9003892 ... 9003893 ... 9003483 ... 9003487 ... 9003465 ... 9003650 ... 9000734 ... 9000071 ... 9000071 ... 9000071 ... 9000071 ... 9000071 ...
- Page 16 500 Tennessee Waltz Parkway, Ashland City, TN 37015 Phone: 800-821-2017 Fax: 800-644-9306 www.statewaterheaters.com...
