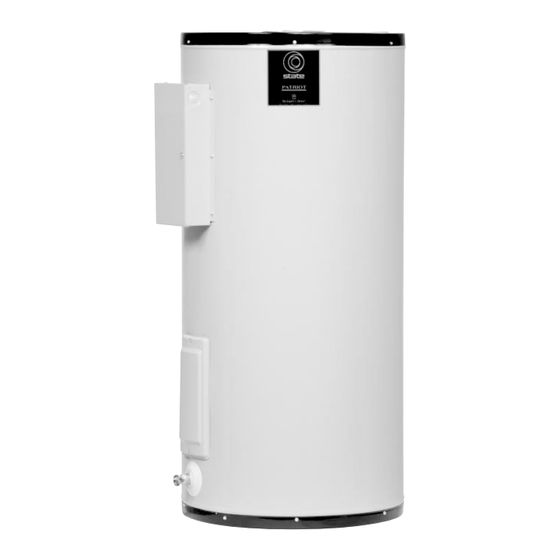

Designed for use as recovery heaters for
light-duty hot water supply service.
Patriot PCE water heaters are available
™
with tank capacities from 6 through 119
gallons. They can be installed for non-
simultaneous and single element operation
(maximum input up to 6 KW), or for
simultaneous dual-element operation
(maximum input up to 12 KW).
Zinc-Plated Copper Sheath
Heating Elements Standard
• Medium watt density design disperses
element temperature over larger
surface contact area to minimize scale
buildup, maximize efficiency and pro-
long element life
• Element options from 1.5 KW to 6
KW (non-simultaneous or simultane-
ous operation), recoveries from 6 gph
to 49 gph at 100°F rise
Standard Voltages for
Easy Installation
• 120V, 277V single-phase, and 208V,
240V and 480V unbalanced 3-phase
delta
• Easily converted to single-phase at ter-
minal block (except for 208V with
6000 watt elements
• Single-element heater, single-phase only
(see chart for dual-element options)
Factory-Installed
Terminal Block
• Provides electrical service to heater and
connects to block
Factory-Wired Controls
• Temperature control (adjustable from
110°F to 170°F on single-element;
120°F to 180°F on dual-element models)
August 2008R
C O M M E R C I A L
• Manual reset high temperature cutoff
• Factory wired for non-simultaneous
Glass-Lined Tank with
Anode Rod
• Provides long-lasting protection against
Maximum Hydrostatic Working
Pressure: 150 psi
Meets or exceeds the thermal
efficiency and/or standby loss
requirements of the U.S.
Department of Energy and current
edition of ASHRAE/IESNA 90.1
Other Patriot™ PCE
Series Features
• Simplified, color-coded circuitry for
• Bonderized undercoat on cabinet with
• Top inlet and outlet openings
• Foam insulation
• Drain valve
• UL-approved field conversion program
Three-Year Limited Tank
Warranty
• Consult written warranty shipped with
Page 1 of 4 ©2007 State Water Heaters Company
per element (dual-element models)
operation; easily converted to simulta-
neous operation
corrosion
ease of service
baked enamel finish
water heater, or contact State for
complete information
