Application note – Installation and using APP
English version
Authorised electrician
Important safety instructions
Android-APP
These instructions form part of the product and must be observed. They must also be stored in a place which is always freely
accessible. The copyright for these operating instructions is held solely by KACO new energy GmbH.
iOS-APP

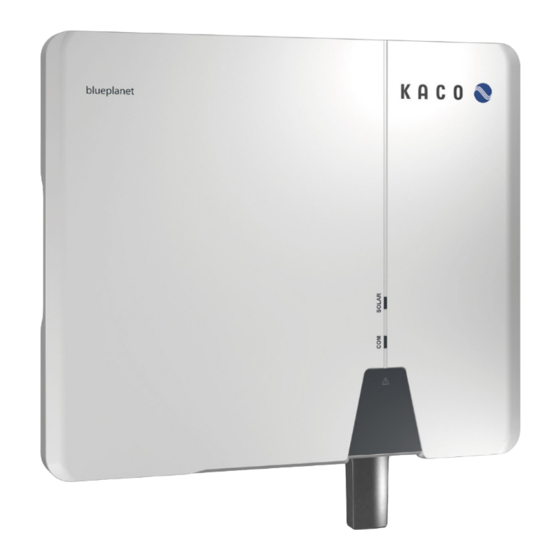

KACO blueplanet 3.0 NX3 M2
KACO blueplanet 5.0 NX3 M2
KACO blueplanet 8.0 NX3 M2
KACO blueplanet 10.0 NX3 M2
KACO blueplanet 15.0 NX3 M2
KACO blueplanet 20.0 NX3 M2
KACO blueplanet 25.0 NX3 M3
KACO blueplanet 30.0 NX3 M3
KACO blueplanet 33.0 NX3 M3
Advertisement
Table of Contents
Related Manuals for Kaco blueplanet 33.0 NX3 M3
Summarization of Contents
WLAN Network Configuration
1.1 Authorization
The app requires specific permissions to access smartphone features for network setup.
1.2 Network configuration
Steps to connect the Wi-Fi stick to a wireless network via SSID and password.
1.3 Change the router
Procedure to disconnect from the current router and connect to a new one.
1.4 Set the time zone to Wi-Fi stick
Configure the correct time zone on the Wi-Fi stick for accurate data logging.
Inverter Parameters Settings
2.1 Connect to Wi-Fi stick
Establish connection to the Wi-Fi stick using its own wireless hotspot.
2.1.1 Connect Wi-Fi stick directly through the Wi-Fi stick's hotspot
Establish connection to the Wi-Fi stick using its own wireless hotspot.
2.1.2 Connect Wi-Fi stick through the router
Connect the Wi-Fi stick to the router for internet access and configuration.
2.2 Connect to inverter
Establish communication with the inverter through the connected Wi-Fi stick.
2.2.2 Enabling Inverter functions
Activate or disable various inverter operational functions via the application.
2.2.3 Inverter gird parameter setting: grid standards
Select the relevant country's grid code standard for compliance and operation.
2.2.4 Inverter gird parameter setting: power up
Configure the voltage and frequency parameters required for the inverter to start up.
2.2.5 Inverter gird parameter setting: voltage protection
Set threshold limits and tripping times for over- and under-voltage protection.
2.2.6 Inverter gird parameter setting: frequency protection
Set threshold limits and tripping times for over- and under-frequency protection.
2.2.7 Inverter gird parameter setting: reconnection time
Define the observation period for voltage and frequency before reconnecting to the grid.
2.2.8 Inverter active power setting: power limit
Configure active power limits and ramp rates to meet grid operator requirements.
2.2.9 Inverter active power setting: over-frequency curve
Define the inverter's active power response to over-frequency conditions using curve settings.
2.2.10 Inverter active power setting: over-voltage curve
Define the inverter's active power response to over-voltage conditions using curve settings.
2.2.11 Inverter reactive power setting: running mode
Select the operational mode for reactive power control to manage grid voltage.
2.2.12 Inverter reactive power setting: fixed power factor
Set a constant power factor value for reactive power output control.
2.2.13 Inverter reactive power setting: Cos(Ф) – P curve
Configure reactive power output based on active power using a defined cos(φ)-P curve.
2.2.14 Inverter reactive power setting: fixed Q
Set a fixed value for reactive power (Q) output as a percentage of nominal power.
2.2.15 Inverter reactive power setting: Q-U curve
Control reactive power output as a function of voltage using a defined Q(U) curve.
2.2.16 Inverter parameters report
Generate and export a report of the inverter's current parameters and settings.
Inverter real time data
2.3.1 Connect to inverter
Establish a connection to the inverter to access live operational data and status.
2.3.2 Inverter's details
View detailed real-time parameters such as PV input, AC output, and energy totals.
Firmware Update
3.1 Wi-Fi stick firmware update
Update the firmware on the Wi-Fi stick using the dedicated mobile application.
3.2 Inverter firmware update
Update the firmware on the inverter unit using the dedicated mobile application.
