JRC JLR-10 Brochure

GPS COMPASS
JLR-10
The new technology JLR-10 is a type of compass which uses GPS
signals to produce the ship's heading information.

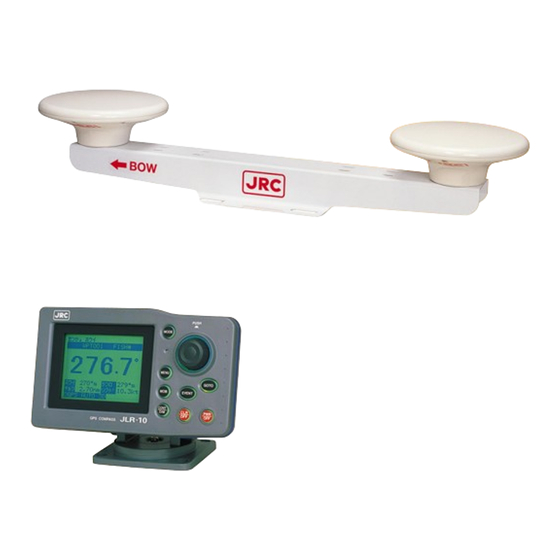

The compass consists of an antenna unit , processing unit and display unit.
Connection to JRC Radar models JMA-3800 and JMA-3900 series
can be fully operable in both the North Up and MARPA or ATA function.
JRC original 2 antenna type
The JLR-10 adopts 2 antenna type which is superior in
the direction accuracy, availability and easy installation.
No Maintenance and No Calib ration
The JLR-10 needs no maintenance, compared to a standard
gyrocompass which needs both regular maintenance and calibration.
In addition the JLR-10 has the following features.
Short Setting Time
The JLR-10 outputs direction information typically 3 minutes
after power on.
Including GPS R eceiver Functions
The JLR-10 outputs position and ground speed data as well as
ship's heading.
Synchro Signal output
The JLR-10 connects with Synchro-type of repeater compass,
radar, auto-pilot, soner and tide meter thorough the optional interface.
Direct connection to JRC JMA-3800 and JMA-3900 series Radars
The JLR-10 outputs high speed JRC NSK Format to directly connect
to the JRC Radar JMA-3800 and the JMA-3900.
( Optional )
