Summary of Contents for MSI Optix MAG342CQPV

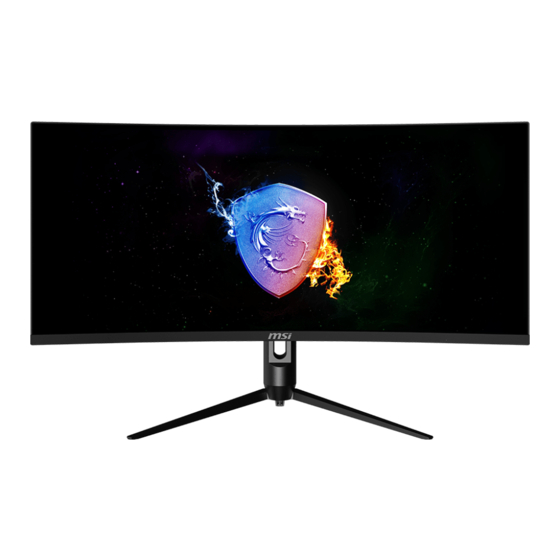

  • Page 1 Optix Series LCD Monitor Optix MAG342CQR (3DB6) Optix MAG342CQRV (3DB6) MAG342CQPV (3DB6)
  • Page 2: Table Of Contents

    Contents Copyright and Trademarks Notice ��������������������������������������������������������������������������iii Revision ������������������������������������������������������������������������������������������������������������������iii Technical Support ���������������������������������������������������������������������������������������������������iii Safety Instructions ���������������������������������������������������������������������������������������������������iv CE Conformity ���������������������������������������������������������������������������������������������������������vi FCC-B Radio Frequency Interference Statement ���������������������������������������������������vi WEEE Statement ���������������������������������������������������������������������������������������������������vii Chemical Substances Information �������������������������������������������������������������������������vii RoHS Statement ����������������������������������������������������������������������������������������������������vii Getting Started �������������������������������������������������������������������������������1-1 Package Contents ������������������������������������������������������������������������������������������������ 1-2 Installing the Monitor Stand ����������������������������������������������������������������������������������...
  • Page 3: Copyright And Trademarks Notice

    Preface Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co�, Ltd� All rights reserved� The MSI logo used is a registered trademark of Micro-Star Int’l Co�, Ltd� All other marks and names mentioned may be trademarks of their respective owners� No warranty as to accuracy or completeness is expressed or implied�...
  • Page 4: Safety Instructions

    Safety Instructions ◙ Read the safety instructions carefully and thoroughly� ◙ All cautions and warnings on the device or user’s manual should be noted� ◙ Refer servicing to qualified personnel only. Keep the User’s Guide that comes with the package for future reference� To prevent fire or shock hazard, keep this device away from humidity and high temperature�...
  • Page 5 Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products� ◙ Visit the MSI website and locate a nearby distributor for further recycling information� ◙ Users may also reach us at gpcontdev@msi�com for information regarding proper disposal, take-back, recycling, and disassembly of MSI products�...
  • Page 6: Ce Conformity

    1� this device may not cause harmful interference, and 2� this device must accept any interference received, including interference that may cause undesired operation� MSI Computer Corp� 901 Canada Court, City of Industry, CA 91748, USA (626)913-0828 www�msi�com...
  • Page 7: Weee Statement

    Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products�...
  • Page 9: Getting Started

    Getting Started This chapter provides you with the information on hardware setup procedures� While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity� IMPORTANT • The illustrations are for reference only� Your monitor may vary in appearance� •...
  • Page 10: Package Contents

    Package Contents 1� Monitor 2� Stand 3� Stand Base with Screw 4� Stand Screws x4 5� Power Adapter & Power Cord 6� HDMI Cable (Optional) 7� DisplayPort Cable (Optional) 8� Quick Start Guide 9� Warranty Card 10� Registration Card * Contact your place of purchase or local distributor if any of the items is damaged or missing�...
  • Page 11: Installing The Monitor Stand

    Getting Started Installing the Monitor Stand IMPORTANT Place the monitor on a soft, protected surface to avoid scratching the display panel� The holes for installing the stand can be also used for wall mount� Please contact your dealer for proper wall mount kit� 1�...
  • Page 12: Adjusting The Monitor

    Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities� IMPORTANT • Avoid touching the display panel when adjusting the monitor� • The reserved pivot 5° is designed for adjusting the level imbalance of some tables� 90mm...
  • Page 13: Monitor Overview

    Getting Started Monitor Overview...
  • Page 14 Menu Key Select Key Select Key Enter Key Power Button LED Indicator White: On Orange: Standby HDMI 1�4 Port (Optional) HDMI 2�0 Port (Optional) DisplayPort 1�2 (Optional) DisplayPort 1�4 (Optional) Headphone Jack Power Jack Kensington Lock...
  • Page 15: Connecting The Monitor To Pc

    Getting Started Connecting the Monitor to PC 1� Turn off your computer. 2� Connect the HDMI/DisplayPort cable from the monitor to your computer� 3� Assemble the monitor power adapter & power cord�(Figure A) 4� Connect the power adapter to the monitor power jack�(Figure B) 5�...
  • Page 17: Osd Setup

    OSD Setup This chapter provides you with essential information on OSD Setup� IMPORTANT All information is subject to change without prior notice�...
  • Page 18: Osd Key

    OSD Key The monitor comes with a set of OSD Key that helps to control the On-Screen Display (OSD) menu�...
  • Page 19 OSD Setup Without entering OSD menu, you can use these OSD keys as hot keys for quick seetings� OSD Key Function Basic Operations Game Mode ■ Press button to enter this setting� ■ Press button to select� ■ Press button to confirm and exit. Screen Assistance ■...
  • Page 20: Osd Setup Menu

    OSD Setup Menu Press button to launch the On-Screen Display (OSD) main menu� In OSD screen, buttons to tune the desired function to suit your personal preferences� These OSD keys operations are as follows� OSD Key Basic Operations ■ Exiting the current menu ■...
  • Page 21 OSD Setup Optix MAG342CQR Optix MAG342CQRV/ MAG342CQPV h Gaming 1st Level Menu 2nd/3rd Level Menu Description Game Mode User User mode� First person shooting game mode� Racing Racing game mode� Strategic game mode� RPG game mode�...
  • Page 22 1st Level Menu 2nd/3rd Level Menu Description Night Vision ■ This function optimizes background brightness and is recommended for FPS Normal games� Strong Strongest A�I� Response Time Normal ■ Users can adjust Response Time in any Mode� Fast Fastest Anti Motion Blur ■...
  • Page 23 OSD Setup 1st Level Menu 2nd/3rd Level Menu Description Adaptive-Sync ■ Adaptive-Sync prevents screen tearing� (OFF) ■ DisplayPort or HDMI default is OFF and can be adjusted ON/OFF in any mode, (ON) any resolution, any input source and any screen refresh rate� ■...
  • Page 24 h Image 1st Level Menu 2nd/3rd Level Menu Description Brightness 0-100 ■ Users can adjust Brightness in User, RTS, RPG and Reader mode� Contrast 0-100 ■ Users can adjust Contrast in any Mode� Sharpness ■ Users can adjust Sharpness in any Mode� ■...
  • Page 25 OSD Setup h PIP/PBP 1st Level Menu 2nd/3rd Level Menu Description ■ PIP (Picture in Picture) allows users to simultaneously display multiple video Source sources on one screen� One program is HDMI1 displayed on the full screen at the same HDMI2 time as one or more other programs are displayed in inset windows�...
  • Page 26 h Setting 1st Level Menu 2nd Level Menu Description Language 繁體中文 ■ Language factory default is English� ■ Users have to press the Middle Button to confirm English and apply the Language setting� Français ■ Language is an independent setting� Users’ own Deutsch language setting will override the factory default�...
  • Page 27: Appendix

    Appendix IMPORTANT All information is subject to change without prior notice�...
  • Page 28: Specifications

    Specifications Optix MAG342CQRV (3DB6) Model Optix MAG342CQR (3DB6) MAG342CQPV (3DB6) Size 34 inch Curvature 1500R Panel Type Resolution 3440x1440 @144hz 3440x1440 @100hz Aspect Ratio 21:9 Brightness (nits) 300 nits (typ�) 250 nits (typ�) Contrast Ratio 4000:1 (typ�) 3000:1 (typ�) Refresh Rate...
  • Page 29 Appendix Optix MAG342CQRV (3DB6) Model Optix MAG342CQR (3DB6) MAG342CQPV (3DB6) VESA Mounting ■ Plate Type: 75 x 75 mm ■ Screw Type: M4 x 10 mm ▶ Thread Diameter: 7 mm ▶ Thread Pitch: 7�9 mm ▶ Thread Length: 35 mm Dimension (W x H x D) 808�6 x 270�0 x 514�2 mm...
  • Page 30: Preset Display Modes

    Preset Display Modes Standard Resolution Optix MAG342CQR (3DB6) HDMI1 HDMI2 640x480 @60Hz 640x480 @75Hz Dos-Mode 720x400 @70Hz 720x480 @60Hz 720x576 @50Hz SVGA 800x600 @60Hz 800x600 @72Hz 800x600 @75Hz XVGA 1024x768 @60Hz 1024x768 @75Hz SXVGA 1280x720 @50Hz 1280x1024 @60Hz 1280x1024 @75Hz...
  • Page 31 Appendix Standard Resolution Optix MAG342CQRV (3DB6) MAG342CQPV (3DB6) HDMI1 HDMI2 640x480 @60Hz 640x480 @75Hz Dos-Mode 720x400 @70Hz 720x480 @60Hz 720x576 @50Hz SVGA 800x600 @60Hz 800x600 @72Hz 800x600 @75Hz XVGA 1024x768 @60Hz 1024x768 @75Hz SXVGA 1280x720 @50Hz 1280x1024 @60Hz 1280x1024 @75Hz 1280x1024 @100Hz WXGA+ 1440x900 @60Hz...
  • Page 32: Troubleshooting

    Troubleshooting The power LED is off. ■ Press the monitor power button again� ■ Check if the monitor power cable is properly connected� No image� ■ Check if the computer graphics card is properly installed� ■ Check if the computer and monitor are connected to electrical outlets and are turned on�...
