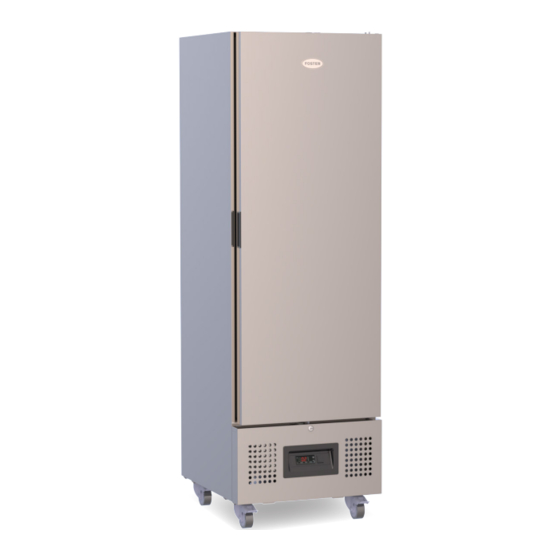

- Page 1 User Manual Slimline FSL400H, FSL400M, FSL400L, FSL400G FSL800H, FSL800M, FSL800L, FSL800G...
- Page 2 Four Steps to extend the life of your appliance Getting to know your new Foster appliance Installation Using the appliance Maintenance www.fosterrefrigerator.com...
- Page 3 All installations must conform to local and municipal regulations and directives. In case of doubt contact your Foster authorised distributor or the Foster Technical Department. The information contained in this manual is current at the time of publication and is subject to change without notice.
-
Page 4: Climate Class
Climate Class Climate class indicated on the serial plate shows the ambient temperature & humidity at which this appliance has been tested, for the purposes of establishing values in line with European standards. Climate Class Temperature Relative humidity 30˚C 40˚C Electrical Safety This equipment shall be connected to an electrical supply protected by a Residual Current Device (RCD). -
Page 5: Disposal Requirements
Disposal Requirements This appliance contains components and materials which can be harmful to the environment if not disposed of correctly. Disposal of this appliance should be carried out by a suitably licensed waste contractor in accordance with national laws and regulations which may be in force at the time. Slimline - User Manual... -
Page 6: Installation
Installation Removal of packaging Prior to carrying out this operation please ensure that these instructions have been read, understood and that the necessary personnel and tools are available to ensure compliance with the instructions. Tools required: A sharp retractable knife or scissors Pliers or cutters suitable to cut hard plastic The FSL400H, FSL400M, FSL400L and FSL400G weigh up to 130kg when empty and require at least 2 people to carry out these instructions. - Page 7 FSL400 FSL800 Remove outer plastic and cardboard. Take care Remove outer plastic and cardboard. Take care not to damage the appliance with any sharp not to damage the appliance with any sharp objects used to remove the packaging. objects used to remove the packaging. Position the pallet against a flat surface of a Position the pallet against a flat surface of a similar height to the pallet.
- Page 8 Support the appliance on the front, cut the Support the appliance on the front, cut the support straps on both sides and rear then support straps on both sides and rear then unlock the castors. unlock the castors. Support appliance at the front Support appliance at...
- Page 9 Start-Up and Test Sequence After unpacking, clean (cleaning directions supplied within this manual) and allow the appliance to stand for 60 minutes before turning on. Ensure the appliance is situated on a firm, level surface, away from both hot and cold air sources, as this will affect its performance.
-
Page 10: Using The Appliance
Using the appliance Display Icons and Buttons +1.5 Icon 1 Icon 2 °C Icon 3 Icon 4 Icon 5 Button 4 Button 1 Button 2 Button 3 Icon Button Alarm Warning Info & Set Point Thermostat Output Manual Defrost & Decrease Active Value Fan Output Active... -
Page 11: Internal Light
To amend the Set Point press and hold button 1, then while keeping button 1 pressed use buttons 2 and 3 to set the desired value. If the Set Point cannot be adjusted to the value required please contact your authorised Foster dealer for advice When button 1 is released the new value will be stored automatically. - Page 12 Shelf fitting x 12 Insert top of clip into slot as desired shelf position Compress clip to insert into lower slot Door Lock To lock the door insert the key and turn 90° clockwise. Turn anticlockwise to unlock. www.fosterrefrigerator.com...
-
Page 13: Cleaning And Maintenance
Maintenance Cleaning and Maintenance IMPORTANT: This appliance is heavy. When moving the appliance care should be taken and correct safe practices followed. Prior to cleaning ensure that the correct PPE is available and utilised and that the appliance is switched off and disconnected from the power supply. - Page 14 Cleaning Condenser Air Grill Use a soft brush or vacuum to remove loose dust and dirt from the Condenser Air Grill. Condenser Regular cleaning of the condenser (located behind the Condenser Air Grill) increases energy efficiency and prolongs the life of your appliance. Never use a wire brush, abrasive or corrosive materials to clean the condenser.
-
Page 15: Regular Maintenance
The alarm will reset if the temperature falls to a normal level. If this does not happen please contact your authorised dealer or Foster Service. - Page 16 If the reason for the malfunction cannot be identified, disconnect the electrical supply from the unit and contact your authorised dealer or Foster Service. When requesting a service call, please quote the model and serial number which can be found on the inside of the appliance on the right hand wall and begins with ‘E’ .
- Page 17 Notes Slimline - User Manual...
- Page 18 Notes www.fosterrefrigerator.com...
- Page 19 Notes Slimline - User Manual...
- Page 20 By Appointment to Her Majesty Queen Elizabeth II Suppliers of Commercial Refrigeration Foster Refrigerator, King’s Lynn For more information: For service and spares: +44 (0) 1553 698485 For service +44 (0) 1553 780333 regional@foster-gamko.com service@foster-gamko.com fosterrefrigerator.com For parts +44 (0) 1553 780300 parts@foster-gamko.com...
