Summarization of Contents
General Safety Warnings
Work Area Safety
Keep work area clean and well lit. Avoid explosive atmospheres. Keep bystanders away.
Electrical Safety
Match plugs to outlets. Avoid body contact with earthed surfaces. Keep tools dry. Do not abuse cord. Use outdoor extension cords.
Personal Safety
Stay alert. Use PPE. Prevent unintentional starting. Remove adjusting keys. Do not overreach. Dress properly. Use dust extraction. Be aware of complacency.
Power Tool Use and Care
General Use and Care
Do not force tool. Use correct tool. Repair faulty tools. Disconnect power before adjustments. Store idle tools safely. Maintain tools. Keep cutting tools sharp. Use according to instructions. Keep handles dry.
Battery Tool Use and Care
Recharge with specified charger. Use designated battery packs. Keep battery away from metal objects. Avoid battery liquid contact. Do not use damaged batteries. Do not expose to fire/heat. Follow charging instructions.
Service and Maintenance
Serviced by qualified technician with identical parts. Never service damaged battery packs.
Additional Safety Warnings
General Operation Safety
Start behind handlebars. Check discharge opening/grass catcher. Keep hands/feet clear. Avoid uneven terrain. Stop product for transport/crossing surfaces. Do not tilt while running. Lift front max 5cm if needed. Stop product, remove key/battery for maintenance.
Battery Safety Precautions
Reduce risk of short circuit. Do not immerse product/battery/charger in fluid. Charge between 10-38°C. Store between 0-20°C. Use between 0-40°C.
Product Maintenance and Symbols
General Maintenance
Use original parts. Serviced by qualified technician. Make described adjustments. Turn off product, remove key/battery. Check bolts. Clean plastic parts. Replace damaged blades in sets. Prevent finger entrapment.
Clearing Blockages
Turn off product, remove key/battery. Wear heavy-duty gloves. Check/clear grass catcher. Check/clear discharge chute.
Product Symbols
Explanation of safety alert, thrown objects, eye protection, ear protection symbols.

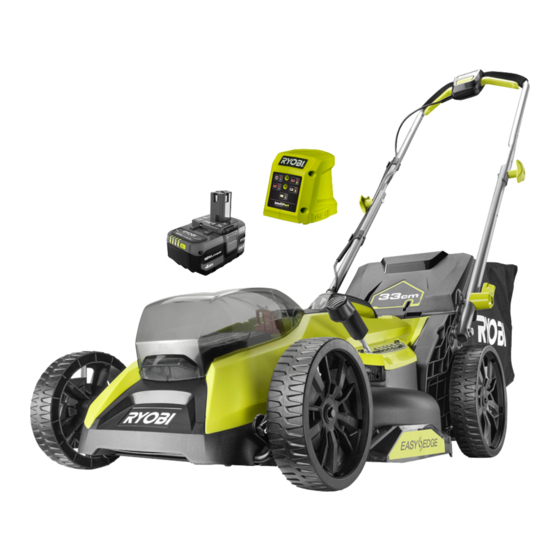

Know Your Product
Product Overview Diagram
Diagram identifying key components of the lawnmower and accessories.
Getting Started
Initial Setup and Preparation
Wear PPE. Set bottom handle. Attach top handle. Secure handles with knobs.
Grass Catcher Installation
Insert grass catcher frame into bag. Ensure carry handle is on top. Secure catcher to mower. Lower rear door.
Operating the Lawnmower
Handle and Cable Setup
Ensure handle locks are tight. Insert motor control cable into retainers. Secure cable. Route cable properly.
Starting the Lawnmower
Open battery door. Insert battery pack. Ensure latch clicks. Secure battery pack. Insert safety key. Close battery door. Press start button, squeeze on/off lever. Wait for blade to reach speed.
Operation Procedures
Using the Grass Catcher
Raise rear door, install catcher, hook, secure, lower door. Insert battery pack, safety key, close door.
Starting and Stopping the Mower
Press start button, squeeze on/off lever. Release start button, hold on/off lever to use. Release on/off lever to stop.
Cutting Features
Cutting with Easy Edge
Allows cutting grass along walls or edges. Pulls grass towards blade.
Adjusting the Cutting Height
Pull lever, raise/lower deck. Secure handle in one of seven slots. Start at highest position.
Maintenance Procedures
Replacing the Blade
Remove battery/key. Unhook grass catcher. Tilt product. Clean deck/blade. Wear gloves. Insert wood block, loosen nut, remove blade, install new blade, tighten nut.
Cleaning and Storage
Cleaning the Lawnmower
Remove battery/key. Remove foreign materials. Clean with soft, dry cloth/brush. Do not use water. Raise rear door, remove catcher. Loosen knobs, fold handle.
Storing the Lawnmower
Fold bottom handle. Fold grass catcher. Store in cool, dry, well-ventilated place. Keep away from corrosive agents. Do not store outdoors.
Product Specifications
Technical Specifications
Model, voltage, cut width, speed, weight, torque, vibration, noise levels.
Battery and Charger Information
Lists models for battery packs and chargers, and compatible battery packs.
Replacement Parts
Lists part number for the blade.
