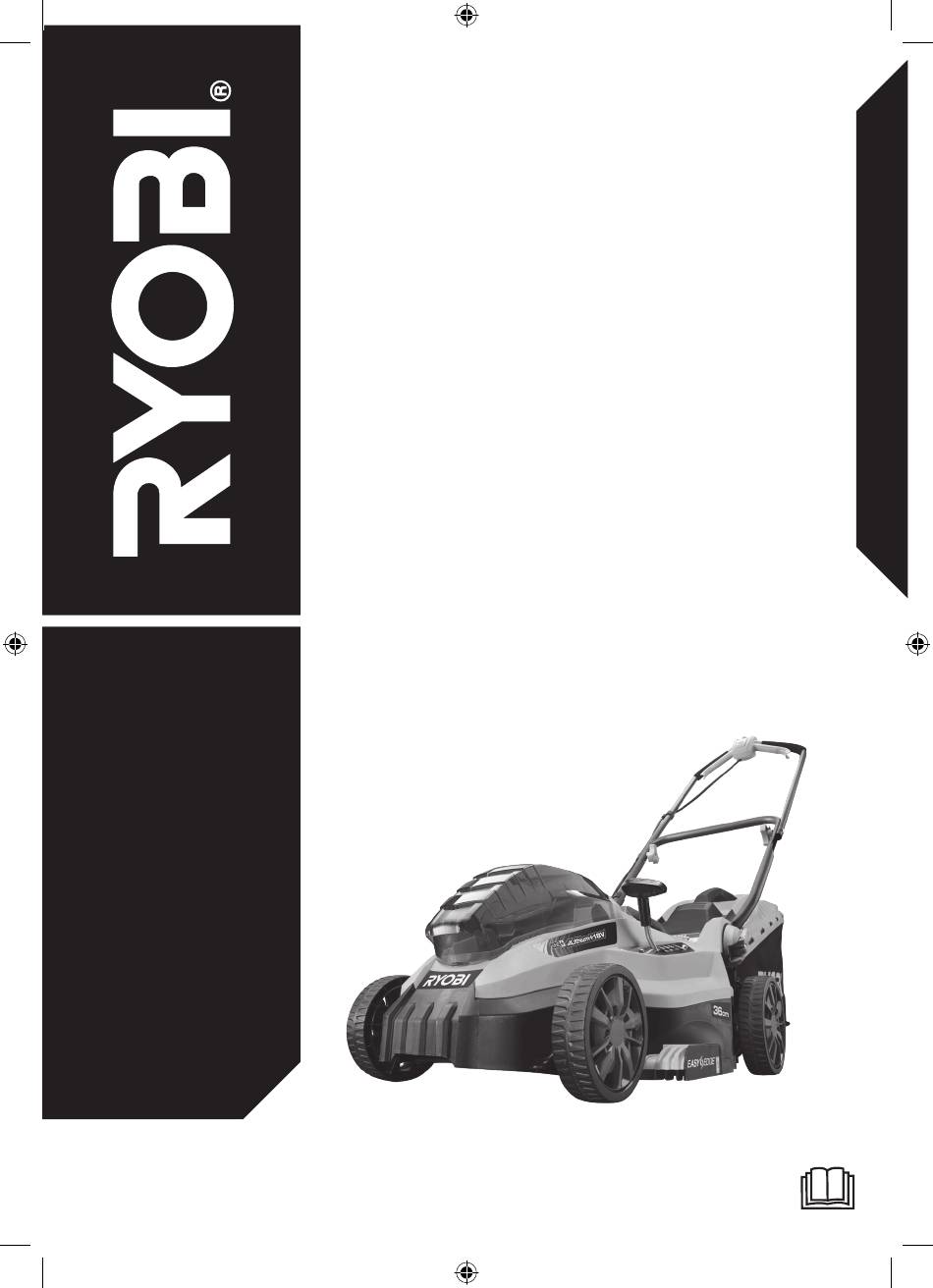

  • Page 1 ORIGINAL INSTRUCTIONS Cordless Lawn Mower RLM18X36L40 OLM1836H...
  • Page 2 Important! It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product. Subject to technical modification.

  • Page 3: Intended Use

    Safety, performance, and dependability have product by a person responsible for their been given top priority in the design of your safety. Children should be supervised cordless lawn mower. to ensure that they do no play with the product. INTENDED USE ■...

  • Page 4: Lawn Mower Safety Warnings

    atmospheres, such as in the presence packs may result in a risk of fire, electric of flammable liquids, gases, or dust. The shock, or injury to persons. product creates sparks which may ignite ■ When battery pack is not in use, keep it away the dust or fumes.
  • Page 5 ■ Frequently check the grass catcher for from blades. Do not put hands or feet near wear, holes, or deterioration. or under rotating parts. ■ Replace worn or damaged parts before ■ Never pick up or carry the product while it operating the product.

  • Page 6: General Mowing Tips

    ■ A higher cutting height extends the run OVERLOAD AND OVERHEAT time of the battery. PROTECTION The product has an overload protection TRANSPORTATION AND STORAGE device. When overloading is detected, the ■ Turn off the product, and remove the product automatically limits the current rise isolator key and the battery pack.

  • Page 7: Residual Risks

    hazards may arise in use and the operator WARNING should pay special attention to avoid the Servicing requires extreme care following: knowledge and should be performed only ■ injury caused by vibration by a qualified service technician. Have the ● Always use the right tool for the job.

  • Page 8: Symbols On The Product

    Charger x 1 requirements. ■ Grass catcher x 1 The guaranteed sound power NOTE: For OLM1836H, the battery pack and level is 94 dB. charger are sold separately. SYMBOLS ON THE PRODUCT SYMBOLS IN THIS MANUAL Read and understand all...
  • Page 9 WHAT’S IN THE BOX RLM18X36L40...
  • Page 10 WHAT’S IN THE BOX OLM1836H 13mm...

  • Page 11: Know Your Product

    Know your product KNOW YOUR PRODUCT Handle 10. Battery Start button 11. Isolator key Tightening knob for handles 12. Mower blade Grass catcher full indicator 13. Battery door Grass catcher 14. Height adjustment lever Quick-release fastener 15. Motor control cable retainer Rear wheel 16.

  • Page 12: Getting Started

    GETTING STARTED Wear full eye protection, ear protection, non- Set the handles in the correct operating slip heavy-duty gloves, substantial footwear, position. Ensure that the locking pin on the and long trousers at all times while operating lower handle snaps in place. the product.
  • Page 13 GETTING STARTED GETTING STARTED Rotate the quick release fastener on each side until it aligns with the lower handles, then lock Install the upper handle according to the Route the motor control cable through the the fasteners in place. preferred height, aligning the upper handle motor control cable retainers.
  • Page 15 OVERVIEW Using the product p.15 Cutting with Easy Edge Adjusting the cutting height p.17 p.18...
  • Page 16 OVERVIEW Replacing the blade Cleaning the product p.19 p.21 Emptying the grass catcher Storing the product p.22 p.23...

  • Page 17: Operation

    OPERATION USING THE PRODUCT WARNING: Avoid holes, ruts, bumps, rocks, property stakes, or other hidden objects. WARNING: Do not operate the product on inclines greater than 15°. Mow across the face of slopes, never up and down. Open the battery door. Max.15˚...
  • Page 18 OPERATION Insert the isolator key, and close the battery door. NOTE: The product will not start without the isolator key. Ensure that the isolator key is inserted into the product. Press and hold down the start button, then pull and hold either side of the on/off trigger.
  • Page 19 OPERATION CUTTING WITH EASY EDGE Easy Edge allows the product to easily cut the grass along walls or the edge of your lawn. NOTE: The grass combs pull grass towards the blade when the product is running along a wall or the edge of your lawn.

  • Page 20: Adjusting The Cutting Height

    OPERATION ADJUSTING CUTTING HEIGHT To adjust the deck height, pull the height adjustment lever towards the wheel, then raise or lower the deck to the preferred height. Make sure that the handle is always secured into one of the five height slots.

  • Page 21: Replacing The Blade

    OPERATION REPLACING THE BLADE WARNING: Keep bare hands away from the blade. Use heavy- duty gloves when replacing the blades. Open battery door. Remove the isolator key and the battery pack. Close the battery door. Raise the rear door. Remove the grass catcher.
  • Page 22 OPERATION Remove and properly dispose of the blade. Install the new blade. Insert a wood chock between the blade and cutting deck to stop the blade from spinning during tightening. Tighten the blade nut to the correct torque. Please tighten Please tighten to 9.96~15.12 ft pound to >10ft pound...

  • Page 23: Maintenance

    MAINTENANCE CLEANING THE PRODUCT After each use, clean the product with a soft, dry cloth, or cleaning brush. WARNING: Do not use water to clean the product.

  • Page 24: Emptying The Grass Catcher

    MAINTENANCE EMPTYING GRASS CATCHER NOTE: When the indicator flap is up, the grass catcher continues to collect and store grass clippings. NOTE: When the indicator flap is down the grass catcher is full. Stop mowing, and empty the grass catcher. Raise the rear door, and remove the grass catcher.

  • Page 25: Storing The Product

    STORAGE STORING THE PRODUCT Open battery door. Remove the isolator key and the battery pack. Close the battery door. Remove the grass catcher. Loosen the knobs of the upper handle, and fold down the upper handle. Unlock quick-release fasteners, and fold down the lower handle.
  • Page 26 STORAGE Fold the grass catcher, and place the grass catcher on top of the product. Store the product in a cool, dry, well-ventilated place that is inaccessible to children. Keep the product away from corrosive agents such as garden chemicals and de-icing salts.

  • Page 27: Product Specifications

    PRODUCT SPECIFICATIONS BATTERY AND CHARGER Cordless Lawn Mower Model RLM18X36L40 OLM1836H Model RLM18X36L40/ Battery RB18L40 OLM1836H pack Rated voltage 18V d.c Weight 0.73 kg Ingress protection IPX1 Charger RC18120 Width of cut 36 cm Weight 0.4 kg Height of cut...
  • Page 28 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149, Melbourne, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, RYOBI is a trademark of Ryobi Limited, Highbrook, Auckland 2013, New Zealand and is used under license. 099321027001-01...
