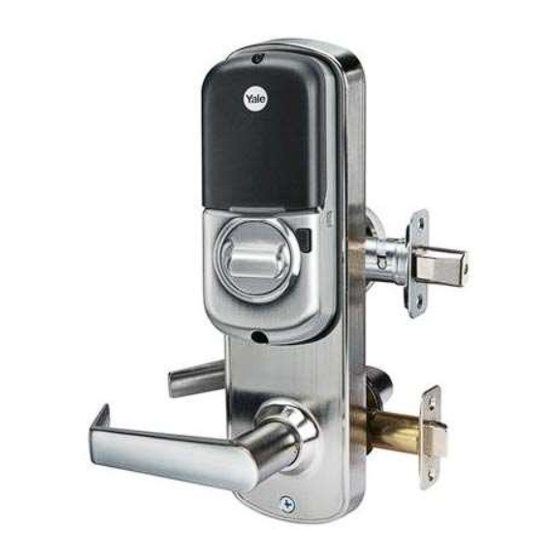

Yale real Living YRC622 Installation And Programming Instructions

Electronic interconnected touchscreen

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Yale Assure Lock

Electronic Interconnected Touchscreen

Installation and Programming Instructions

(YRC226/YRC426/YRC620/YRC622)

Inside

Outside

of Door

4" Touchscreen Shown - 5.5" Available

Network Module

Before you begin

(Optional - Not

available on

YRC620)

DOWNLOAD

THE BILT APP

for step-by-step installation

instructions & to register

your product

Retroﬁtting or modifying this product may impact ﬁre rating, safety features and warranty.

Consult with code speciﬁcations to ensure compliance with all codes and ratings.

P/N

YRL EMICL TSINSTL FUL

Rev G

Table of Contents

Need help?

Do you have a question about the real Living YRC622 and is the answer not in the manual?

Questions and answers

Summary of Contents for Yale real Living YRC622

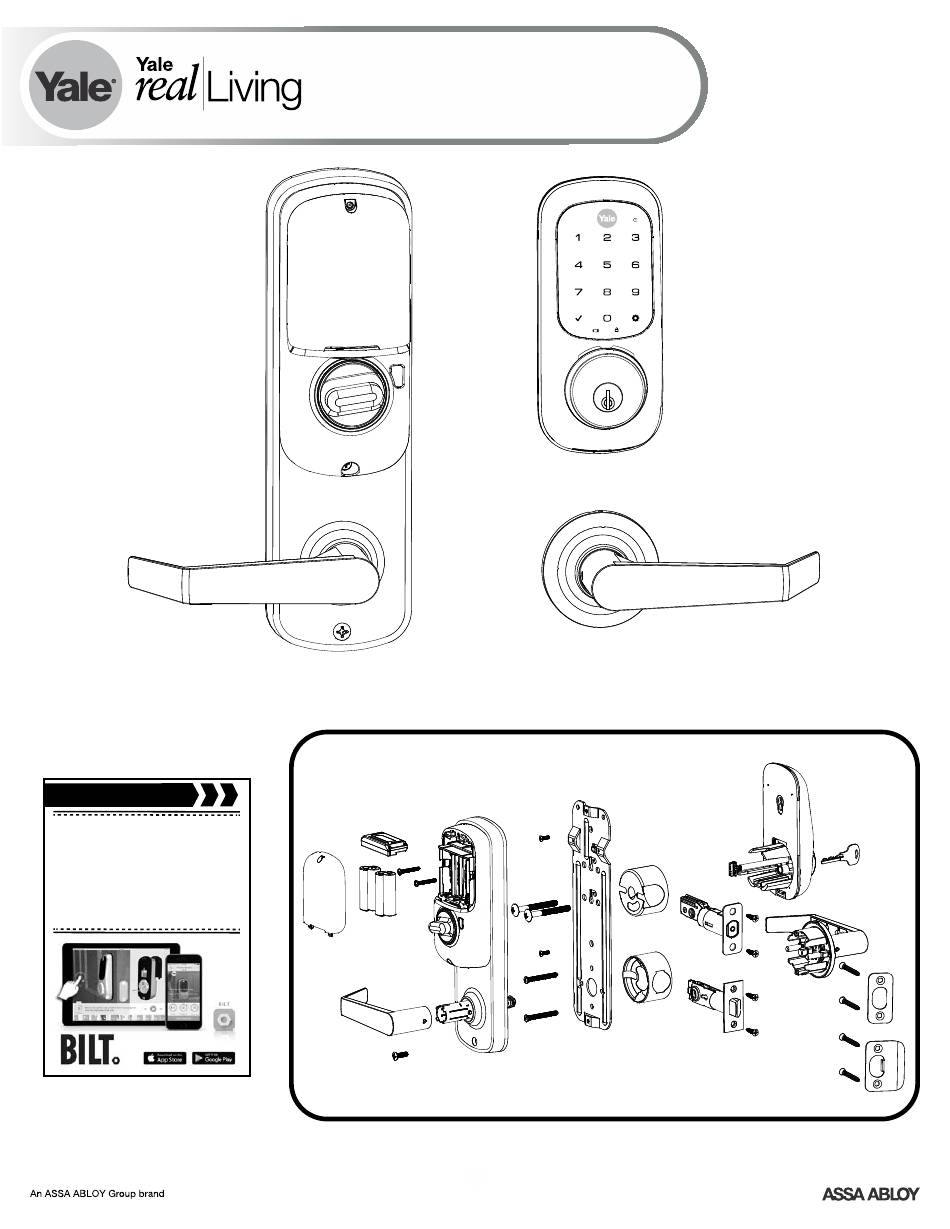

Page 1 Yale Assure Lock ® ® Electronic Interconnected Touchscreen ® Installation and Programming Instructions (YRC226/YRC426/YRC620/YRC622) Inside Outside of Door of Door 4" Touchscreen Shown - 5.5" Available Network Module Before you begin (Optional - Not available on YRC620) DOWNLOAD THE BILT APP for step-by-step installation instructions &...
Page 2 Before You Begin Template Network Module (Optional - Not available on YRC620) 1/8" 3/32" 1/8" 1" 2-1/8" 4-1/2" (114) 1-3/8" (35mm) Min to 1-3/4" (44.5mm) Max YRL EMICL TSINSTL FUL Rev G...
Page 3 Mark Door Reference Lines EXISTING 2-3/8" or 2-3/4" Backset Template YRL EMICL TSINSTL FUL Rev G...
Page 4 Preparing Door (if necessary) Template 4" 5.5" 2-3/8" Ø2-1/8" Ø1" 2-3/4" Drill holes 1/2 way thru door then complete from other side to prevent splitting. YRL EMICL TSINSTL FUL Rev G...
Page 5 Installing Strike Plates 7-16 / 8-32 x 1" UNCWS Frame 1" Dia. x 1"Deep Frame Inside of Door 1" Dia. x 1/2"Deep Door Frame YRL EMICL TSINSTL FUL Rev G...
Page 6 Determining Handing The hand of a door is determined from the secure side of the door. The term "secure" means the side from which you initially unlock and enter. Left Hand “ ”, Hinges Left. Left Hand Reverse " ", Hinges Left. Open Inward.
Page 7 Changing Handing (if necessary) 4" Left Hand to 4" Right Hand Shown 4-24 x 1/4" PPHMS DO NOT TAMPER WITH OR LOOSEN E-CLIP AND ITS ASSEMBLY DO NOT LOOSEN THESE 6 SCREWS OR REMOVE COVER YRL EMICL TSINSTL FUL Rev G...
Page 8 Changing Handing (if necessary) continued YRL EMICL TSINSTL FUL Rev G...
Page 9 Lockset Handing Conﬁgurations For 5.5" For 5.5" For 4" 4" Right Hand For 4" 4" Left Hand Test Lever and Thumbturn After handing is changed, check that lever and thumbturn rotate freely. YRL EMICL TSINSTL FUL Rev G...
Page 10 Installing Fire Cups Inside of Door Both Fire Cups and a marked Latchbolt must be used to qualify for listing. YRL EMICL TSINSTL FUL Rev G...
Page 11 Adjusting Deadbolt Latch (If adjustable deadbolt latch provided) default 2-3/8" position optional 2-3/4" position Pull Press YRL EMICL TSINSTL FUL Rev G...
Page 12 Installing Deadbolt Latch & Latchbolt 7-16 / 8-32 x 1" UNCWS Inside of Door Bolt must be in retracted (unlocked) position before installing. Ensure arrow stamped on deadbolt Choose latchbolt based on backset. (2-3/8" or 2-3/4") Curved edge of latchbolt faces direction door closes.
Page 13 Installing Exterior Deadbolt M6x55 PPHMS Bolt must be in retracted (unlocked) position. Inside of Door YRL EMICL TSINSTL FUL Rev G...
Page 14 Installing Lock Chassis 10-32 x 1-1/2" PPHMS Inside of Door YRL EMICL TSINSTL FUL Rev G...
Page 15 Securing Back Plate to Door #6-32 x 1/2" POHMS Inside of Door Drill two pilot holes Ø1/8" x 1/2" deep #6-32 x 1/2" POHMS screws must be used to qualify for listing. YRL EMICL TSINSTL FUL Rev G...
Page 16 Testing Deadbolt & Latchbolt Operation Outside of Door YRL EMICL TSINSTL FUL Rev G...
Page 17 Remove Battery Cover Loosen screw to remove cover. YRL EMICL TSINSTL FUL Rev G...
Page 18 Attaching the Cable Assembly Align wire connectors so that tabs slide into slots. Tug gently on cables to test that connectors are secure. Slot Inside of Door Slot Cable must be routed as shown to avoid interference with movement of lock. YRL EMICL TSINSTL FUL Rev G...
Page 19 Installing Interior Lock Orientation must match. Do not fasten lock to back plate until properly ﬁtted. Inside of Door Turn thumbturn to adjust slot orientation. YRL EMICL TSINSTL FUL Rev G...
Page 20 Installing Interior Lock continued 10-32 x 5/8" POHMS 6-32 x 1" PPHMS Inside of Door DO NOT LOOSEN THIS SCREW YRL EMICL TSINSTL FUL Rev G...
Page 21 Installing Interior Lever Inside of Door " SNAP " Inside of Door Pull lever to ensure it is secure. YRL EMICL TSINSTL FUL Rev G...
Page 22 Testing Final Latchbolt Operation Inside of Door Outside of Door YRL EMICL TSINSTL FUL Rev G...
Page 23 Testing Final Deadbolt Operation If testing fails, go back to beginning of Step 12 and check installation. YRL EMICL TSINSTL FUL Rev G...
Page 24 Installing Optional Network Module (Optional - Not available on YRC620) DO NOT install network module with batteries in unit. Damage may occur. Installing Batteries & Cover "Welcome to ..." Tighten screw to replace cover. Bolt must be in retracted (unlocked) position before installing...
Page 25 Press to Select Press to complete Lock will cycle motor to complete handing. Congratulations, you've installed the Yale Assure Lock Electronic Interconnected Touchscreen! ® ® Continue with the Programming Instructions to customize your product. YRL EMICL TSINSTL FUL Rev G...
Page 26 Hardware Troubleshooting Cycle lock in both the locked and unlocked positions. If problems are found: Bolt will not extend and motor is grinding a. Enter your Master code. b. With the bolt retracted, press menu Option 3 for Advanced Lock Settings. c.
Page 27 Changing Lock: Replacing Cylinder To remove cylinder: A. Remove touchscreen from door. B. Remove pan head screw. C. Remove cylinder by letting it drop out of assembly. Touchscreen shown removed from door. Resetting Lock to Factory Default Interior Lock When resetting the lock, all user codes, including the (4"...
Page 28 Programming Instructions Touchscreen "P" Key (Return to Previous) Interior Lock Low Battery Indicator Lockout Mode Privacy Mode Button Speaker Lock Activation Master Code must be created before any further programming. Max User Codes = 250 with Z-Wave Plus or ZigBee network module Max User Codes = 25 without network module or with iM1 network module Max User Codes = 12 with Bluetooth YRL EMICL TSINSTL FUL...
Page 29 Creating Master Code Creating a Master Code must be performed upon installation or after resetting the lock to factory default. Programming and use of lock is not possible until this step has been successfully completed. "Register Master Code. Press the gear key to continue."...
Page 30 Creating User Codes Master code must be created ﬁrst. *Max user codes = 250 with Z-Wave or ZigBee network module Max user codes = 25 without network module or with iM1 network module Max user codes = 12 with Bluetooth "Menu Mode, enter number, press the gear key...
Page 31 Unlocking Door with Code Enter Code Press Factory Settings Factory Setting Settings Registration required* Master Code Automatic Re-lock Disabled Inside Indicator Light Disabled (Off) One Touch Locking Enabled Privacy Button Setting Disabled Volume Setting Enabled (Low) Language Setting English Lockout Mode Disabled Wrong Code Entry Limit 5 Times...
Page 32 Deﬁnitions All Code Lockout Mode: This feature is enabled by the Master code. When enabled, it restricts all user (except Master) code access. When attempting to enter a code while the unit is in Lockout, the locked padlock will appear on the screen. Automatic Re-lock Time: After a successful unlock, the unit will re-lock automatically after duration selected in the Advanced Lock Settings (Main Menu selection #3).
Page 33 Model 226 Feature Programming Through Menu Mode Using Master code* 1. Touch screen with back of hand or palm to activate. 2. Enter 4-8 digit master code* followed by key. Lock Response: "Menu mode, enter number, press key to continue." 3.
Page 34 Model 620 Feature Programming Through Menu Mode Using Master code* 1. Touch screen with back of hand or palm to activate. 2. Enter 4-8 digit master code* followed by key. Lock Response: "Menu mode, enter number, press key to continue." 3.
Page 35 Programming Troubleshooting Symptom Suggested Action • • • • • • • • • • • • • • • • • • • • • • • • • • • YRL EMICL TSINSTL FUL Rev G...
Page 36 Product Support Tel 1-855-213-5841 • www.yalehome.com Yale® ,Yale Real Living® and Assure Lock® are registered trademarks of Assa Abloy Residential Group. Other products' brand names may be trademarks or registered trademarks of their respective owners and are mentioned for reference purposes only. © Copyright 2018. All rights reserved. Reproduction in whole or in part without the express written permission of Assa Abloy Residential Group is prohibited.
Page 37 • Insert or remove Yale Smart Module • Reinstall batteries • Reinstall battery cover 6. If you're adding a new Yale Smart Module, follow the instructions included with it Trusted every day Part of ASSA ABLOY P/N AYR202-ZW-INSTAL-FUL Rev F...
Page 38 24/7 Tech Support : 1-855-492-0505 • www.US.YaleHome.com Yale is a registered trademark of Yale Home. Other products' brand names may be trademarks or registered trademarks ® of their respective owners and are mentioned for reference purposes only. © Copyright 2020. All rights reserved.
Page 39 Yale Locks Z-Wave Plus ™ v2 System Integrators Guide Yale Assure Electronic Deadbolts YRD216-ZW3, YRD226-ZW3, YRD256-ZW3, YRC216-ZW3, YRC226-ZW3, YRC256-ZW3, YRD652-ZW3, NF-YRD622-ZW3, NF-YRD612-ZW3, YRC652-ZW3, NF-YRC622-ZW3, NF-YRC612-ZW3, YRD622-ZW3, YRD642-ZW3, YRC622-ZW3, YRC642-ZW3, YRD410-ZW3, YRD420-ZW3, YRD430-ZW3, YRD450-ZW3 Document Revision: 1.9 November 2022...
Page 40: Table Of Contents
Contents Revision History ..................4 Yale Z-Wave Plus ™ Product Info ..............5 Network Operations ..................5 Enroll/Add device to network (SmartStart) ........... 5 Enroll/Add device to network (Classic Inclusion Mode) for Assure Lock [YRC/D216/226/256/622/642/652, NF-YRC/D612/622] ........5 Enroll/Add device to network (Classic Inclusion Mode) for Assure 2 Lock [YRD410/420/430/450] ................
Page 41 Command Class Application Status, Version 1 ..........28 Command Class Transport Service, Version 2 ..........28 Command Class Supervision, Version 1 ............28 Command Class Indicator, Version 3* ............28 Command Class Basic, Version 2* ............. 29 * This command class requires security.
Page 42: Revision History
Revision History Rev. Details Initial Release Made the following updates: • Added Command Class Clock section. • Added Clock Report to the Association Group Info commands list. • Marked Time as a secure command class. • Added the following note to Time, Time Parameters, and Clock command classes: “If the controller does not support either the Time CC, Time Parameters CC, or Clock CC, then scheduled users will not have access.”...
Page 43: Yale Z-Wave Plus ™ Product Info
Yale Z-Wave Plus ™ Product Info Manufacturer ID: ASSA ABLOY (0x0129) Z-Wave ™ Device Type: Door Lock Keypad Z-Wave Role Type: Listening Sleeping Slave (LSS) ™ Network Operations Enroll/Add device to network (SmartStart) SmartStart enabled products can be added into a Z-Wave network by scanning the ™...
Page 44: Enroll/Add Device To Network (Classic Inclusion Mode) For Assure 2 Lock [Yrd410/420/430/450]
When the Yale lock is unenrolled/excluded from the network through the device menu mode, any changes previously made to the user code database and configuration settings will be retained, as opposed to set back to defaults.
Page 45: Supported Command Classes
The supported command classes are listed below, and certain sections contain details about operations that may be specific to the Yale lock. If a section is blank, then please refer to the Z-Wave ™...
Page 46 0x46C2 for YRC226-ZW3 (Interconnected Keyed Touch Screen ▪ Deadbolt) 0x46C5 for YRC256-ZW3 (Interconnected Keyless Touch Screen ▪ Deadbolt) 0x4DD5 for YRD652-ZW3 (2 Generation Keyless Touch Screen ▪ Deadbolt) 0x4DD2 for NF-YRD622-ZW3 (2 Generation Keyed Touch ▪ Screen Deadbolt) 0x4DD1 for NF-YRD612-ZW3 (2 Generation Keyed Push Button ▪...
Page 47: Command Class Security, Version 1
Command Class Device Reset Locally, Version 1* * This command class requires security. The Yale door locks covered in this guide can be reset to their factory default settings by manually resetting the lock or by BLE command via app for BLE locks (by following the procedure outlined in the specific lock’s manual).
Page 48: Command Class Power Level, Version 1
Command Class Version, Version 3* * This command class requires security. The Yale Real Living locks are a multi-processor system with 1 additional firmware target. All processors can be updated through the Firmware Update Meta Data command class. The firmware targets are numbered as follows: •...
Page 49: Command Class Battery, Version 1
(keypad lock/unlock, RF lock/unlock, etc.), controller sends Get Battery command, or the unsolicited battery report was triggered. Yale locks will generate an unsolicited Battery Report every 8 hours if a node is listed in the Lifeline Group.
Page 50: Command Class Door Lock, Version 4
Door Unsecured (0x00), and Door Unsecured with timeout (0x01). When Auto Relock is enabled, the lock will automatically relock after all unlock events. Yale Z- Wave Plus ™ locks do not support any of the “Door Unsecured for outside Door Handles”...
Page 51 1 of this command class. For version 2, the Master Code Set/Get/Report commands must be used. Yale locks do not support bulk commands (setting or getting multiple user codes at once) or CRC functionality for this command class. It should be noted that the lock’s operation mode (called “User Code Keypad Mode”...
Page 52 Table 3 - User ID Status User Code CC v1 vs v2 User ID Status User Code CC v1 Set User Code CC v1 Report Value Description Value Value Available 0x00 0x00 Enabled / Grant Access 0x01 0x01 0x02 Disabled 0x03 0x03 Messaging:...
Page 53 User ID User Code CC v2: Extended User Code CC v2: Extended User Status User Code Set Code Report Value Description Value Value Available 0x00 0x00 Enabled / 0x01 0x01 Grant Access Disabled 0x02 0x02 Messaging: The user code is accepted, but the lock does not grant access to the...
Page 54: Command Class Time Parameters, Version 1
Command Class Time Parameters, Version 1* * This command class requires security. The controller must set the Time Parameters in the lock anytime the lock loses power. If the time is not set by the controller, then user codes with schedules applied to them cannot be granted access.
Page 55: Command Class Firmware Update Meta Data, Version 5
Command Class Firmware Update Meta Data, Version 5* * This command class requires security. Yale Z-Wave Plus ™ locks support over-the-air (OTA) upgrading of 2 firmware targets: 1. Firmware Target 0: Z-Wave chip ™ 2. Firmware Target 1: The lock main processor Firmware Target 0 is used to determine the correct Z-Wave ™...
Page 56: Command Class Association, Version 2
This command class has been implemented per the Z-Wave™ Specification. Command Class Multi Channel Association, Version 3* * This command class requires security. This command class has been implemented per the Z-Wave™ Specification. Yale locks support only one group, which can contain up to 5 nodes.
Page 57: Command Class Association Group Info, Version 3
Command Class Association Group Info, Version 3* * Command Class Requires Security Yale locks support the Lifeline Association Group. Table 5 - Association Table Group ID Maximum Nodes Description Commands • Command_Class Battery Battery_Report • Command_Class_Configuration Configuration_Report • Command_Class_Notification Notification_Report •...
Page 58 The following are the actions to trigger the reports: Table 6 – Lifeline Report Trigger Table Report Command RF Trigger Manual Trigger Battery Report Any RF Lock Operation when lock is Any manual/keypad Lock Operation under the battery thresholds when lock is under the battery thresholds or Power Cycle Lock Configuration Report Configuration Set...
Page 59: Command Class Notification, Version 8
Command Class Notification, Version 8* * This command class requires security. Table 7 - Notification Table Alarm Alarm Notification Alarm Reports Description Event type Level Type 0x01 Deadbolt jammed while locking 0x06 0x0B Deadbolt Jammed 0x09 0x02 Deadbolt jammed while unlocking 0x06 0x0B 0x (01 –...
Page 60 Manual Unlock 0x16 0x01 By key cylinder or inside thumb turn 0x06 0x02 RF Operate Lock 0x18 0x01 by RF module 0x06 0x03 RF Operate Unlock 0x19 0x01 by RF module 0x06 0X04 Auto Lock Operate 0x1B 0x01 Auto re-lock cycle complete, locked. 0x06 0x09 Locked...
Page 61 All Schedule Types 0x(01-max Schedule(s) has been enable/disabled for 0x65 0x06 0xFE Enabled/Disabled users) specified user ID 0x00 Master code was changed at keypad 0x06 0x12 Master Code changed 0x00 Master code was changed over RF 0x06 0x0E 0x70 0x(01-max User added.
Page 62 0X04 Unlock** *The Yale lock also supports a 3 low battery alarm: too low to operate. This alarm is sent out as a Battery Report (with value = 0xFF) through the Battery Command Class. This is the last low battery alarm level before the product stops functioning.
Page 63: Command Class Configuration, Version 4
Command Class Configuration, Version 4* * This command class requires security. Table 8 - Configurable Parameters Length of Info Configuration Properties Info String (max length Param. allowed Num. Name Length Default is 90) 0x02 (Low Volume) Set Volume Level to high (1), [0x8002, low (2), or silent (3).
Page 64 Adjust the limit for wrong Wrong Code code entries allowed by your Entry Limit 1 byte 0x03 0x0A 0x05 lock. Set the language to English 0x01 0x03 0x01 (1), Spanish (2), or French Language* 1 byte (English) (French) (English) (3). Adjust the time your lock is Shut down 0x0A (10...
Page 65 One Touch 0x00 0xFF 0xFF Set One Touch Locking Locking 1 byte (Disable) (Enable) (Enable) feature to enable or disable. Privacy 0x00 0xFF 0x00 Set Privacy Button feature to Button 1 byte (Disable) (Enable) (Disable) enable or disable. Lock Status 0x00 0xFF 0x00...
Page 66 Command Class Application Status, Version 1 This command class has been implemented per the Z-Wave ™ Specification. Command Class Transport Service, Version 2 This command class has been implemented per the Z-Wave ™ Specification. Command Class Supervision, Version 1 This command class has been implemented per the Z-Wave ™...
Page 67 Command Class Basic, Version 2* * This command class requires security. This command class is mapped to Door Lock CC: Table 11 – Basic Mapping Overview Basic Command Door Lock Mapped Command Basic Set (Value) Door Lock Operation Set (Door Lock Mode) Basic Report (Current Value = 0x00) Door Lock Operation Report (Door Lock...
