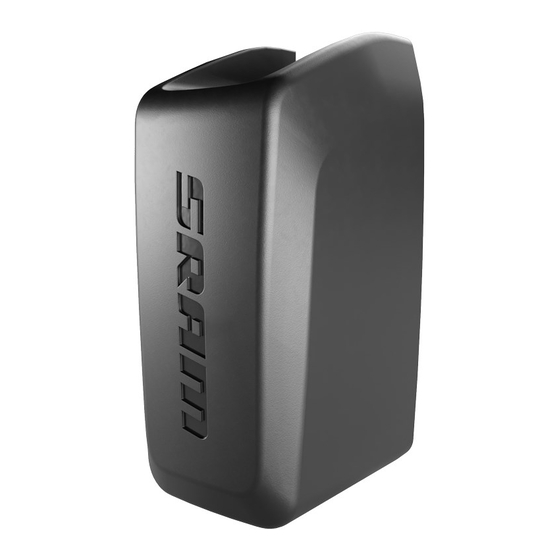

Battery and Charger
USER MANUAL
Battery and Charger User Manual
Podręcznik użytkownika akumulatora i
ładowarki
배터리 및 충전기 사용 설명서
Brugervejledning til batteri og oplader
Uživatelská příručka k akumulátoru a
nabíječce
Manual de utilizare baterie și încărcător
Εγχειρίδιο χρήσης μπαταρίας και
φορτιστή
95-3018-005-100 Rev D © 2023 SRAM, LLC
Advertisement
Related Manuals for SRAM eTap axs 25401
Summarization of Contents
Safety Instructions
Installation Safety Guidelines
Read safety docs before installation to prevent injury.
Warranty and Trademark Information
Warranty and Trademark Policy
Details on warranty policy and trademarks used in the manual.
Battery Charger Operations
Single Battery Charger: LED Status and Troubleshooting
Covers LED indicator status and troubleshooting for single battery chargers.
Four Battery Charger: LED Status and Troubleshooting
Covers LED indicator status and troubleshooting for four battery chargers.
Product Identification and Specifications
Battery Model Identification
Lists specific model numbers for rechargeable lithium-ion polymer batteries.
Charger Model Identification
Lists specific model numbers for single and four battery chargers.
Battery Handling and Care
Handling Precautions
Keep hands/gloves clean; avoid contaminants to prevent battery cracking.
Single Battery Charger: Micro USB Connection
Fire Hazard Warning
Use only SRAM-supplied cables; other chargers may cause overheating or fire.
USB Charging Best Practices
Optimal Charging Port Usage
Use USB 3.0+ ports for best performance; older ports may slow charging.
USB AC Adapter Requirements
USB AC adapter not included; requires minimum 1A at 5V.
Battery Cover and Terminal Protection
Battery Cover Handling and Protection
Store cover when not in use; keep metal from terminals to prevent damage.
Battery Installation and Charging
Inserting the Battery
Insert battery ensuring tab is seated first; LED may take 5 seconds to illuminate.
Charging Time Information
Full charge takes approx. 1 hour; times vary by power source.
Battery Maintenance and Transport
Battery Cover Adjustment and Usage
Adjust battery cover dial to show charge; install cover when not in use.
Battery Transport Restrictions
Consult authorities for battery restrictions when traveling with electronics.
LED Indicator Status Guide
Solid Blue LED
Indicates adequate power supply to the charger.
Flashing Blue LED
Indicates less than optimal power; slower charging.
Amber LED
Indicates the battery is currently charging.
Green LED Status
Indicates charging is complete or 75% charged.
Solid Green LED
Indicates charging is complete.
Flashing Green LED
Indicates the battery is 75% charged.
Troubleshooting Common Issues
Red LED Error Indicator
Red LED signifies an error; suggests reinstalling battery/charger or contacting dealer.
No LED Illumination
If no LEDs light up after 5 seconds, check plug and power supply.
Troubleshooting No Power
Check plug, outlet, and cable for 3A at 5V output if no LEDs illuminate.
Four Battery Charger: USB Type C Connection
Fire Hazard Warning
Use only SRAM-supplied Type C cable; others may cause overheating or fire.
USB Type C Charging Best Practices
Optimal USB Type C Port Usage
Use USB Type C ports for best performance.
USB Type C Adapter Power Requirements
USB Type C adapter not included; requires minimum 3A at 5V.
Four Battery Charger: Battery Installation
Inserting Multiple Batteries
Insert up to 4 batteries, ensuring tabs are seated; LEDs may take 5 seconds to illuminate.
Battery Charging Rates and Times
Fast Charge Details
Details charging times for 1 or 2 batteries to >75% capacity.
Standard Charge Details
Details charging times for 3 or 4 batteries to 100% capacity.
Recommended USB Type C Adapter
Emphasizes using the recommended USB Type C adapter for sufficient power.
Battery Maintenance and Care
Cleaning and Storage
Keep battery clean and dry; store at room temperature away from extremes.
Battery Depletion Prevention
Install battery blocks and covers before transport to prevent depletion.
Warning: Damaged or Modified Battery/Charger
Do not use if battery or charger is damaged, dropped, or modified.
Recycling and Environmental Compliance
Recycling Information
Visit www.sram.com for recycling and environmental compliance information.
Battery Replacement Policy
Replace SRAM battery only with an authentic SRAM replacement battery.
Fire Disposal Warning
Never dispose of batteries in a fire.
Product Specifications
Rechargeable Battery Specifications
Details on battery model, type, capacity, voltage, and minimum capacity.
Charger Specifications
Details on charger voltage, temperature ranges, and humidity.
Battery Operating and Storage Temperature Ranges
Specifies operating and storage temperature ranges for batteries.
Battery Relative Humidity Requirements
Specifies relative humidity requirements for battery operation and storage.
Four Battery Charger Model 25310 Specifications
EMI Safety Standards Compliance
Charger designed to meet EMI safety standards for IT equipment.
Electrical Specifications
Details input voltage, output voltage, and operating temperature ranges.
Storage and Humidity Requirements
Specifies storage temperature range and relative humidity for the charger.
Single Battery Charger Model 25301/25302 Specifications
EMI Safety Standards Compliance
Charger designed to meet EMI safety standards for IT equipment.
Electrical Specifications
Details input voltage, output voltage, and operating temperature ranges.
Storage and Humidity Requirements
Specifies storage temperature range and relative humidity for the charger.
