Installation of the VDO Sumlog system
Please read the safety instructions on pages 24 and 25 prior to
the installation.

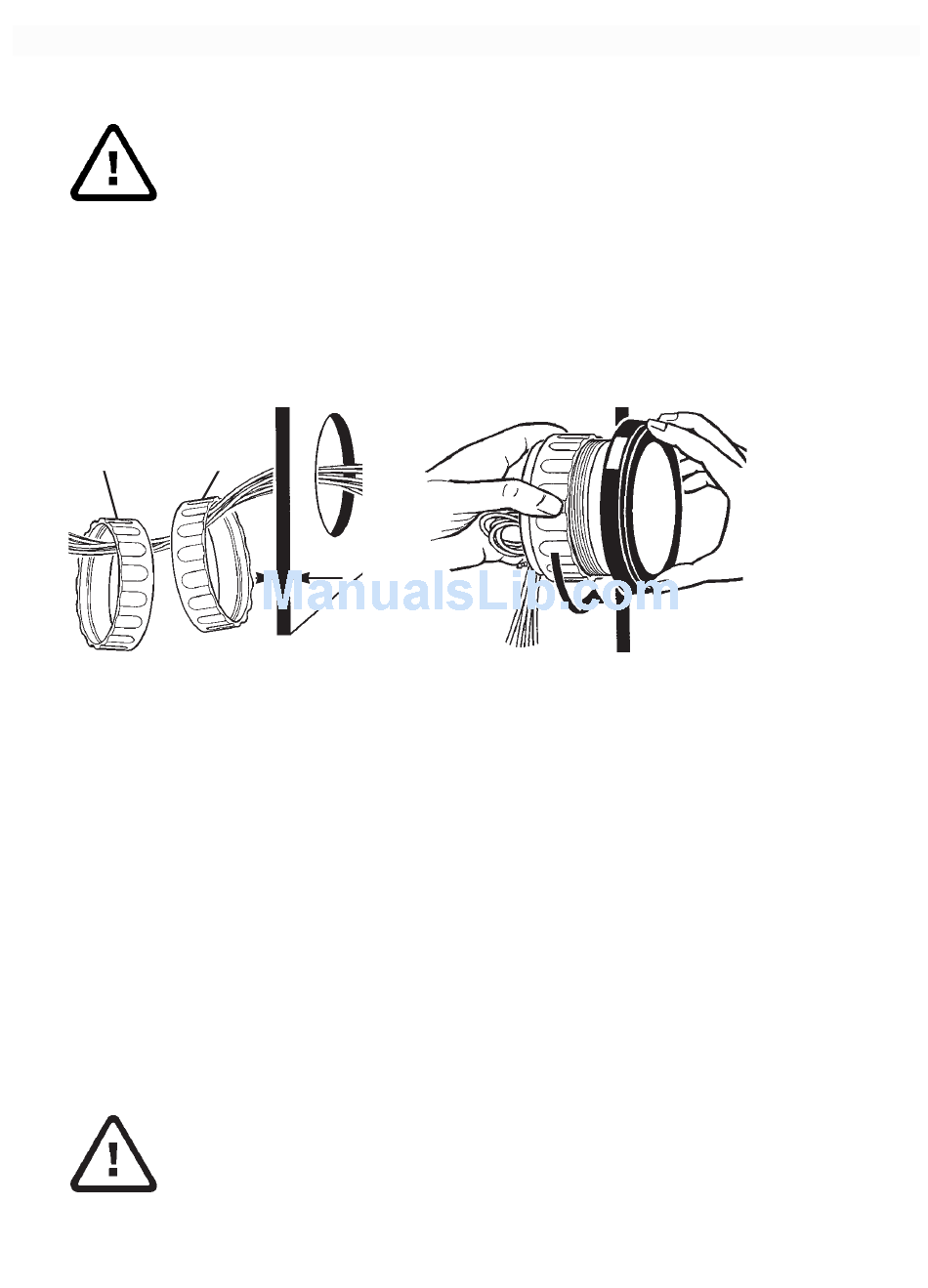

Installation of the indicating unit

- Drill a hole, 86 mm dia., at an suitable location.
- Clean the material and remove any chips before inserting the indi-
cating instrument.
A B
or
- Thread the indicating instrument cables from behind the moun-
ting hole through the housing mounting nut.
- Place the supplied black rubber ring on the instrument back.
- Make the electrical connections of the indicating unit per circuit
schematically (see „Electrical Installation") and insert the
instrument into the installation hole.
- Secure the instrument by tightening the housing nut.
At d= 0.5 to 6.5 mm, installation A.
At d= 6.5 to 16.5 mm, installation B.
- The housing nut should only be tightened by hand.
Install the indicating instrument with studs and bracket (see
page 33) if you expect strong vibrations at the location whe-
re the instrument is to be installed (e.g. high-speed boats).
