Sensor
KITAS 2171-20

Technical Information

Operating voltage 6,5 ... 9 V
Power consumption max. 15 mA
Operating temperature A - 30 °C ... + 135 °C
B - 30 °C ... + 145 °C
Storage temperature A - 40 °C ... + 150 °C Connection
unearthed
Signal shape (Pin 3) rectangular
Frequency range 1 Hz - 2000 Hz
Output signal (Pin 3) Real-time signal
U L max = 800 mV
(@I = 250 μA)
U H min = UE - 1,5 V
(@I = - 150 μA)
Output short-circuit 28 V, 1 min
Output signal Pin 4 Bidirectional interface
Protection against
voltage interference DIN 40 839
Interference protection DIN 40 839
Protection EH 60 529 IP 67 / IP 69K
Continental Trading GmbH | Heinrich-Hertz-Strasse 45 | 78052 Villingen-Schwenningen | Germany
E-mail: tachograph@vdo.com | www.vdo.com

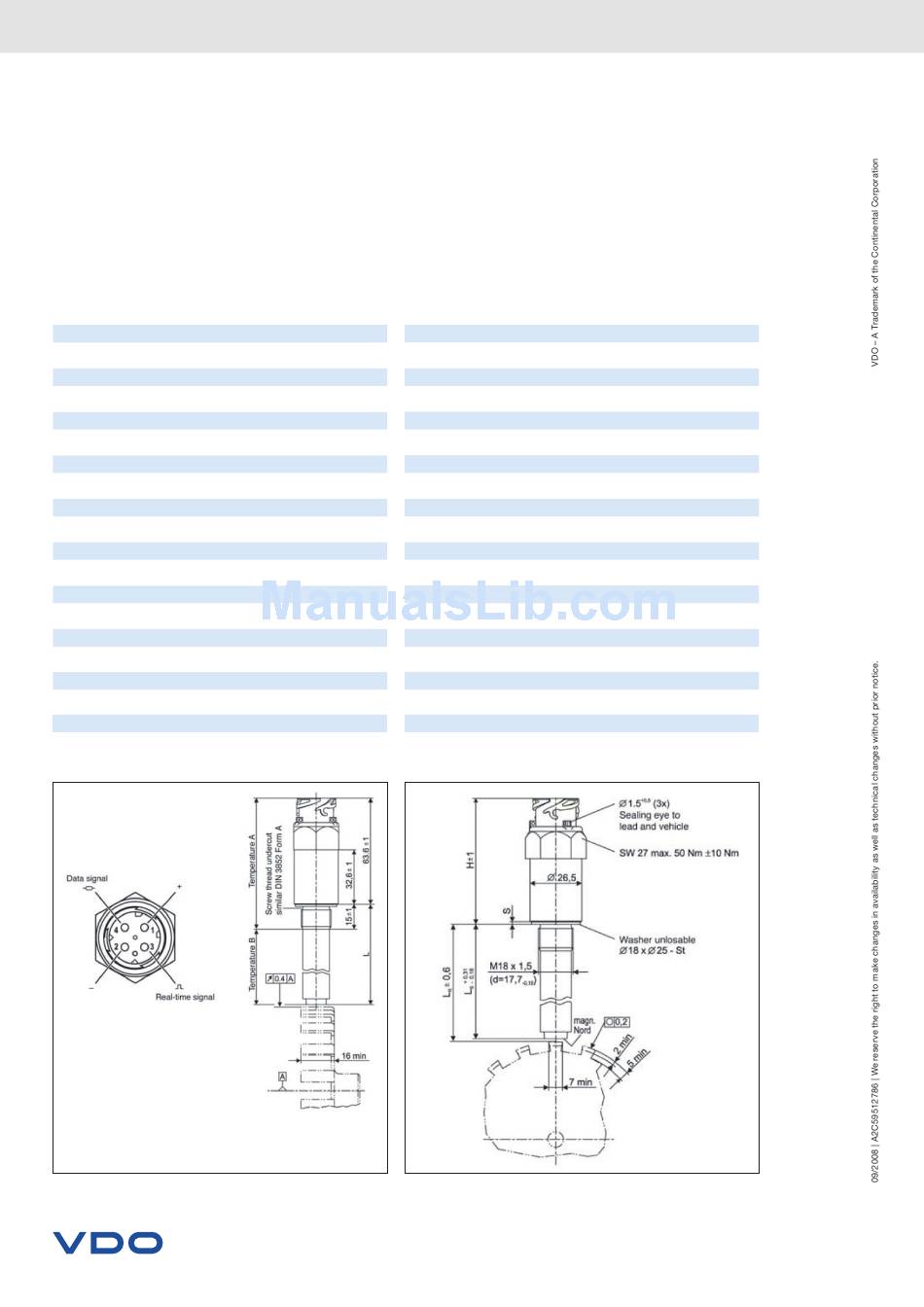

Dimensions
(L in mm)
Weight
Resistance to vibration
Shock resistance
Tightness
Material of pulse wheel
Thickness of pulse wheel
Segment gap (typ.)
Segment length (typ.)
Air gab Sensor/pulse wheel
(typ.)
Not to be used in cases of
extraneous magnetic fields
Connection of sensor
to sensor lead
Connection of sensor to
vehicle gearbox
Torque
(wrench size)
approx. 19,8 / 25 / 35 / 63,2 /
90 / 136,8
approx. 100 to 180 g
30 g
1000 g
0,5 bar oil, 120 °C, 100 h
ST 4 LG RP
2 mm
1,5 .... 2 x Segment width
16 mm
1,4 mm
> 2 mT
standard plug according to
ISO 15170
via thread M 18 x 1,5
50 Nm ±10 Nm
(WS 27)
