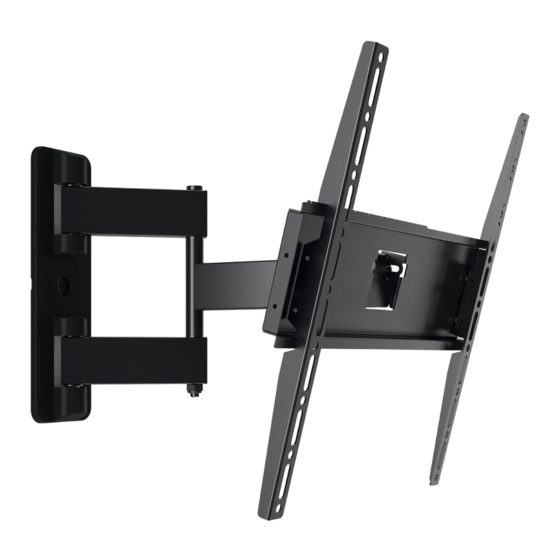

MA 3030 Series
MA 3040 Series
Full Installation Guide
Everything you need to get your TV safely on the wall, in no time
Before you start
...we just wanted to say thanks for choosing Vogel's. Smart choice.
And you're already making another smart choice – reading the manual! Keep reading to learn all
about safe, efficient installation, and how to use your new mount.
Stay safe
Warning
Always read these safety instructions carefully before installing and using this product.
Following these instructions is strictly required. Incorrect mounting and/or installation could
put you, your TV, and your family at substantial risk.
MA 3030/3040 Series - English
1
Advertisement
Related Manuals for vogel's MA 3040 Series
Summary of Contents for vogel's MA 3040 Series
- Page 1 MA 3030 Series MA 3040 Series Full Installation Guide Everything you need to get your TV safely on the wall, in no time Before you start …we just wanted to say thanks for choosing Vogel’s. Smart choice. And you’re already making another smart choice – reading the manual! Keep reading to learn all about safe, efficient installation, and how to use your new mount.
- Page 2 Don’t dare risk it… Read all Vogel’s recommends that the mounting and/or installation of this product should be carried out by a suitably qualified expert. Vogel’s cannot be held responsible for any injury and/or damage caused by incorrect installation.
-
Page 3: What's In Your Box
What’s in your box? Something missing? Make sure your packaging has everything in place: A. Wall mount B. Interface plate C. Strips D. Instructions E. Bolts for fastening strips on TV M6 bolts M8 bolts F. Interface nuts and bolts G. - Page 4 Got your tools ready? Don’t start without all the necessary tools: Crosshead screwdriver or crosshead attachment for electric screwdriver Drilling machine with screwdriver function No. 8 wrench For walls with wooden studs: 4mm or 5/32” wood drill ...
- Page 5 Take care of your safety Who cares about looking cool? Always wear personal protective equipment: Eye protection Ear protection Safety shoes Ready… set… get installing! Step 1: Attach the strips to the TV 1. Carefully put the TV on a clean surface without obstacles. ...
- Page 6 Make sure bolts and spacers are positioned correctly. Refer to the user manual of your TV for the correct mounting material. Step 2: Attach the wall mount to the wall How well do you know your walls? What they’re made of matters more than you think… Concrete / Brick wall MA 3030/3040 Series - English...
- Page 7 1. Decide how high you want the wall mount Ⓐ to be. Aim for the TV to be at eye level when seated. 2. Hold the wall mount Ⓐ against the wall and mark the location of the 3 holes. Use a spirit level to level the wall mount.
- Page 8 5. Attach the wall mount Ⓐ to the wall with the screws Ⓗ and plugs Ⓖ . Lubricate the bolts for easy screwing in. Wooden wall with studs 1. Don’t just guess! Always use a stud finder to determine the position of studs. ...
- Page 9 6. Attach the wall mount Ⓐ to the wall with the screws Ⓗ . Lubricate the bolts for easy screwing in. Other wall type / I don’t know my wall type If your wall is a little special – for example, hollow bricks, metal stud walls, wood panels or plasterboard –...
- Page 10 Step 3: Attach the TV to the wall mount 1. Attach the interface plate Ⓑ to the head of the wall mount Ⓐ with the interface bolt and nut Ⓕ . 2. Fasten the interface bolt and nut Ⓕ using two wrenches or similar tools. ...
- Page 11 Lifting your TV is a two-person job. Don’t be bold! 4. Turn the small tabs to lock the strips Ⓒ to the interface plate Ⓑ . 5. Screw both tabs tight with the allen key. Job done now! Enjoy watching your TV! MA 3030/3040 Series - English...
- Page 12 Handy features Tilt 1. Loosen the interface bolt and nut Ⓙ . 2. Try which tilt position creates the perfect viewing angle for you. Make sure the screen is in line with your eye level when seated for some well-deserved TV time. ...
- Page 13 3. Lift your TV off of the interface plate Ⓑ , and put it down somewhere safe. Again, lifting your TV is a two-person job. Always get help. Tell us how you feel! Your opinion matters more than you might think. It helps us make better products, and helps other customers make informed choices.
-
Page 14: Simple Troubleshooting
TV!’ up sometimes. So, it might be the everything you need. Click here to case that the correct bolt size is not contact Vogel's Consumer Care. included… you’re just too advanced! ‘My wall bolts You might not be drilling deep Use another hole in the wall plate to have snapped!’... - Page 15 ‘Which bolts or screws do I need to Vogel's offers a complete assembly kit with all mounting use?’ materials included in the box, for both your TV and wall.
- Page 16 Go green! We care about the planet. If you’re getting rid of the packaging or the TV mount itself, please visit your local recycling facility, or contact your municipal office. Recycling matters! Guarantee Thanks again for choosing Vogel’s! That is why Vogel’s gives you a 2-year guarantee for defects in materials and manufacturing.
