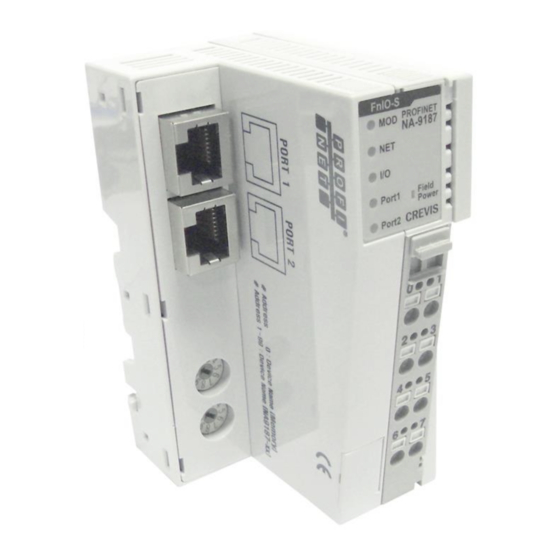

CREVIS NA-9187 User Manual

Profinet adapter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

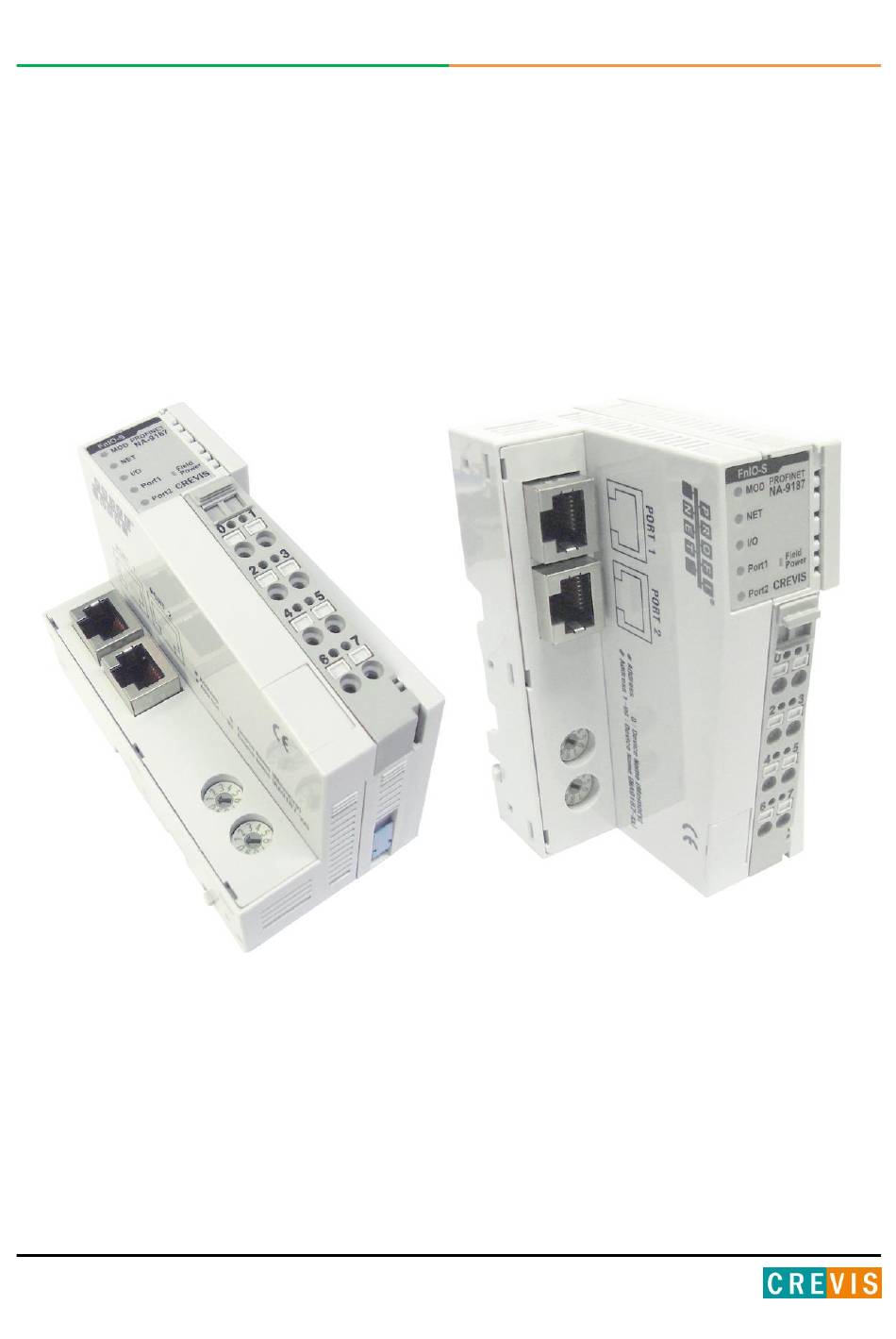

1
Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr
FnIO PROFINET Adapter NA-9187
Version 1.06
2013 CREVIS Co.,Ltd
PROFINET Adapter
NA-9187
User Manual
FnIO S-Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NA-9187 and is the answer not in the manual?

Questions and answers

Related Manuals for CREVIS NA-9187

Summary of Contents for CREVIS NA-9187

  • Page 1 FnIO S-Series FnIO PROFINET Adapter NA-9187 PROFINET Adapter NA-9187 User Manual Version 1.06 2013 CREVIS Co.,Ltd Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...
  • Page 2 Changed Crevis TEL 2013/4/4 JE Kang 1.04 Changed Storage Temperature (-25℃  -40℃) 2013/6/3 JE Kang 1.05 Environment Spec. 50℃→55℃ (UL Temp) 2013/7/3 JE Kang 1.06 Modify the Pin Description 2014/05/08 YMKIM Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...

  • Page 3: Table Of Contents

    Port1, Port2 : Link and Activity ......................12 Dimension ..................................13 3.1. NA-9187 ..............................13 Mechanical Set Up ..............................14 4.1. Total Expansion ............................14 4.2. Plugging and Removal of the Components................14 Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...
  • Page 4 Trouble Shooting ..............................36 7.1. How to diagnose by LED indicator ....................36 7.2. How to diagnose when device couldn’t communicate network ........37 APPENDIX A ..................................38 A.1. Product List................................38 Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...
  • Page 5 FnIO S-Series FnIO PROFINET Adapter NA-9187 A.2. Glossary ..................................40 Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...

  • Page 6: Important Notes

    In no event will CREVIS be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.

  • Page 7: Safety Instruction

    Avoid touching conductive components, e.g. FnBUS Pin. 1.1.3. Certification c-UL-us UL Listed Industrial Control Equipment, certified for U.S. and Canada See UL File E235505 CE Certificate EN 61000-6-2; Industrial Immunity EN 61000-6-4; Industrial Emissions Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...

  • Page 8: Specification

    FnIO S-Series FnIO PROFINET Adapter NA-9187 2. Specification 2.1. The Interface 2.1.1. NA-9187 Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...

  • Page 9: Specification

    Refer to Environment Specification Environmental Specifications Surrounding Temperature 0 to 55℃ Operating Temperature 0 to 55℃ Storage Temperature -40℃ to 85℃ Relative Humidity 90% non-condensing Protection Class IP 20 Mounting DIN rail Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...

  • Page 10: Interface Specification

    1 green Port1 Link/Active Status Indicator 1 green Port2 Link/Active Status Indicator 1 green Field Power Status indicator Baud rate 100Mbps Full-Duplex Module Location Starter module - Left side of FnIO System Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...

  • Page 11: Led Indicator

    Device is on-line and allocated to a master Connected Invalid Configuration Flashing Red 0.2s Invalid Configuration Minor Fault Flashing Red 1s PROFINET IO Connection is aborted after Data exchange Fault PROFINET IO connection is aborted before a data exchange Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...

  • Page 12: Expansion Module Status Led (I/O)

    2.3.5. Port1, Port2 : Link and Activity State LED is : To indicate : Link Down Link is down Active Flashing Green Active is present Link UP Green Link is up (Physical connection is established) Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...

  • Page 13: Dimension

    FnIO S-Series FnIO PROFINET Adapter NA-9187 3. Dimension 3.1. NA-9187 (mm) Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...

  • Page 14: Mechanical Set Up

    To do so, fold on the upper of the locking lever. To pull out the FnIO module, unfold the locking lever as below figure. Before work is done on the components, the voltage supply must be turned off. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...

  • Page 15: Profinet Electrical Interface

    FnIO S-Series FnIO PROFINET Adapter NA-9187 5. PROFINET Electrical Interface 5.1. FnBus System Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...
  • Page 16 The Expansion Modules are supported a variety of input and output field devices. There are digital and analog input/output modules and special function modules. • Two types of FnBus Message - Service Messaging - I/O Messaging Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...

  • Page 17: Fnbus Pin Description

    Reserved for bypass Token. Field GND Field Ground. Field Vcc Field supply voltage (24Vdc). Do not touch data and field power pins in order to avoid soiling and damage by ESD noise. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...

  • Page 18: Profinet Electrical Interface

    FnIO FnIO ※ Caution - Industrial HUB for EIP recommended - Cable, the noise cable recommended The use of an incorrect supply voltage or frequency can cause severe damage to the component. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...

  • Page 19: Profinet Parameterization By Rotary Switch

    – Names must not begin with the character sequence "port-xyz-" (where x, y, z = 0...9). – If you want to change the IP address in non-volatile memory, please refer to Chapter3. (Editing Ethernet Nodes) Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...
  • Page 20 GSD file. In this case, the second device has the extension "-1", the third one has the extension "-2", etc. ◆ Communication Speed Setting - See Master Module Setting about communication speed setting. MAC ID addresses have to be unique throughout the entire interconnected networks. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...

  • Page 21: I/O Process Image Map

    The data exchange between network adapter and expansion modules is done via an I/O process image data by FnBus protocol. The following figure shows the data flow of process image between network adapter and expansion modules. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...

  • Page 22: Example Configuration With Seimens Plc Step7

    Example Configuration with SEIMENS PLC STEP7 5.4.1. Example GSDML Setting Copy GSDML files GSDML-V2.0-Crevis-NA9187-yyyymmdd.xml and bitmap file and GSDML_002A_NA_NA9187.bmp to your hard drive in the same directory. (yyyymmdd: year, month, day) Start STEP 7 HW Configuration and install the GSDML file. (Options->Install GSD File...) Select option for “install GSD files”...
  • Page 23 If one or more GSDML files were already available or errors occurred during the installation, this information is listed in the log file.  After installation of GSDML file You can then find the NA9187 device in the standard catalog as below picture. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...

  • Page 24: Example Assign The Device Name

    (“NA9187 PROFINET IO Device”).  Order no/Firmware The order no and Firmware version from GSDML file will be displayed. (This firmware version could be differ from the version of real NA-9187 device) Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...
  • Page 25 – If the "Assign IP address via IO Controller" check box is not selected, then NA-9187 device has to get its IP address from its nov-volatile memory than the IO controller. – If you want to change the IP address in non-volatile memory, please refer to Chapter3. (Editing Ethernet Nodes) Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...

  • Page 26: Example Editing Ethernet Nodes(In Non-Volatile Memory)

    To do this, select the "PLC → Ethernet → Edit Ethernet node…” menu command, which starts the dialog below. Please check below condition: – You must set PG/PC interface to Ethernet card on your PC. – The NA-9187 devices must be in the same Ethernet subnet as the PG. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...
  • Page 27 If you specify here that the DHCP server should obtain the IP address using a device name, you must first assign the device a device name. STEP 4) Click the "Assign IP Configuration" button. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...
  • Page 28 With the "Reset" button, you can reset the NA-9187 to the factory settings. The IP address is then deleted. – IP address in non-volatile memory will be 0.0.0.0. – Device name in non-volatile memory will be NULL(“”). Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...

  • Page 29: Parameters, Io Cycle Time And Port Option With Step7

    => You can set the settings for port-001 – Slot 0 X1 P2 => You can set the settings for port-002  Parameters for NA-9187 itself If you double click Slot 0,you can set the parameters of NA-9187. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...
  • Page 30 (the IO device switches its outputs to a safe state). Watchdog Time : The watchdog time is computed as follows: Product of "Update Time" x "Number of accepted update cycles with missing IO data". Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...
  • Page 31 – The devices support topology configuration(NA-9187 supports this functionality) Select the required partner port from the "Partner port" drop-down list. The default setting is “Any partner”.(We recommended the default setting in normal case.) Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...
  • Page 32 When the check box is selected, the defined setting of the port is forced, such as required for a quick start of the NA-9187. You need to ensure that the partner port has the same settings. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...

  • Page 33: Na-9187 Profinet

    The input image is clear to 0. FnBus error Hold last image The input image remain the last valid value. Auto reset * NA9187 performs reset. Disconnect PROFINET Stop the communication with Controller. * Default settings Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...

  • Page 34: Na-9187 Profinet Io Characteristics

    DNS Compliant Name NA9187-xx Supports Extended Assignment of IP Address Fixed in Slots Instance Field of the Object UUID Supports Multiple Write Requires IOPS/IOCS Requires Engineering tool which supports at least V2.0 GSDML Version Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...

  • Page 35: Sub-Slot Of Na-9187

    Port 1 : Port 1 Sub-module Ident Number 0x0003 Sub-slot Number 32769 (0x8001) MAU Type 100BASETXFD Port 2 : Port 2 Sub-module Ident Number 0x0004 Sub-slot Number 32769 (0x8002) MAU Type 100BASETXFD Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...

  • Page 36: Trouble Shooting

    Check status in software for Master NET LED flashed green - Failure of exchanging data with master configuration. Check BUS line cable for connection with master. NET LED is red - Communication connecting lost Check duplication address. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...

  • Page 37: How To Diagnose When Device Couldn't Communicate Network

    Configuration of communication baud rate I/O size Configuration of each node Ground and environment - Check ground is contacted - Check environment factor (temperature, humidity, etc) is in less than regular limit Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...

  • Page 38: Product List

    81 00 3C Active ST-2742 2 Points, 230Vac/2A, 24Vdc/2A, Relay 81 00 0B Active ST-2744 4 Points, 230Vac/2A, 24Vdc/2A, Relay 81 00 51 Active ST-2748 8 Points, 230Vac/2A, 24Vdc/2A, Relay 81 00 50 Active Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...
  • Page 39 C1 40 41 BF Active ST-4522 2 Channels, Voltage, -10~10Vdc, 12bit 81 41 2F Active ST-4622 2 Channels, Voltage, 0~5Vdc, 12bit 81 41 30 Active ST-4911 1 Channel, Current, 0~1A, 12bit 81 40 31 Active Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...
  • Page 40 - EDS: Electronic Data Sheet. - sinking: The method of input and output what device does not have power source. - sourcing: The method of input and output what device have power source. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL : www.crevis.co.kr...
