FnIO G-Series
1

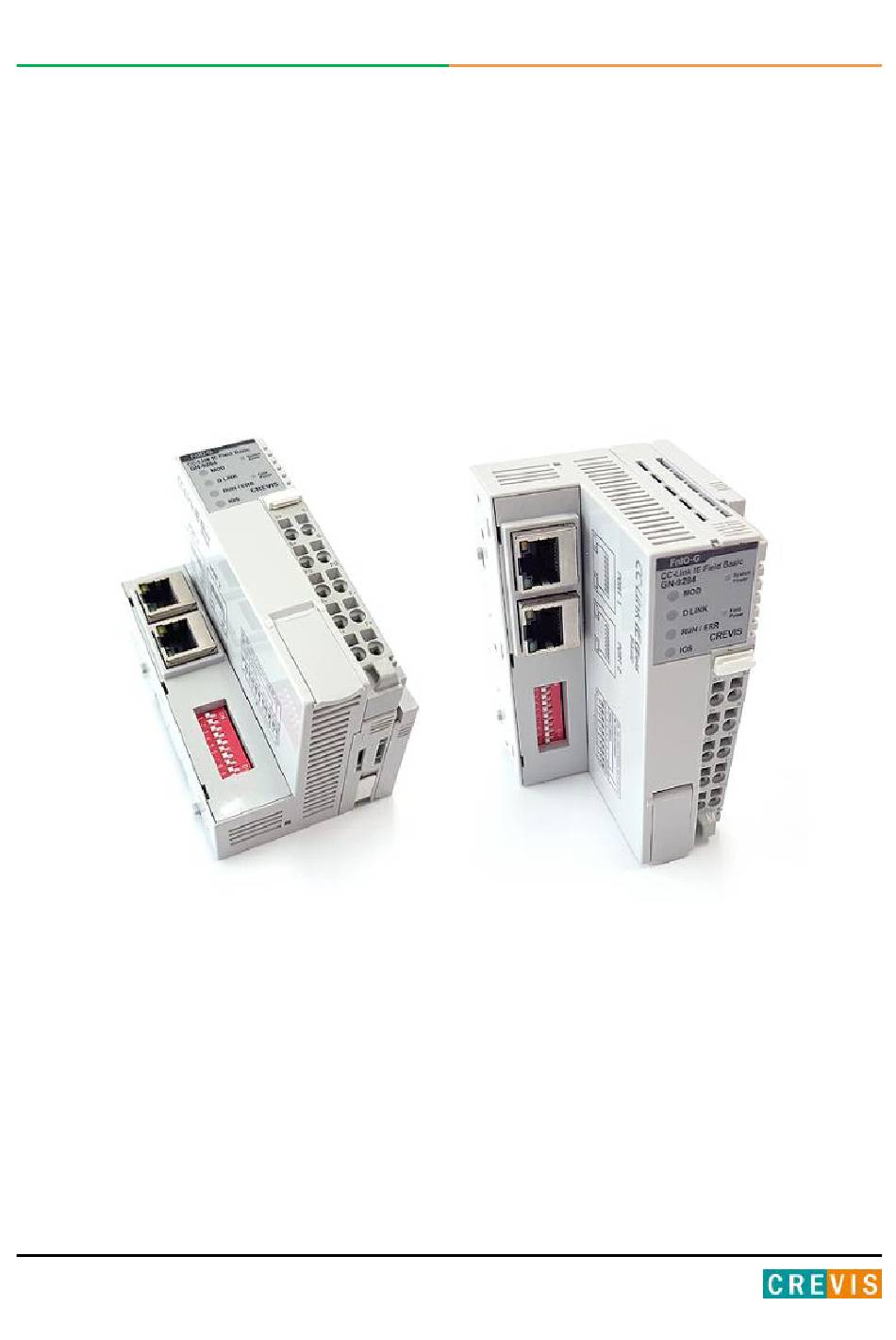

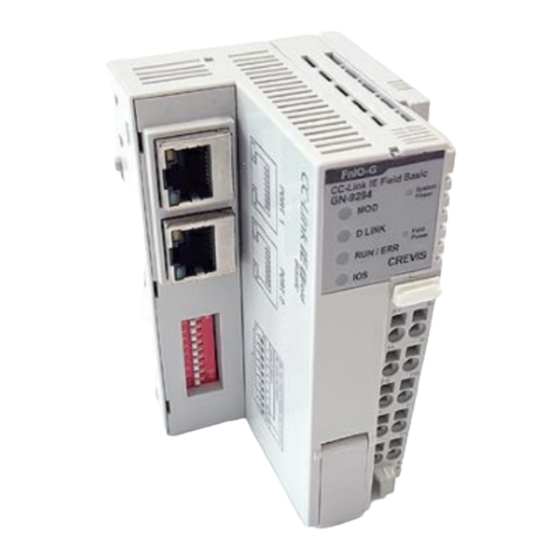

FnIO CC-Link IE Field Basic Network Adapter GN-9284
CC-Link IE Field Basic Network Adapter
GN-9284
User Manual
Version 1.0
2018 CREVIS Co.,Ltd
Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FnIO G-Series and is the answer not in the manual?

Questions and answers

Related Manuals for CREVIS FnIO G-Series

Summary of Contents for CREVIS FnIO G-Series

  • Page 1 FnIO G-Series FnIO CC-Link IE Field Basic Network Adapter GN-9284 CC-Link IE Field Basic Network Adapter GN-9284 User Manual Version 1.0 2018 CREVIS Co.,Ltd Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...
  • Page 2 FnIO G-Series FnIO CC-Link IE Field Basic Network Adapter GN-9284 DOCUMENT CHANGE SUMMARY PAGE REMARKS DATE EDITOR New Document 2018/7/31 CH Hong Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 3: Table Of Contents

    6. Convenience Function......................... 18 6.1. Web Server..........................18 6.1.1. Network Adapter......................18 6.1.2. Expansion Module......................19 7. GN-9284 Communication Interface..................... 20 7.1. RJ-45 Socket......................... 20 7.2. Dip Switch..........................20 7.3. MODBUS/TCPIP - Address Setup..................21 Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...
  • Page 4 9.3.5. Expasion Slot Information Special Register (0x2000, 8192).......... 47 9.4. Supported MODBUS Function Codes...................49 10. Trouble Shooting........................50 10.1. How to diagnose by LED indicator..................50 APPENDIX A............................51 A.1. Product List........................... 51 Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...
  • Page 5 FnIO G-Series FnIO CC-Link IE Field Basic Network Adapter GN-9284 A.2. Glossary..........................53 Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 6: Important Notes

    In no event will CREVIS be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.

  • Page 7: Safety Instruction

    (persons, workplace and packing) is well grounded. Avoid touching conductive components, e.g. FnBUS Pin. 1.1.3. Certification c-UL-us UL Listed Industrial Control Equipment, certified for U.S. and Canada See UL File E235505 CE Certificate EN 61000-6-2; Industrial Immunity EN 61000-6-4; Industrial Emissions Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 8: Specification

    FnIO G-Series FnIO CC-Link IE Field Basic Network Adapter GN-9284 2. Specification 2.1. The Interface 2.1.1. GN-9284 Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 9: Specification

    Operating Temperature 60℃~70℃ : Power dissipation is limited to 0.8A. -40℃~60℃ : 1.5A full load is allowed. UL Temperature -20℃~60℃ Storage Temperature -40℃~85℃ Relative Humidity 5% ~ 90% non-condensing Mounting DIN rail Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 10: Input Specification

    1 Green, System Power Status 1 Green, Field Power Status 2 LEDs (each RJ45 Connector) 1 Yellow, Link/Active 1 Green, Not used Module Location Starter module left side of G-Series system Field Power Detection About 14Vdc Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 11: Led Indicator

    Device is idle or may not be powered. Normal operation Green The unit is operating in normal condition. Minor Error Flashing Red Duplication of slave stations Duplication of master stations Major Error Invalid the occupied stations Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 12: Ios Led (G-Bus Status Led)

    Status LED is : To indicate : Not Field, System Not supplied 24Vdc field power, 5Vdc system power. Power Supplied Field , Green Supplied 24Vdc field power, 5Vdc system power. System Power Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 13: Dimension

    FnIO G-Series FnIO CC-Link IE Field Basic Network Adapter GN-9284 3. Dimension 3.1. GN-9284 (mm) Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 14: Mechanical Set Up

    As above figure in order to safeguard the FnIO module from jamming, it should be fixed onto the DIN rail with locking level. To do so, fold on the upper of the locking lever. To pull out the FnIO module, unfold the locking lever as below figure. Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 15: Internal Fnbus/Field Power Contacts

    It is comprised of 6 data pin and 2 field power pin. Do not touch data and field power pins in order to avoid soiling and damage by ESD noise. Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 16: Cc-Link Electrical Interface

    The Network Adapter Module forms the link between the field bus and the field devices with the Expansion Modules. The connection to different field bus systems can be established by each of the corresponding Network Adapter Module, e.g. for SyncNet, PROFIBUS, CANopen, DeviceNet, Ethernet/IP, CC-Link, MODBUS/Serial, MODBUS/TCP etc. Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...
  • Page 17 Token output port of Processor module. Serial Output Transmitter output port of Processor module. Serial Input Receiver input port of Processor module. Reserved Reserved for bypass Token. Field GND Field Ground. Field Vcc Field supply voltage (24Vdc). Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 18: Convenience Function

    FnIO G-Series FnIO CC-Link IE Field Basic Network Adapter GN-9284 6. Convenience Function 6.1. Web Server 6.1.1. Network Adapter Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 19: Expansion Module

    FnIO G-Series FnIO CC-Link IE Field Basic Network Adapter GN-9284 6.1.2. Expansion Module Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 20: Gn-9284 Communication Interface

    IP_DIP bit#7 = ON : Enable DHCP/BOOTP * = ON : Use Lowest IP Address with IP_DIP value * DHCP/BOOTP have to be set in special register(default : BOOTP). (0x1045, ref 3.3.3). Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 21: Modbus/Tcpip - Address Setup

    EEPROM (Latest saved IP Address). The following is an example of adapter IP-Address setup that can be used with a third party BOOTP/DHCP server. * CREVIS IO Guide Pro’ s BOOTP server Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 22: Ip-Address Setup Using Dip Switch(Manualfunction)

    If the adapter DIP Pole#10 is ON, lowest IP address is set by DIP Pole#1~#8 manually. Refer to 2.4.2. These are examples of adapter IP-Address setup by manual function. Ex) XXX. XXX. XXX. 1 Ex) XXX. XXX. XXX. 2 Ex) XXX. XXX. XXX. 8 Ex) XXX. XXX. XXX. 253 Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...
  • Page 23 FnIO CC-Link IE Field Basic Network Adapter GN-9284 • IP-Address Setup using BOOTP/DHCP Server The following is an example of adapter IP-Address setup using CREVIS IO Guide Pro’s BOOTP server. Click ‘Start Bootp’ to enable Bootp server to detect Bootp request on the network.
  • Page 24 FnIO G-Series FnIO CC-Link IE Field Basic Network Adapter GN-9284 Double click on one of the detected ‘Bootp request messsage’ and set the IP address. The IP address setting is completed. Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...
  • Page 25 FnIO G-Series FnIO CC-Link IE Field Basic Network Adapter GN-9284 Check IP address of the normal. Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 26: I/O Process Image Map

    The data exchange between network adapter and expansion modules is done via an I/O process image data by G-Series protocol. The following figure shows the data flow of process image between network adapter and expansion modules. Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 27: Modbus Interface Register/Bit Map

    Size of input image bit is size of input image register * 16. Process output image bits All output registers area are addressable by bit address. 0x1000~ Read/Write 1,5,15 Size of output image bit is size of output image register * Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 28: Example Of Input Process Image (Input Register) Map

    Discrete Input 8 pts (Slot#5) Discrete Input 8 pts (Slot#4) 0x0006 Discrete Input 8 pts (Slot#7) Discrete Input 8 pts (Slot#6) 0x0007 Discrete Input 8 pts (Slot#8) Discrete Input 8 pts (Slot#7) Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 29: Example Of Output Process Image (Output Register) Map

    Analog Output Ch3 high byte (Slot#8) Analog Output Ch3 low byte (Slot#8) 0x080B Discrete Output low 8 pts (Slot#10) Empty,Don't Care Discrete Out 4 pts (Slot#9) 0x080C Discrete Output high 8 pts (Slot#10) Empty,Don't Care Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 30: Modbus Tcp/Udp Interface

    Start Address Function Data CRC Check 3.5 char char char Up to 252 chars chars 3.5 char Function and data field of MODBUS/TCP are identical to function and data field of MODBUS/RTU. Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 31: Modbus Tcp/Udp Mbap Header

    • Length - The length field is a byte count of the following fields, including the Unit Identifier and data fields. • Unit Identifier – This field is used for intra-system routing purpose. Typically MODBUS server must be returned with the same value set by MODBUS client. Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 32: Supported Modbus Function Codes

    Quantity of Outputs Hi 0x00 Quantity of Outputs Lo 0x0A Response Field name Example Function Code 0x01 Byte Count 0x02 Output Status 0x55 Output Status 0x02 In case of address 0x1015~0x1000 output bit value: 10101010_01010101. Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 33: 0X02) Read Discrete Input

    0x00 Quantity of Inputs Lo 0x0A Response Field name Example Function Code 0x02 Byte Count 0x02 Input Status 0x80 Input Status 0x00 - In case of address 0x0015~0x0000 input bit value: 00000000_10000000. Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 34: 0X03) Read Holding Registers

    0x03 Byte Count 0x04 Output Register#0 Hi 0x11 Output Register#0 Lo 0x22 Output Register#1 Hi 0x33 Output Register#1 Lo 0x44 - In case of address 0x0800, 0x0801 output register value: 0x1122, 0x3344. Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 35: 0X04) Read Input Registers

    Function Code 0x03 Byte Count 0x04 Input Register#0 Hi 0x00 Input Register#0 Lo 0x80 Input Register#1 Hi 0x00 Input Register#1 Lo 0x00 In case of address 0x0000, 0x0001 input register value: 0x0080, 0x0000. Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 36: 0X05) Write Single Coil

    0x00 Response Field name Example Function Code 0x05 Output Address Hi 0x10 Output Address Lo 0x01 Output Value Hi 0xFF Output Value Lo 0x00 - Output bit of address 0x1001 turns ON. Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 37: 0X06) Write Single Register

    Function Code 0x06 Register Address Hi 0x08 Register Address Lo 0x00 Register Value Hi 0x11 Register Value Lo 0x22 - In case of address 0x0800 output register value: 0x0000 changes to 0x1122. Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 38: 0X08) Diagnostics

    0x0001(1) 0x55AA+0xAA55+Sumcheck Echo Request Data Reset with Factory default 1),2) IP Address, Subnet Mask Address, Gateway Address will be the factory defaults value. 2) Mac Address will be the factory default value. Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...
  • Page 39 (neither a normal response nor an exception response), since its last restart, clear counters operation, or power–up. Sub- Data Field (Request) Data Field (Response) Description function 0x000F(15) 0x0000 Slave No Response Count Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 40: 0X0F) Write Multiple Coils

    Function Code 0x0F Starting Address Hi 0x10 Starting Address Lo 0x00 Quantity of Outputs Hi 0x00 Quantity of Outputs Lo 0x0A In case of address 0x1015~0x1000 output bit value: 00000000_00000000 changes to 00000001_01010101. Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 41: 0X10) Write Multiple Registers

    Starting Address Hi 0x10 Starting Address Lo 0x08 Quantity of Registers 0x00 Quantity of Registers 0x02 .- In case of address 0x0800, 0x0801 output register value: 0x0000, 0x0000 changes to 0x1122, 0x3344. Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 42: 0X17) Read/Write Multiple Registers

    Read Reg. Value#0 Hi 0x11 Read Reg. Value#0 Lo 0x22 Read Reg. Value#1 Hi 0x33 Read Reg. Value#1 Lo 0x44 In case of address 0x0800, 0x0801 output register value: 0x0000, 0x0000 changes to 0x1122, 0x3344. Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 43: Error Response

    Unavailable port to the output port for processing the request. - GN-9289 response exception code 01, 02, 03, 04 and 06. Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 44: Modbus Special Register Map

    0x1001(4097), Device type - 1word 0x1002(4098), Product code - 1word 0x1003(4099), Firmware revision - 2word 0x1004(4100), Product serial number - String Type consists of valid string length (first 1word) and array of characters Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 45: Adapter Watchdogtime, Other Time Special Register (0X1020, 4128)

    Enable/disable Lowest IP address via DIP Switch, 1:Enabled IP address. If 192.168.123.1, then 0xA8C0, 0x017B. Read/Wr 0x1050(4176) 2word After update this value, IP address, Subnet mask and Gateway are applied as new one. Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 46: Adapter Informationspecial Register (0X1100,4352)

    1word Adapter G-Series Revision. After the system is reset, the new “Set Value” action is applied. ** If the slot location is changed, set default value automatically (all expansion slot are live). Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 47: Expasion Slot Information Special Register (0X2000, 8192)

    + 0x0E(+14) 0x200E(8206) 0x202E(8238) 0x204E(8270) 0x206E(8302) …. 0x27CE(10190) + 0x0F(+15) 0x200F(8207) 0x202F(8239) 0x204F(8271) 0x206F(8303) …. 0x27CF(10191) + 0x10(+16) 0x2010(8208) 0x2030(8240) 0x2050(8272) 0x2070(8304) …. 0x27D0(10192) + 0x11(+17) 0x2011(8209) 0x2031(8241) 0x2051(8273) 0x2071(8305) …. 0x27D1(10193) Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...
  • Page 48 Read 2word Firmware release date. * After the system is reset, the new “Set Value” action is applied. ** Nothing of output, input, memory or configuration parameter corresponding slot returns Exception 02. Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 49: Supported Modbus Function Codes

    FnIO G-Series FnIO CC-Link IE Field Basic Network Adapter GN-9284 9.4. Supported MODBUS Function Codes MODBUS Reference Documents http://www.modbus.org MODBUS Tools http://www.modbustools.com, modbus poll http://www.win-tech.com, modscan32 Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 50: Trouble Shooting

    - Contact Sales team and send module for repair. - Check main power Cable System Power LED turns - System power is not supplied. - Contact Sales team and send module for repair. Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...

  • Page 51: Product List

    8 Channels, 0~10, 0~5, 1~5Vdc, 16bits, 10RTB 3468 342F GT-342F 16 Channels, 0~10, 0~5, 1~5Vdc, 12bits, 20P connector 346F GT-346F 16 Channels, 0~10, 0~5, 1~5Vdc, 16bits, 20P connector 347F GT-347F 16 Channels, 0~10, 0~5, 1~5Vdc, 12bits, 18RTB Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...
  • Page 52 GT-7508 Common for 0Vdc 7508 7511 GT-7511 Power Expansion, In 24Vdc, Out 1A/5Vdc 7518 GT-7518 Common for 24Vdc GT-7588 Common for 0Vdc, 24Vdc 7588 GT-7641 Field Power, 5/24/48 Vdc, 110/220 Vac 7641 Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...
  • Page 53 - EDS: Electronic Data Sheet. - sinking: The method of input and output what device does not have power source. - sourcing: The method of input and output what device have power source. Copyright(C) CREVIS Co.,Ltd Support +82-31-273-6453 URL : www.crevis.co.kr...
