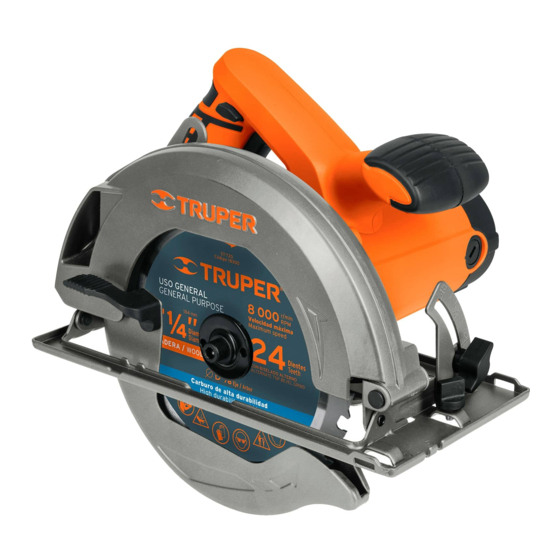

- Page 1 Manual Circular 2 Hp 7-1/4” Power Disc Applies for Code Model 11004 SICI-7-1/4A3 SICI-7-1/4A3 Read this manual thoroughly CAUTION before using the tool.
-
Page 2: Table Of Contents
Parts using the tool. Assembly Keep this manual for future references. Start Up The illustrations in this manual are for reference Maintenance only. They might be different from the real tool. Authorized Service Centers Warranty Policy SICI-7-1/4A3 ENGLISH... -
Page 3: Technical Data
Technical Data SICI-7-1/4A3 Code 11004 Description Circular saw Disc 7-1/4” Voltage 127 V Frequency 60 Hz Current 12 A Power 2 Hp Speed Thread size 5 500 RPM 5/16 X 20 UN Duty cycle 30 minutes work per 15 minutes idle. -
Page 4: General Power Tool Safety Warnings
General power tool safety warnings WARNING! Read carefully all safety warnings and instructions listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references. -
Page 5: Safety Warnings For Circular Saws
Safety warnings for circular saws Kickback • Before starting a cut, the levers to adjust cutting depth and bevel should be tight and secured. If they move Kickback is the sudden and strong movement the tool during the cut, they may cause the disc to bend and experiences outwards from the work piece that can lead cause kickback. - Page 6 Safety warnings for circular saws Retractable guard Toxic materials Before each use double-check if the retractable guard and Dust coming from some materials have chemical the spring are working correctly. If the guard is not substances known to cause cancer, birth and reproductive moving freely or not closing instantaneously service them defects.
-
Page 7: Parts
Parts Fixed Saw Dust Ejector. Saw dust guard Auxiliary Saw dust is blown back ejector handle and sideways as far away as possible from the operator. The motor-cooling air blows out from the housing helping to eject sawdust. Retractile guard The dust ejector can be control lever used together with an... -
Page 8: Assembly
Assembly Cutting disc assembly When the cutting discs wear out, replace them immediately WARNING The cutting discs’ size specified for this tool are 7-1/4” Never use a cutting disc of different type or size. Otherwise it can cause severe personal injury or damage the tool permanently and making the warranty void. - Page 9 Start Up Cutting depth adjustment 1. Loosen the cutting depth adjusting knob. 2. Having the base fixed, raise the housing until the disc sticks out to the desired depth from the base. Use the depth guide as reference. 3. Tighten the cutting depth adjusting knob to prevent the housing from moving during the cut. 4.
-
Page 10: Maintenance
Maintenance Keep in mind to disconnect the tool before cleaning or servicing. Every component in the tool is an important part of the insulating system and should only be serviced in a Authorized Service Center. When sending the tool to a Authori- zed Service Center, ALWAYS ask for original spare parts. -
Page 11: Authorized Service Centers
In the event of any problem contacting a Truper Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800 0187-8737 to get information about the nearest Service Center. -
Page 12: Warranty Policy
. Transportation costs resulting from compliance of this warranty will be covered by For questions or comments, call 800-690-6990. Made in China. Imported by Truper S.A. de C.V. Parque Industrial 1, Parque Industrial Jilotepec, Jilotepec, Edo. de Méx. C.P. 54257 Stamp of the business.
