HIKVISION EXIR DS-2XS6A87G1-L/C32S80 How To Set Up

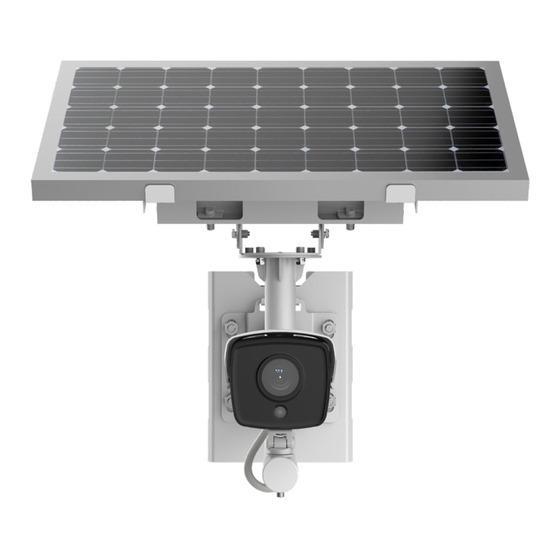

Fixed bullet solar power 4g network camera kit
Hide thumbs

Advertisement

Quick Links

Download this manual
EXIR Fixed Bullet Solar Power 4G Network Camera Kit
How to set up:
 4G Sim
 Power management
 Connecting to HIK-Connect
 Connecting to HIK-Central connection
HIKVISION PRODUCT TEAM
2021-02-23

Advertisement

loading
Need help?

Need help?

Do you have a question about the EXIR DS-2XS6A87G1-L/C32S80 and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION EXIR DS-2XS6A87G1-L/C32S80

Summary of Contents for HIKVISION EXIR DS-2XS6A87G1-L/C32S80

  • Page 1 EXIR Fixed Bullet Solar Power 4G Network Camera Kit How to set up:  4G Sim  Power management  Connecting to HIK-Connect  Connecting to HIK-Central connection HIKVISION PRODUCT TEAM 2021-02-23...

  • Page 2: Basic Introduction

     Support battery management, battery display, battery high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wakeup  LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission, support Micro SIM card  Camera: Water and dust resistant (IP67) © Hikvision Digital Technology Co., Ltd. All Rights Reserved.

  • Page 3: Operation

    Micro Sim should be inserted into Sim card tray located in bottom of camera as seen in image below: Note: Once inserted fix cover back with screws provided 4G Compatibility List © Hikvision Digital Technology Co., Ltd. All Rights Reserved.
  • Page 4 Once enabled & saved the following information should populate as below: IP Address, Subnet mask, Gateway & DNS address. The wireless dial up status should appear connected & signal strength should be displayed. © Hikvision Digital Technology Co., Ltd. All Rights Reserved.
  • Page 5 Once enabled type in personalized “verification code”. As below, hit save “register status” should change to Online.  Next go to HIK-Connect APP: Go to add device (+symbol)-Manual adding-Enter last 9 digits of the devices serial number © Hikvision Digital Technology Co., Ltd. All Rights Reserved.
  • Page 6 Within settings in HIK-Connect app, see below, it is also possible to view or change “Power consumption mode” (explained in part 4) & also view signal strength © Hikvision Digital Technology Co., Ltd. All Rights Reserved.
  • Page 7  Enter Key: This is the personalised passcode that was entered in previous section in camera web page  Enter device name: Name of the camera entered in previous section © Hikvision Digital Technology Co., Ltd. All Rights Reserved.
  • Page 8 If storage is required  Staying within HIK-Central webpage choose: Picture storage-Picture/Video Storage (Pstor)  Staying within same page choose: Time zone-Select correct time zone from list offered Once completed press save. © Hikvision Digital Technology Co., Ltd. All Rights Reserved.
  • Page 9 Once camera is added in HIK-Central check “Register status” in web page of camera. It may be required to refresh both camera webpage & encoding device menu web page before moving on. Once camera is online open up control client to view livestream. © Hikvision Digital Technology Co., Ltd. All Rights Reserved.
  • Page 10 DS-2XS6A25G0-I/CH20S40 HIK-Connect Vs HIK-Central (4) Power Management Consumption modes  Within camera web page go to: Configuration-System settings-Power consumption mode: Choose mode which best suits the application. Full Consumption mode © Hikvision Digital Technology Co., Ltd. All Rights Reserved.
  • Page 11  7 types of Smart events are offered: Line Crossing Detection, Intrusion detection, Region entrance detection, Region exiting detection, Unattended baggage detection, Object removal detection, Scene change detection  Battery life: It is calculated based on 24 hours average power consumption © Hikvision Digital Technology Co., Ltd. All Rights Reserved.
  • Page 12 “Low Power Sleep” mode. This helps save battery life Scheduled Sleep mode Enable. Set up schedule as seen below choosing dates & times that camera will go into sleep mode. Again this will save battery life. © Hikvision Digital Technology Co., Ltd. All Rights Reserved.
  • Page 13 I/CH20S40 Difference between Low Power Sleep & Scheduled Sleep Note:  When camera is in sleep mode, only 4G listening function is available, all recording, VCA event, capture will stop working © Hikvision Digital Technology Co., Ltd. All Rights Reserved.
  • Page 14 DS-2XS6A25G0- I/CH20S40 First Choice for Security Professionals Hikvision Technical Support © Hikvision Digital Technology Co., Ltd. All Rights Reserved.
