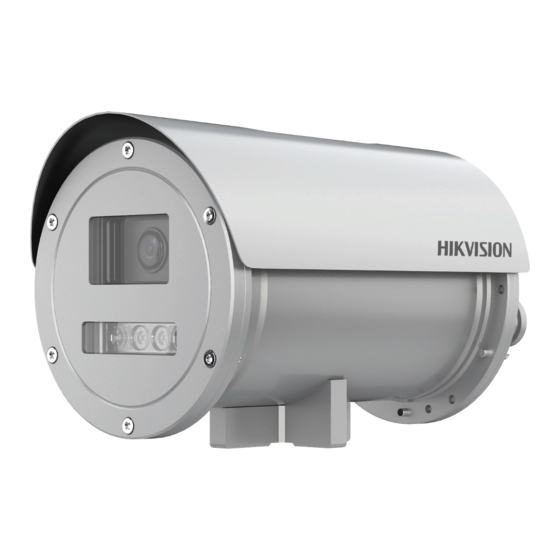

Explosion-proof bullet network camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Explosion-Proof Bullet Network Camera
Quick Start Guide
20200930
UD14888B
0

Advertisement

Table of Contents
loading

Related Manuals for HIKVISION DS-2XE6825G0-IZHS

Summary of Contents for HIKVISION DS-2XE6825G0-IZHS

  • Page 1 Explosion-Proof Bullet Network Camera Quick Start Guide 20200930 UD14888B...
  • Page 2 This Manual is the property of Hangzhou Hikvision Digital Technology Co., Ltd. or its affiliates (hereinafter referred to as “Hikvision”), and it cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision.
  • Page 3 SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS,...
  • Page 4 Network Bullet Camera·Quick Start Guide YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND...
  • Page 5 Network Bullet Camera·Quick Start Guide uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
  • Page 6 Network Bullet Camera·Quick Start Guide unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point.
  • Page 7 Network Bullet Camera·Quick Start Guide UL 60079-31: 2015 CSA 60079-31: 15 Nameplate: Special Conditions for Safe Use: Conditions particulières pour un usage sécuritaire : Ambient Temperature: -30°C ~+60°C, or -40°C ~ +60°C if the camera model has an “H” in its suffix. Température ambiante : -30 °C ~ + 60 °C, ou -40 °C ~ + 60 °C si le modèle de l'appareil contient un «...
  • Page 8 Network Bullet Camera·Quick Start Guide Il s’agit d’un produit de classe A. Dans un environnement domestique, ce produit peut provoquer des interférences radio, auquel cas l’utilisateur peut être amené à prendre les mesures qui s’imposent. Safety Instruction Directives de sécurité These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss.
  • Page 9 Network Bullet Camera·Quick Start Guide Warnings Follow these Cautions Follow these precautions safeguards to prevent to prevent potential injury or serious injury or death. material damage. Avertissements Suivez ces Mises en garde Suivez ces mesures mesures de sécurité afin de prévention afin d’éviter toute d’éviter des blessures blessure ou tout dommage graves ou la mort.
  • Page 10 Network Bullet Camera·Quick Start Guide ● Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user. La configuration appropriée de tous les mots de passe et autres paramètres de sécurité relève de la responsabilité de l'installateur ou de l'utilisateur final.
  • Page 11 Network Bullet Camera·Quick Start Guide Des presse-étoupes antidéflagrants certifiés IECEx/ATEX « db » avec protection anti-poussière « tb » ou raccords répertoriés avec les mêmes classifications pour zones dangereuses, adéquatement installées et adaptées aux conditions d'utilisation. ● IECEx/ATEX certified cable glands are needed during the installation.
  • Page 12 Network Bullet Camera·Quick Start Guide Ne pas connecter plusieurs appareils à un seul adaptateur d’alimentation, car une surcharge de l’adaptateur peut entraîner une surchauffe et un risque d’incendie. ● To avoid fire danger caused by electrostatic charge, never touch or wipe the camera in explosive environment. Perform the wiping and replacing accessories only under non-explosive environment with the provided glove.
  • Page 13 Network Bullet Camera·Quick Start Guide Si la caméra ne fonctionne pas adéquatement, contactez votre distributeur ou le centre de service le plus près. N’essayez jamais de démonter la caméra dôme haute vitesse par vous-même. (Nous déclinons toute responsabilité pour des problèmes causés par une réparation ou un entretien non autorisés.) ●...
  • Page 14 Network Bullet Camera·Quick Start Guide ● In Canada, CSA C22.1, when assembly, operation and maintenance, the operator must follow the requirements of Canadian Electrical Code, Part I. Au Canada, lors du montage, de l’utilisation et de l’entretien, l’opérateur doit respecter les exigences de la partie I du Code canadien de l’électricité...
  • Page 15 Network Bullet Camera·Quick Start Guide ● Do not drop the camera or subject it to physical shock. Ne laissez pas tomber la caméra et ne la soumettez pas à un choc physique. ● To ensure explosion-proof performance, do not damage explosion-proof surface.
  • Page 16 Network Bullet Camera·Quick Start Guide ● The sensor may be burned out by a laser beam, so when any laser equipment is in using, make sure that the surface of sensor will not be exposed to the laser beam. Un faisceau laser peut brûler le capteur et donc, lorsqu’un équipement laser est utilisé, assurez-vous que la surface du capteur ne soit pas exposée au faisceau laser.
  • Page 17 Network Bullet Camera·Quick Start Guide ● Regular part replacement: a few parts (e.g. electrolytic capacitor) of the equipment shall be replaced regularly according to their average enduring time. The average time varies because of differences between operating environment and using history, so regular checking is recommended for all the users.
  • Page 18 Network Bullet Camera·Quick Start Guide ● If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the camera yourself. (We shall not assume any responsibility for problems caused by unauthorized repair or maintenance.) Si l’appareil ne fonctionne pas correctement, veuillez contacter votre distributeur ou le centre de service le plus proche.

  • Page 19: Table Of Contents

    Network Bullet Camera·Quick Start Guide Table of Contents 1 Introduction .................. 19 1.1 Overview ............... 19 1.2 Model Description............19 2 Appearance ................... 21 2.1 Overview ............... 21 2.2 Cable Description ............22 3 Installation ..................24 3.1 Wall Mounting .............. 25 3.2 Cable Connection ............

  • Page 20: Introduction

    Application Scenarios: oil industry, mine fields, chemical industry, port, grain processing industry, etc. Model Description This manual is applicable to the following models: Applicable Model List Table 1-1 Model List DS-2XE6845G0-LZHS DS-2XE6885G0-IZ DS-2XE6825G0-IZHS DS-2XE6845G0-IZHS DS-2XE6885G0-LZHS DS-2XE6825G0-LZ DS-2XE6885G0-IZHS DS-2XE6825G0-IZ DS-2XE6845G0-LZ DS-2XE6825G0-LZHS DS-2XE6845G0-IZ...
  • Page 21 Network Bullet Camera·Quick Start Guide Model Explanation Figure 1-1...

  • Page 22: Appearance

    Network Bullet Camera·Quick Start Guide 2 Appearance Overview Overview Figure 2-1...

  • Page 23: Cable Description

    Network Bullet Camera·Quick Start Guide Cable Description Overview of Cables Figure 2-2 Description of Cables Table 2-1 Description Description Network Alarm*/Power/Audio*/Grounding/CV Interface BS/RS-485 Interface Reset Fiber Optical Interface Interface...
  • Page 24 Network Bullet Camera·Quick Start Guide Serial Port...

  • Page 25: Installation

    Network Bullet Camera·Quick Start Guide 3 Installation Before you start: ● Suitable certified flameproof 'd' and dust ignition protection 't' cable glands, correctly installed and suitable for the conditions of use. ● IECEx/ATEX certified cable glands are needed during the installation.

  • Page 26: Wall Mounting

    Network Bullet Camera·Quick Start Guide ● Make sure that there is no reflective surface too close to the camera lens. The IR light from the camera may reflect back into the lens causing reflection. ● The foam ring around the lens must be seated flush against the inner surface of the bubble to isolate the lens from the IR LEDS.
  • Page 27 Network Bullet Camera·Quick Start Guide Install the bottom base of the PT joint to the wall mounting bracket with the screws. Install Bottom Base to the Bracket Figure 3-3 Drill holes on the mounting plate and install the bracket to the mounting plate with the screws.
  • Page 28 Network Bullet Camera·Quick Start Guide Install the Camera Figure 3-6...

  • Page 29: Cable Connection

    Network Bullet Camera·Quick Start Guide Cable Connection Steps: Loosen the screws to remove the back cover. Remove the Back Cover Figure 3-7 Note: ● Do not unhook the safety rope from the camera when removing the back cover. Be careful with the flameproof surface in case it is damaged.
  • Page 30 Network Bullet Camera·Quick Start Guide Loosen the Gland Nut Figure 3-8 Loosen the thread cap of the adapter. Thread the cable through the adapter, sealing ring, conduit sealing fitting and the conduit. Thread Cap M25 × 1.5-NPT3/4 Flexible Flexible Conduit Fitting Conduit Fitting Conduit Conduit...
  • Page 31 Network Bullet Camera·Quick Start Guide Secure Adapter to the Back Cover Figure 3-10 Connect the cables to the corresponding terminal blocks and fasten the gland nut. Install the back cover to the camera with the screws. Install the Back Cover Figure 3-11 Note: ●...
  • Page 32 Network Bullet Camera·Quick Start Guide Explosion -Proof Hose Explosion- Proof Flexible Steel Pipe or Galvanized Steel pipe Route Cables Figure 3-12 Note: The cables connected to the control room should be protected by explosion-proof flexible steel pipe or galvanized steel pipe.

  • Page 33: Setting The Network Camera Over The Lan

    Network Bullet Camera·Quick Start Guide 4 Setting the Network Camera over the Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection.

  • Page 34: Activating The Camera

    Network Bullet Camera·Quick Start Guide Activating the Camera You are required to activate the camera first by setting a strong password for it before you can use the camera. Activation via Web Browser, Activation via SADP, and Activation via Client Software are all supported. We will take activation via SADP software and Activation via Web Browser as examples to introduce the camera activation.

  • Page 35: Activation Via Sadp Software

    Network Bullet Camera·Quick Start Guide Activation Interface (Web) Figure 4-3 Create a password and input the password into the password field. STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
  • Page 36 Network Bullet Camera·Quick Start Guide Follow the steps to activate the camera. Steps: 1. Run the SADP software to search the online devices. 2. Check the device status from the device list, and select the inactive device. Select inactive device. Input and confirm password.

  • Page 37: Modifying The Ip Address

    Network Bullet Camera·Quick Start Guide STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
  • Page 38 Network Bullet Camera·Quick Start Guide Steps: 1. Run the SADP software. 2. Select an active device. 3. Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the checkbox of Enable DHCP. Modify the IP Address Figure 4-5...
  • Page 39 Network Bullet Camera·Quick Start Guide Note: You can enable the Hik-Connect service for the device during activation. Refer to Chapter 6.1 for detailed information. 4. Input the admin password and click Modify to activate your IP address modification. The batch IP address modification is supported by the SADP. Refer to the user manual of SADP for details.

  • Page 40: Accessing Via Web Browser

    Network Bullet Camera·Quick Start Guide 5 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above version, Mozilla Firefox 5.0 and above version and Google Chrome 18 and above version Steps:...
  • Page 41 Network Bullet Camera·Quick Start Guide 4. Click Login. Login Interface Figure 5-1 5. Install the plug-in before viewing the live video and managing the camera. Follow the installation prompts to install the plug-in. Note: You may have to close the web browser to finish the installation of the plug-in.

  • Page 42: Operating Via Hik-Connect App

    Network Bullet Camera·Quick Start Guide 6 Operating via Hik-Connect App Purpose: Hik-Connect is an application for mobile devices. With the App, you can view live image of the camera, receive alarm notification and so Note: Hik-Connect service is not supported by certain camera models. Enable Hik-Connect Service on Camera Purpose: Hik-Connect service should be enabled on your camera before using...

  • Page 43: Enable Hik-Connect Service Via Web Browser

    Network Bullet Camera·Quick Start Guide Verification Code Setting (SADP) Figure 6-1 Note: The verification code is required when you add the camera to Hik-Connect app. 3. Click and read "Terms of Service" and "Privacy Policy". 4. Confirm the settings. 6.1.2 Enable Hik-Connect Service via Web Browser Before you start: You need to activate the camera before enabling the service.
  • Page 44 Network Bullet Camera·Quick Start Guide Steps: 1. Access the camera via web browser. Refer to Chapter 5. 2. Enter platform access configuration interface: Configuration > Network > Advanced Settings > Platform Access. Platform Access Configuration (Web) Figure 6-2 3. Select Platform Access Mode as Hik-Connect. 4.

  • Page 45: Hik-Connect Setup

    Network Bullet Camera·Quick Start Guide Hik-Connect Setup Steps: 1. Download and install the Hik-Connect app by searching “Hik-Connect” in App Store or Google Play 2. Launch the app and register for a Hik-Connect user account. 3. Log in Hik-Connect app after registration. Adding Camera to Hik-Connect Before you start: You need to enable the Hik-Connect service on camera before...
  • Page 46 Network Bullet Camera·Quick Start Guide You can find the QR code on the camera or on the cover of the Quick Start Guide of the camera in the package. Scan QR Code Figure 6-4 Note: If the QR code is missing or too blur to be recognized, you can also add the camera by tapping the icon and inputting the camera's serial number.

  • Page 47: Initializing The Memory Card

    Network Bullet Camera·Quick Start Guide Initializing the Memory Card Check the memory card status by tapping on the Storage Status in the Device Settings interface. If the memory card status displays as Uninitialized, tap to initialize it. The status will then change to Normal. You can then start recording any event triggered video in the camera such as motion detection.
