Summary of Contents for CIARRA CAB75918B

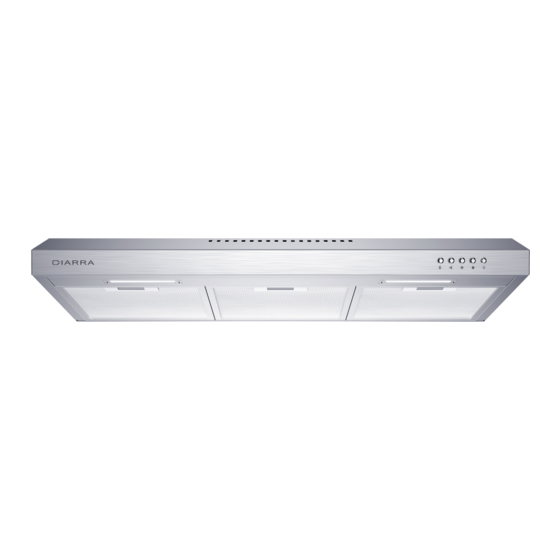

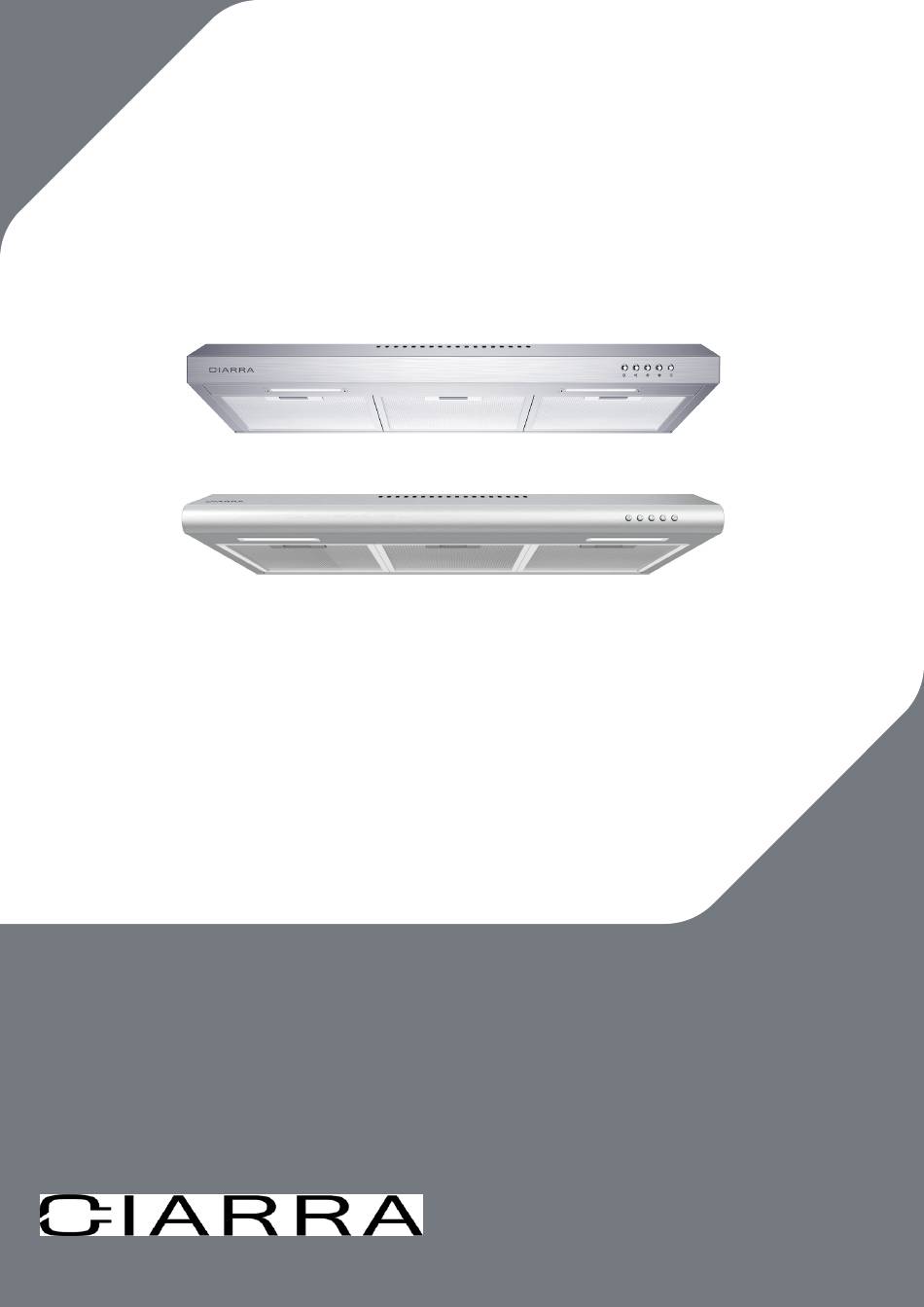

- Page 1 Model Number: CAS75918A CAS75918B CAB75918B www.ciarraappliances.com...
- Page 3 Dear customer: Thank you so much for your purchase, please read this instruction manual carefully before installation & use. If you have any question, please contact us at: info@ciarraappliances.com E-mail:...
-
Page 4: Table Of Contents
CONTENTS Safety--------------------------------------------3-4 Specifications--------------------------------------5 Before Using the Range Hood----------------------6 Prepare for Installation ----------------------------7 Installation--------------------------------------8-14 Install the Hood-------------------------------------------8-12 Carbon Filter Installation---------------------------------13-14 Operation------------------------------------------15 Cleaning and Maintenance ---------------------16-18 Grease Filter------------------------------------------------16 Carbon Filter -----------------------------------------------16 Stainless Steel Cleaning ------------------------------------16 Painted Finish Cleaning-------------------------------------16 LED Replacement----------------------------------------17-18 Troubleshooting------------------------------------19 Environmental Protection --------------------------20... -
Page 5: Safety
Safety WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty. - Page 6 Safety WARNING TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*: SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS.
-
Page 7: Specifications
Specifications Voltage 110V-120V/60Hz Power of Motor 1 x 100W Power of lamps 2x 3W 29.76*19.68*3.94(inch) Appliance Dimension (W x D x H) Note: The manufacturer reserves the right to change any technological improvement or modification without prior notice. -
Page 8: Before Using The Range Hood
Before Using the Range Hood CAUTION: Before proceeding to the installation, check If items are missing or damaged, contact the manufacturer. Observe all governing codes and ordinances. Have a qualified technician install the range hood. It is the installer’s responsibility to comply with installation clearances specified on the model/serial rating plate. -
Page 9: Prepare For Installation
Prepare for Installation Prepare for Installation: a) Ventilation Mode Recirculation Mode: Recirculating with carbon filter (required), the smells and odors can be filtered and vented through the top vented hole and the exhaust pipe is not required. Extraction Mode: You can install the 59" long and 6" diameter aluminum exhaust pipe for extracting, which is included in the installation kit. -
Page 10: Installation
Installation Install the Hood（Extraction）: Remove all protective poly film from the hood and/or parts. 2) Recommend installation height: 25.6"~29.5" above the cooktop for best extraction. Required height over gas hob: 29.5"; Required height over electric hob: 25.6". 25.6" 29.5"... - Page 11 Installation Install the Hood: If present, remove all protective polyfilm from the hood and/or parts. This product can be installed in two different ways (Way 1 and Way 2). Below picture shows the 1:1 hole drawing of different installation methods. Way 1: 1) Install the Outlet Cover on the circular air outlet at the back of the range hood;...
- Page 12 Installation 2) According to the 1:1 hole drawing of Way1, Drill four Ø0.31" holes on the wall, install the wall plug(this step can be ignore if the wall is wooden and instead to use screws to install directly, no need to drill.), insert the upper two wall plugs with 0.16"*1.18"...
- Page 13 Installation Way 2: 1) According to the 1:1 hole drawing of Way 2, mark the following positions with pencil under the cabinet, and use the drilling tool to open the air pipe hole and power cord hole in turn. 2) There are 2 methods for ventilation, including “horizontal ventilation” and “vertical ventilation”.
- Page 14 Installation 3) Install the air outlet assembly on the circular air outlet at the back of the range hood; 4) Align the air ventilation port of the range hood with the cabinet ventilation hole at the bottom, pass the power cord through the power hole, and then use four 0.16"*1.18"...
-
Page 15: Carbon Filter Installation
Installation Activated Carbon Filter Installation: 1. Activated carbon filter can be used to trap odors. In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward. 2. Plug the activated carbon filter into the blower as shown and turn it in anti-clockwise direction. - Page 16 Installation Air ventilation setting ⚫ Outdoor exhausting: Turn the adjuster to outdoor position, install the outlet, turn on the range hood, then the air will be vented from the outside outlet. ⚫ Recycling: the recycling mode with activated carbon filter, Turn the adjuster to indoor position, install the outlet cover, turn on the range hood, then the air can be vented from the inside outlet.
-
Page 17: Operation
Operation Always turn your hood on before you begin cooking to establish an airflow in the kitchen. Let the blower run for a few minutes to clear the air after you turn off the hood. This will help to keep the entire kitchen clean and fresh. Mechanical Push button Operate the hood as follows: Off button... -
Page 18: Cleaning And Maintenance
Cleaning and Maintenance Proper maintenance of the Range Hood will assure proper performance of the unit. Before cleaning unit, unplug or disconnect the range hood from the power supply. GREASE FILTERS The grease filters should be cleaned frequently. Can be cleaned in dishwasher under high temperature without using any detergent. -
Page 19: Led Replacement
Cleaning and Maintenance LED REPLACEMENT Rectangle LED lamp: CAUTION： Before cleaning or repairing and replacing accessories, please make sure to shut down the power before operation, so as to avoid electric shock, damage to human body and even endanger life safety! 1. - Page 20 Cleaning and Maintenance 3. Open the power protection cover, pull out the plug and replace the corresponding model of the LED lamp. 4. Turn the power on and test all blower and light functions to ensure they areoperating properly. Insert the new LED light gently into the light socket, please make sure you aim at the grooves on the lighting panel when installing.
-
Page 21: Troubleshooting
Light is damaged panel and locate the wire Lights are with clip behind the light not working housing. The light wire terminal is Reset the connection loose If problem persists after the above checks, please contact CIARRA Customer Care Centre for assistance. -
Page 22: Environmental Protection
Environmental Protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
