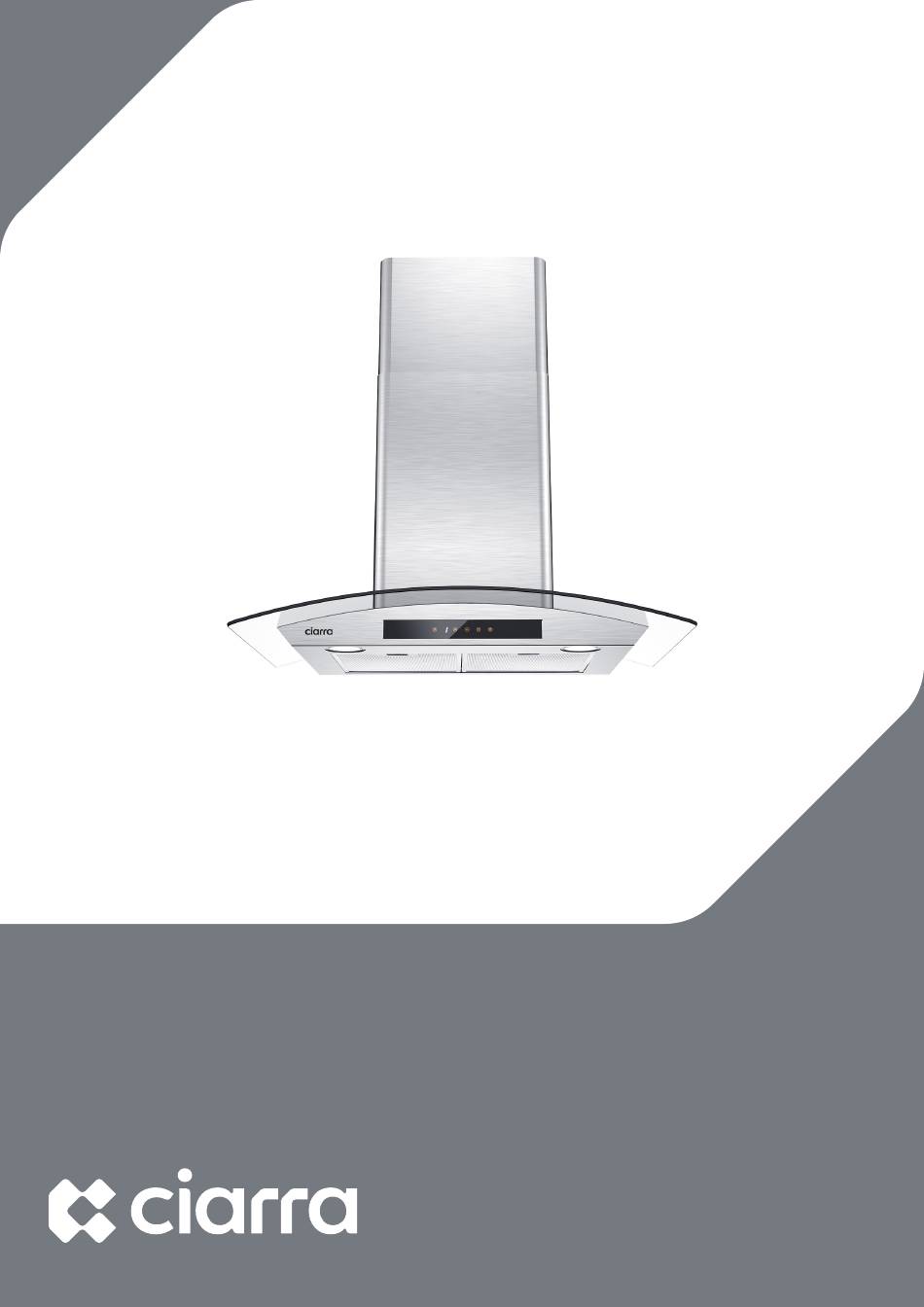

- Page 1 Model Number: CAS75502 CAB75502 CAS90502 CAS75502W www.ciarraappliances.com...
-
Page 3: Dear Customer
Dear customer: Thank you so much for your purchase, please read this instruction manual carefully before installation & use. If you have any question, please contact us at: info@ciarraappliances.com E-mail:... -
Page 4: Table Of Contents
CONTENTS Safety--------------------------------------------3-4 Specifications--------------------------------------5 Before Using the Range Hood----------------------6 Prepare for Installation ----------------------------7 Installation--------------------------------------8-16 Install the Hood-------------------------------------------8-15 Carbon Filter Installation------------------------------------16 Operation---------------------------------------18-28 Touch control --------------------------------------------18-19 Smart life APP-------------------------------------------20-22 Voice control --------------------------------------------23-28 Cleaning and Maintenance---------------------29-31 Grease Filter------------------------------------------------29 Carbon Filter -----------------------------------------------29 Stainless Steel Cleaning ------------------------------------29 Painted Finish Cleaning-------------------------------------29 LED Replacement ---------------------------------------30-31 Troubleshooting-----------------------------------32... -
Page 5: Safety
Safety WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty. - Page 6 Safety WARNING TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*: SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS.
-
Page 7: Specifications
Specifications CAS75502 CAB75502 CAS75502W CAS75502W CAS75502/CAB75502 120V/60Hz Voltage 1 x 200W Power of Motor Power of lamps 2 x 1.5W 29.53"*18.5"*19.45" 29.53"*19.69"*19.45" Appliance Dimension -38.27"(W x D x H) -38.27"(W x D x H) Note: The manufacturer reserves the right to change any... -
Page 8: Before Using The Range Hood
Before Using the Range Hood CAUTION: Before proceeding to the installation, check If items are missing or damaged, contact the manufacturer. Observe all governing codes and ordinances. Have a qualified technician install the range hood. It is the installer’s responsibility to comply with installation clearances specified on the model/serial rating plate. -
Page 9: Prepare For Installation
Prepare for Installation Prepare for Installation: a) Ventilation Mode Recirculation Mode: Recirculating with carbon filter (required), the smells and odors can be filtered and vented through the top vented hole and the exhaust pipe is not required. Extraction Mode: You can install the 59" long and 6" diameter aluminum exhaust pipe for extracting, which is included in the installation kit. -
Page 10: Installation
Installation Install the Hood（Extraction）: Remove all protective poly film from the hood and/or parts. 2) Recommend installation height: 25.6"~29.5" above the cooktop for best extraction. Required height over gas hob: 29.5"; Required height over electric hob: 25.6". 25.6" 29.5"... - Page 11 Installation 3) First use a pencil to mark the installation position on the wall, then use a Measuring Tape to measure the height from the stove surface to the hood (the center point of aluminum grease filter) and use a Spirit Level Ruler to maintain the level, then use a pencil to draw a horizontal line along the level.
- Page 12 Installation 5) Determine the maximum chimney installation height according to the actual scenario and mark the chimney installation locations along the center line of the Installation Diagram. Chimney installation locations 6) Remove the Installation Diagram, drill the holes that have been marked on the wall with an Electric Drill (8mm drill), and hammer the Wall Plug into the wall.
- Page 13 Installation 7) Use three 0.16"*1.18" Screws to fasten the Wall Bracket on the wall. 0.16"*1.18" Screws 0.16"*1.18" Screws COMPONENTS: Part 2: 0.16"*1.18" Screws X 3 Part 10: Wall Bracket X 1 8) Remove the aluminum grease filter and hang the hood on the corresponding hook of the Wall Bracket.
- Page 14 Installation 9) Use a Spirit Level Ruler to measure whether the hood is in a horizontal level, and use two 0.16"*1.18" Screws to lock into the safety hole position of the hood (not mandatory, according to user's wishes to choose whether to lock). 0.16"*1.18"...
- Page 15 Installation 11) Install the Aluminum Exhaust Pipe into the air outlet and lock it with a Cable Tie; the other end of the Aluminum Exhaust Pipe will be pulled upward to outdoor and lock it with a Cable Tie (Note: This step can be ignored if use as recirculation mode with carbon filter).
- Page 16 Installation 13) Insert the Lower Chimney into the hood (Note: That the power cord needs to go through the chimney and connect the power). Power Plug 14) Use two 0.16"*1.18" Screws to lock the Lower Chimney Bracket into the corresponding positioning holes on the wall. 0.16"*1.18"...
- Page 17 Installation 15) Use two 0.16"*1.18" Screws to lock the Upper Chimney Bracket to the corresponding positioning holes on the wall. COMPONENTS: Part 9: Upper Chimney Bracket X 1 Part 2: 0.16"*1.18" Screws X 2 0.16"*1.18" Screws 16) Put the Upper Chimney into the Lower Chimney, and then pulled to the height of the Upper Chimney Bracket.
- Page 18 Installation 17) Use two 0.16"*0.32" Screws to assemble the Upper Chimney on the Upper Chimney Bracket. COMPONENTS: Part 3: 0.16"*0.32" Screws X 2 4*8mm Screws Upper Chimney Bracket 18) Turn the LED lights on/off, and test whether the functions are working properly.
-
Page 19: Carbon Filter Installation
Installation Carbon Filter Installation（Recirculation）: 1. Carbon filter can be used to trap odors. In order to install the carbon filter, the grease filter should be detached first. Press the lock and pull it down. 2. Insert the carbon filter into the specified position of the range hood as shown below (Note the differences between the front and back and the direction of the carbon filter), then push inside the range hood. -
Page 20: Operation
Operation Always turn your hood on before you begin cooking to establish an air flow in the kitchen. Operate the hood as follows: CAS75502W CAS75502 Touch+Wifi+App+Voice control Touch control Control with ALEXA and Google Home Touch control Power key: It's used to turn on/off the power. Press 2S to power on, press 1S to power off. - Page 21 Operation Delay function: When range hood working, could set delay function. Push first time and indicator show1, for delaying 5 minutes; Push second time and indicator show 2, for delaying 10 minutes; Push third time and indicator show 3, for delaying 15 minutes; Push fourth time and indicator show 4, for delaying 20 minutes;...
-
Page 22: Smart Life App
Operation Smart Life APP (Only support CAS75502W) Download and Intallation of Smart Life APP 1. You must use Android phone or iPhone to download and use this APP. 2. Search “Smart Life” in the Google Play store for Android or IOS App Store to download and install the APP. - Page 23 Operation 1. Open the smart life 2. Choose kitchen 3. Choose kitchen hood. app, Click Add Device. appliances from the menu bar on the left. 5. Click "Next" to go 6. Press 2S to power 4. Connect your on,and press the “Delay to the next step.
- Page 24 Operation 9. When you see this 7. Click “Blink Quickly” 8. Adding device... interface it means you and click “Next”. have successfully connected your device. 12. Select "Add 10.Click "Me" and 11. You can create a select "Home members" and share to home or join a home Management".
- Page 25 Operation Voice control with ALEXA (Only support CAS75502W) 1. Precondition: You must have internet access, your devices should be connecting to the same Wi-Fi network. An Echo device, including Echo, Echo Tap, or Echo Dot. Amazon account, if you do not have one; please register one first. ...
- Page 26 Operation 4. Enter "Smart Life" in 5. Click "ENABLE TO USE" 6. Click on "Agree and the search box, find to go to the next step. link" to go to the next "Smart Life" (the icon as step. shown in diagram) in the search list, and click to go to the next step.
-
Page 27: Voice Control
Operation 10. When"1 Fan appears" 11. Click on "Range 12. Now that the Range is displayed, click "View Hood" to go to the next Hood has been added "to go to the next step. step. successfully, you can remotely control various functions of the Range Hood on this interface, or use Alexa Echo to voice... - Page 28 Operation Voice control with Google Home (Only support CAS75502W) 1. Precondition: Before controlling the device with Google Home, please make sure you meet the following terms: You must have internet access, your devices should be connecting to the same Wi-Fi network. ...
- Page 29 Operation 5. Find "Smart Life" (the 4. Enter "Smart Life" in 6. When "Linking your icon as shown in diagram) the search box, perform Smart Life account" is in the search list,click to your search. displayed,the page will go to the next step. loads to the next step.
- Page 30 Operation 5. Notice: "DISCOVER DEVICES" can only discover those devices which have been paired with the "Smart Life App" When you change the name of the device in the "Smart Life App", Google home has to rediscover the device, otherwise you can not control it.
-
Page 31: Cleaning And Maintenance
Cleaning and Maintenance Proper maintenance of the Range Hood will assure proper performance of the unit. Before cleaning unit, unplug or disconnect the range hood from the power supply. GREASE FILTERS The grease filters should be cleaned frequently. Can be cleaned in dishwasher under high temperature without using any detergent. -
Page 32: Led Replacement
Cleaning and Maintenance LED REPLACEMENT Rectangle LED lamp: CAUTION： Before cleaning or repairing and replacing accessories, please make sure to shut down the power before operation, so as to avoid electric shock, damage to human body and even endanger life safety! 1. - Page 33 Cleaning and Maintenance 3. Open the power protection cover, pull out the plug and replace the corresponding model of the LED lamp. 4. Turn the power on and test all blower and light functions to ensure they are operating properly. Insert the new LED light gently into the light socket, please make sure you aim at the grooves on the lighting panel when installing.
-
Page 34: Troubleshooting
Light is damaged panel and locate the wire Lights are with clip behind the light not working housing. The light wire terminal is Reset the connection loose If problem persists after the above checks, please contact CIARRA Customer Care Centre for assistance. -
Page 35: Environmental Protection
Environmental Protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
