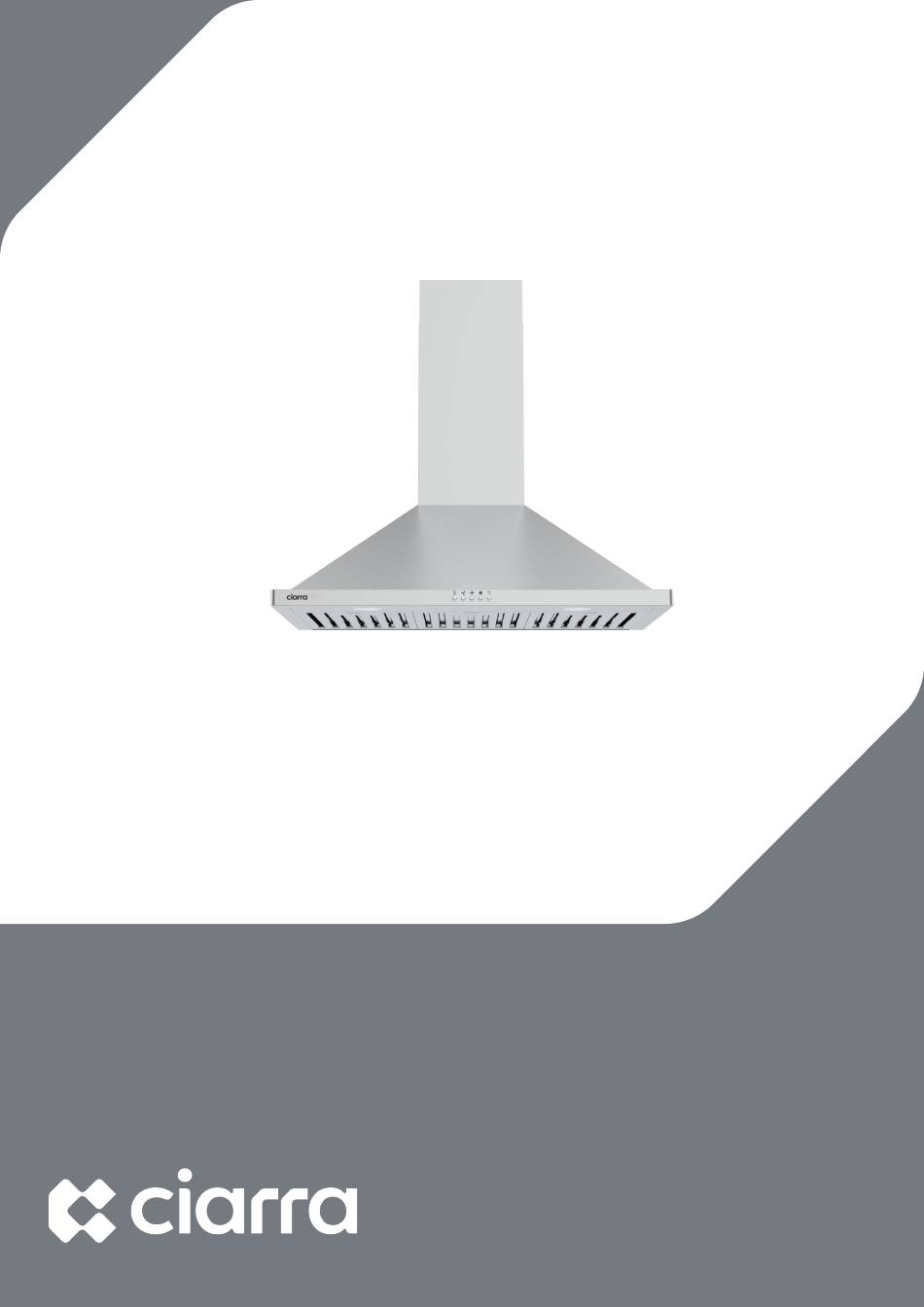

- Page 1 Model Number: CAS75302 www.ciarraappliances.com...
-
Page 3: Dear Customer
Dear customer: Thank you so much for your purchase, please read this instruction manual carefully before installation & use. If you have any question, please contact us at: info@ciarraappliances.com E-mail:... -
Page 4: Table Of Contents
CONTENTS Safety------------------------------------------- 3-4 Specifications--------------------------------------5 Before Using the Range Hood ----------------------6 Prepare for Installation ----------------------------7 Installation--------------------------------------8-17 Install the Hood-------------------------------------------8-16 Carbon Filter Installation------------------------------------17 Operation----------------------------------------- 18 Cleaning and Maintenance---------------------19-21 Grease Filter------------------------------------------------19 Carbon Filter -----------------------------------------------19 Stainless Steel Cleaning ------------------------------------19 Painted Finish Cleaning-------------------------------------19 LED Replacement---------------------------------------20-21 Troubleshooting-----------------------------------22 Environmental Protection -------------------------23... -
Page 5: Safety
Safety WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty. - Page 6 Safety WARNING TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*: SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS.
-
Page 7: Specifications
Specifications Voltage 120V~ 60Hz Power of Motor 1 x 200W Power of lamps 2x 3W 29.53*18.5*25.12-39.37(inches) Appliance Dimension (W x D x H) Note: The manufacturer reserves the right to change any technological improvement or modification without prior notice. -
Page 8: Before Using The Range Hood
Before Using the Range Hood CAUTION: Before proceeding to the installation, check If items are missing or damaged, contact the manufacturer. Observe all governing codes and ordinances. Have a qualified technician install the range hood. It is the installer’s responsibility to comply with installation clearances specified on the model/serial rating plate. -
Page 9: Prepare For Installation
Prepare for Installation Prepare for Installation: a) Ventilation Mode Recirculation Mode: Recirculating with carbon filter (required), the smells and odors can be filtered and vented through the top vented hole and the exhaust pipe is not required. Extraction Mode: You can install the 59" long and 6" diameter aluminum exhaust pipe for extracting, which is included in the installation kit. -
Page 10: Installation
Installation Install the Hood（Extraction）: Remove all protective poly film from the hood and/or parts. 2) Recommend installation height: 25.6"~29.5" above the cooktop for best extraction. Required height over gas hob: 29.5"; Required height over electric hob: 25.6". 25.6" 29.5"... - Page 11 Installation 3) First use a pencil to mark the installation position on the wall, then use a Measuring Tape to measure the height from the stove surface to the hood (the center point of aluminum grease filter) and use a Spirit Level Ruler to maintain the level, then use a pencil to draw a horizontal line along the level.
- Page 12 Installation 5) Determine the maximum chimney installation height according to the actual scenario and mark the chimney installation locations along the center line of the Installation Diagram. Chimney installation locations 6) Remove the Installation Diagram, drill the holes that have been marked on the wall with an Electric Drill (8mm drill), and hammer the Wall Plug into the wall.
- Page 13 Installation 7) Use three 0.16"*1.18" Screws to fasten the Wall Bracket on the wall. 0.16"*1.18" Screws 0.16"*1.18" Screws COMPONENTS: Part 2: 0.16"*1.18" Screws X 3 Part 10: Wall Bracket X 1 8) Remove the aluminum grease filter and hang the hood on the corresponding hook of the Wall Bracket.
- Page 14 Installation 9) Use a Spirit Level Ruler to measure whether the hood is in a horizontal level, and use two 0.16"*1.18" Screws to lock into the safety hole position of the hood (not mandatory, according to user's wishes to choose whether to lock). 0.16"*1.18"...
- Page 15 Installation 11) Install the Aluminum Exhaust Pipe into the air outlet and lock it with a Cable Tie; the other end of the Aluminum Exhaust Pipe will be pulled upward to outdoor and lock it with a Cable Tie (Note: This step can be ignored if use as recirculation mode with carbon filter).
- Page 16 Installation 13) Insert the Lower Chimney into the hood and fix it to the corresponding positioning hole with two 0.16"*0.32" Screws. (Note: That the power cord needs to go through the chimney and connect the power). COMPONENTS: Part 3: 0.16"*0.32" Screws X 2 Power Plug 0.16"*0.32"...
- Page 17 Installation 15) Use two 0.16"*1.18" Screws to lock the Upper Chimney Bracket to the corresponding positioning holes on the wall. COMPONENTS: Part 9: Upper Chimney Bracket X 1 Part 2: 0.16"*1.18"Screws X 2 0.16"*1.18" Screws 16) Put the Upper Chimney into the Lower Chimney, and then pulled to the height of the Upper Chimney Bracket.
- Page 18 Installation 17) Use two 0.16"*0.32" Screws to assemble the Upper Chimney on the Upper Chimney Bracket. COMPONENTS: Part 3: 0.16"*0.32" Screws X 2 0.16"*0.32" Screws Upper Chimney Bracket 18) Turn the LED lights on/off, and test whether the functions are working properly.
-
Page 19: Carbon Filter Installation
Installation Carbon Filter Installation（Recirculation）: Carbon filter can be used to trap odors. In order to install the carbon filter, the grease filter should be detached first. Press the lock and pull it down. 2. Place the carbon filter into the unit and turn it in the clockwise direction to lock it in place. -
Page 20: Operation
Operation Always turn your hood on before you begin cooking to establish an airflow in the kitchen. Let the blower run for a few minutes to clear the air after you turn off the hood. This will help to keep the entire kitchen clean and fresh. Mechanical Push button Operate the hood as follows: Off button... -
Page 21: Cleaning And Maintenance
Cleaning and Maintenance Proper maintenance of the Range Hood will assure proper performance of the unit. Before cleaning unit, unplug or disconnect the range hood from the power supply. GREASE FILTERS The grease filters should be cleaned frequently. Can be cleaned in dishwasher under high temperature without using any detergent. -
Page 22: Led Replacement
Cleaning and Maintenance LED REPLACEMENT Rectangle LED lamp: CAUTION： Before cleaning or repairing and replacing accessories, please make sure to shut down the power before operation, so as to avoid electric shock, damage to human body and even endanger life safety! 1. - Page 23 Cleaning and Maintenance 3. Open the power protection cover, pull out the plug and replace the corresponding model of the LED lamp. 4. Turn the power on and test all blower and light functions to ensure they areoperating properly. Insert the new LED light gently into the light socket, please make sure you aim at the grooves on the lighting panel when installing.
-
Page 24: Troubleshooting
Light is damaged panel and locate the wire Lights are with clip behind the light not working housing. The light wire terminal is Reset the connection loose If problem persists after the above checks, please contact CIARRA Customer Care Centre for assistance. -
Page 25: Environmental Protection
Environmental Protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
