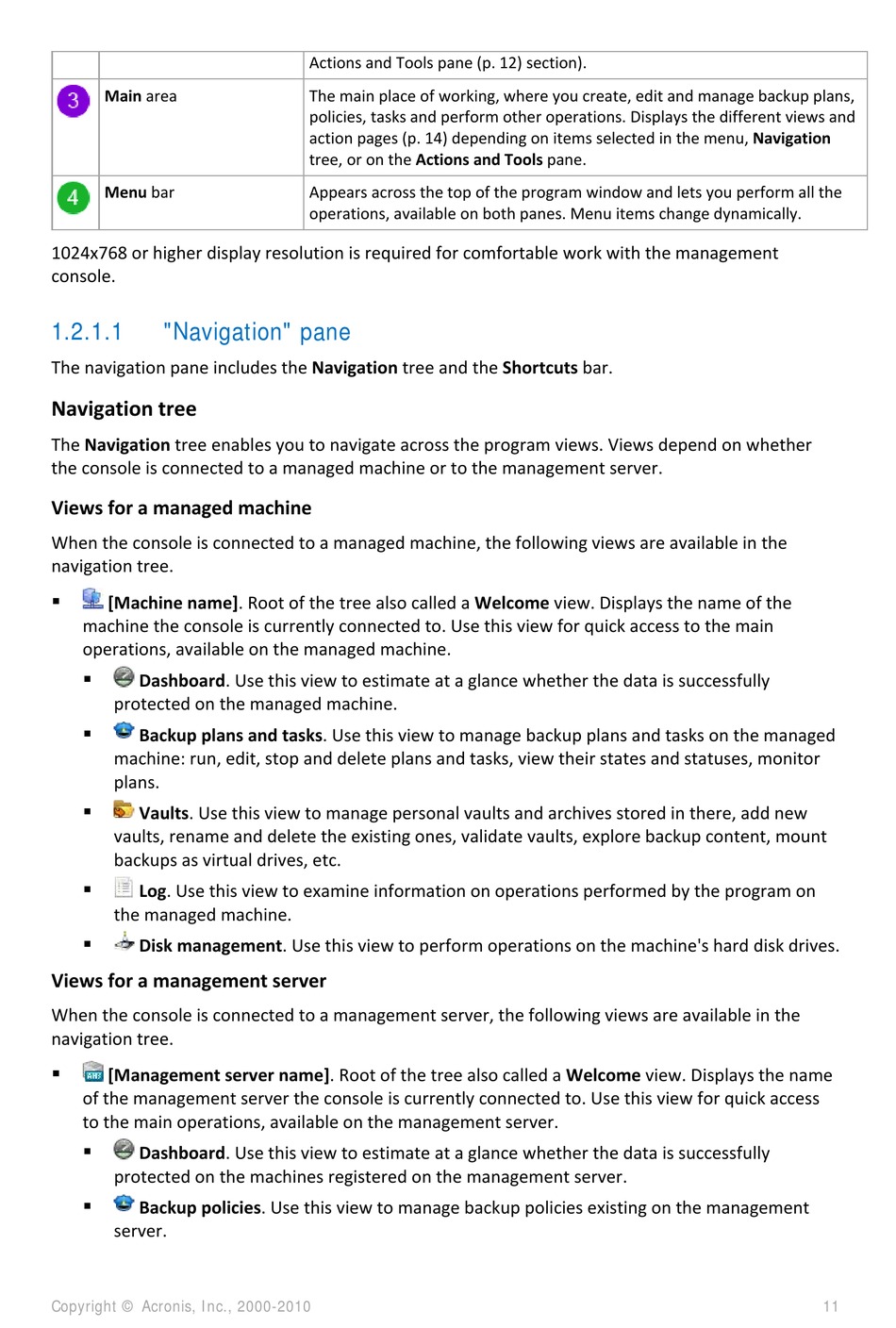

ACRONIS Backup & Recovery 10 Advanced Server User Manual page 11

Main area
Menu bar
1024x768 or higher display resolution is required for comfortable work with the management
console.
1.2.1.1 "Navigation" pane
The navigation pane includes the Navigation tree and the Shortcuts bar.
Navigation tree
The Navigation tree enables you to navigate across the program views. Views depend on whether
the console is connected to a managed machine or to the management server.
Views for a managed machine
When the console is connected to a managed machine, the following views are available in the
navigation tree.
 [Machine name]. Root of the tree also called a Welcome view. Displays the name of the
machine the console is currently connected to. Use this view for quick access to the main
operations, available on the managed machine.
 Dashboard. Use this view to estimate at a glance whether the data is successfully
protected on the managed machine.

Backup plans and tasks. Use this view to manage backup plans and tasks on the managed
machine: run, edit, stop and delete plans and tasks, view their states and statuses, monitor
plans.

Vaults. Use this view to manage personal vaults and archives stored in there, add new
vaults, rename and delete the existing ones, validate vaults, explore backup content, mount
backups as virtual drives, etc.

Log. Use this view to examine information on operations performed by the program on
the managed machine.

Disk management. Use this view to perform operations on the machine's hard disk drives.
Views for a management server
When the console is connected to a management server, the following views are available in the
navigation tree.
 [Management server name]. Root of the tree also called a Welcome view. Displays the name
of the management server the console is currently connected to. Use this view for quick access
to the main operations, available on the management server.
 Dashboard. Use this view to estimate at a glance whether the data is successfully
protected on the machines registered on the management server.

Backup policies. Use this view to manage backup policies existing on the management
server.
Copyright © Acronis, Inc., 2000-2010
Actions and Tools pane (p. 12) section).
The main place of working, where you create, edit and manage backup plans,
policies, tasks and perform other operations. Displays the different views and
action pages (p. 14) depending on items selected in the menu, Navigation
tree, or on the Actions and Tools pane.
Appears across the top of the program window and lets you perform all the
operations, available on both panes. Menu items change dynamically.
11
