Summarization of Contents
BEFORE INSTALLATION
Inspect Box
Inspect all system components for missing or damaged parts before installation.
Technical Parameters
Details model specifications, filters, flow rate, temperature, and pressure for SW10F, SW15F, SW20F.
Precautions
Safety and usage guidelines, including water quality, temperature, freezing, and child access.
PRODUCT INTRODUCTION
Filter System Components

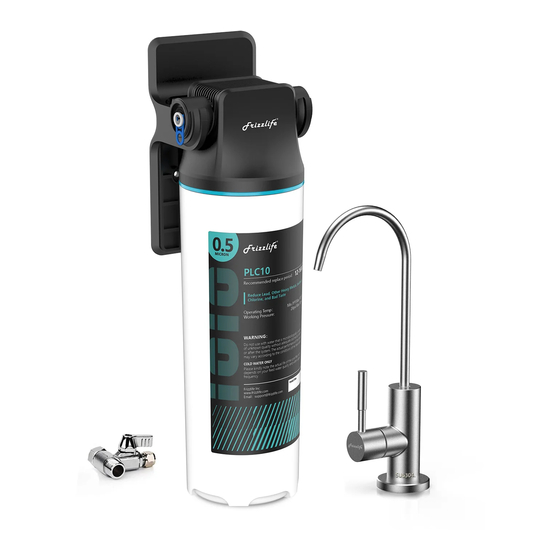

Lists and illustrates all parts included in the Frizzlife SW10F/SW15F/SW20F under sink water filter system.
SAMPLE CONNECTION
Connection Diagram
Illustrates the water filter system's connection layout under a sink with a dedicated faucet.
INSTALLATION TIPS
Tubing Cutting
Instructions on cutting tubing squarely and cleanly for proper connection to fittings.
Tubing Connection/Disconnection
Guides on inserting tubing fully into fittings and using blue clips for secure connection/disconnection.
Drilling Sink Hole (Optional)
Details on drilling a sink hole using a 1/2" bit, recommending safety glasses for protection.
INSTALLATION STEPS
Step 1: Mount the System (Optional)
Instructions for mounting the filter system using screws, at least 2 inches from the ground for accessibility.
Step 2: Cut the Tubing
Guides on cutting 1/4" tubing into inlet and outlet sections based on system needs.
Step 3: Connect 3-Way Feed Water Valve
Steps to load tubing, push it fully, and securely tighten the nut on the 3-way feed water valve.
Step 4: Connect Water Supply (Cold Water)
Procedures for shutting off water supply and connecting the 3-way valve to the cold water line.
Step 5: Connect Filter System
Instructions for connecting inlet and outlet tubing to the filter system ports using blue clips.
Step 6: Install Faucet
Guides on mounting the faucet to the sink top and connecting it to the filter system via quick fittings.
Step 7: Check for Leaks
Instructions to turn on water, check for leaks, and flush the system for 15 minutes before use.
REPLACEMENT FILTER
Filter Model and Service Life
Table showing system models (SW10F, SW15F, SW20F) with corresponding replacement filters and service life.
FILTER REPLACEMENT INSTRUCTION
Twist Housing Clockwise
First step to replace the filter cartridge by twisting the housing clockwise.
Unscrew Housing Body
Second step to unscrew the housing body using the provided wrench for filter access.
Replace Cartridge
Third step involves removing the old cartridge and installing a new one in the same manner.
Flush New Cartridge
Final step to flush the new cartridge for 15 minutes before starting regular use.
MULTI-USAGE
Refrigerator/Ice Maker Connection Kit
Information on connecting the filter system to refrigerators/ice makers using the IMC-1 kit.
PERFORMANCE DATA
Filtration Effectiveness
Table comparing influent challenge concentration with maximum permissible product water concentration for key substances.
FREQUENTLY ASKED QUESTIONS
Water Leak Troubleshooting
Advice on handling water leaks after installation, including shutting off supply and using plumber tape.
TDS Explanation
Explains why TDS might not drop significantly, referencing mineral content and contaminant removal.
Filter Replacement Timing
Recommends replacement intervals for filter cartridges based on model and daily water usage.
LIMITED PRODUCT WARRANTY
One Year Limited Warranty Terms
Details the terms of the one-year limited warranty for the Frizzlife under sink water filtration system.
Owner's Warranty Responsibilities
Outlines owner's duties like periodic maintenance and conditions that may void the warranty.
WARRANTY REGISTRATION
How to Register Warranty
Instructions for registering the product for warranty via email or scanning a QR code.
