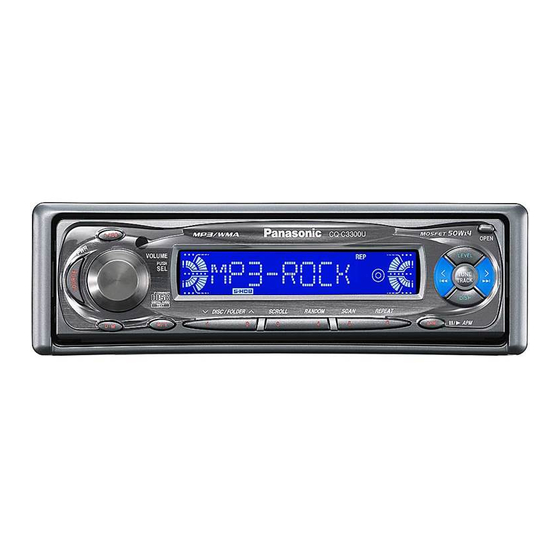

Panasonic CQ-C3300U - In-Dash CD Player Service Manual

CQ-C3400U / CQ-C3300U / CQ-C3200U / CQ-C3100U
Removable Full Front MP3 WMA CD Player / Receiver with CD
SPECIFICATIONS
General
Power Supply
Current Consumption
Maximum Power Output
Tone Adjustment Range
Speaker Impedance
Pre-Amp Output Voltage
Pre-Amp Output Impedance
<CQ-C3200U/CQ-C3400U>
Subwoofer output voltage
Subwoofer output impedance
FM Stereo Radio
Frequency Range
Usable Sensitivity
ORDER No. ACED031221C7
AUTOMOTIVE AFTERMARKET
Specifications*
DC 12V (11V - 16V),
Test Voltage 14.4V
Negative Ground
Less than 2.2A / (CD mode ;
0.5W 4-speaker)
50W×4ch (at 1kHz)
Bass ; ±12dB at 100Hz
Treble ; ±12dB at 10kHz
4-8
2.5V (CD mode ; 1kHz 0dB)
200
2.5V
200
87.9MHz - 107.9MHz
10.2dBf. (0.9 V, 75
1
Changer Control
)
C4
