Specifications*
General
Power Supply
Tone Control (Bass)
Tone Control (Treble)
Current Consumption
Maximum Power Output
Power Output
Speaker Impedance
Pre-amp Output Voltage
Pre-amp Output Impedance
CD Player
Sampling Frequency
Pick-up Type
Light Source
Wave Length
Frequency Response
Signal to Noise Ratio
Total Harmonic Distortion
Wow and Flutter
Channel Separation
12V DC(11V-16V),
Test Voltage 14.4V
Negative Ground
±12dB at 100Hz
±12dB at 10Hz
Less than 2.5A
(CD mode; 0.5W × 4-speaker)
45W × 4 (at 4Ω)
20W × 4 (DIN45 324, at 4Ω)
4 - 8Ω
2.5V (CD mode)
200Ω
8 Times Oversampling
Astigma 3-Beam
Semiconductor Laser
780 nm
20 Hz-20kHz (±1dB)
96dB
0.01% (1kHz)
Below Measurable Limits
75dB

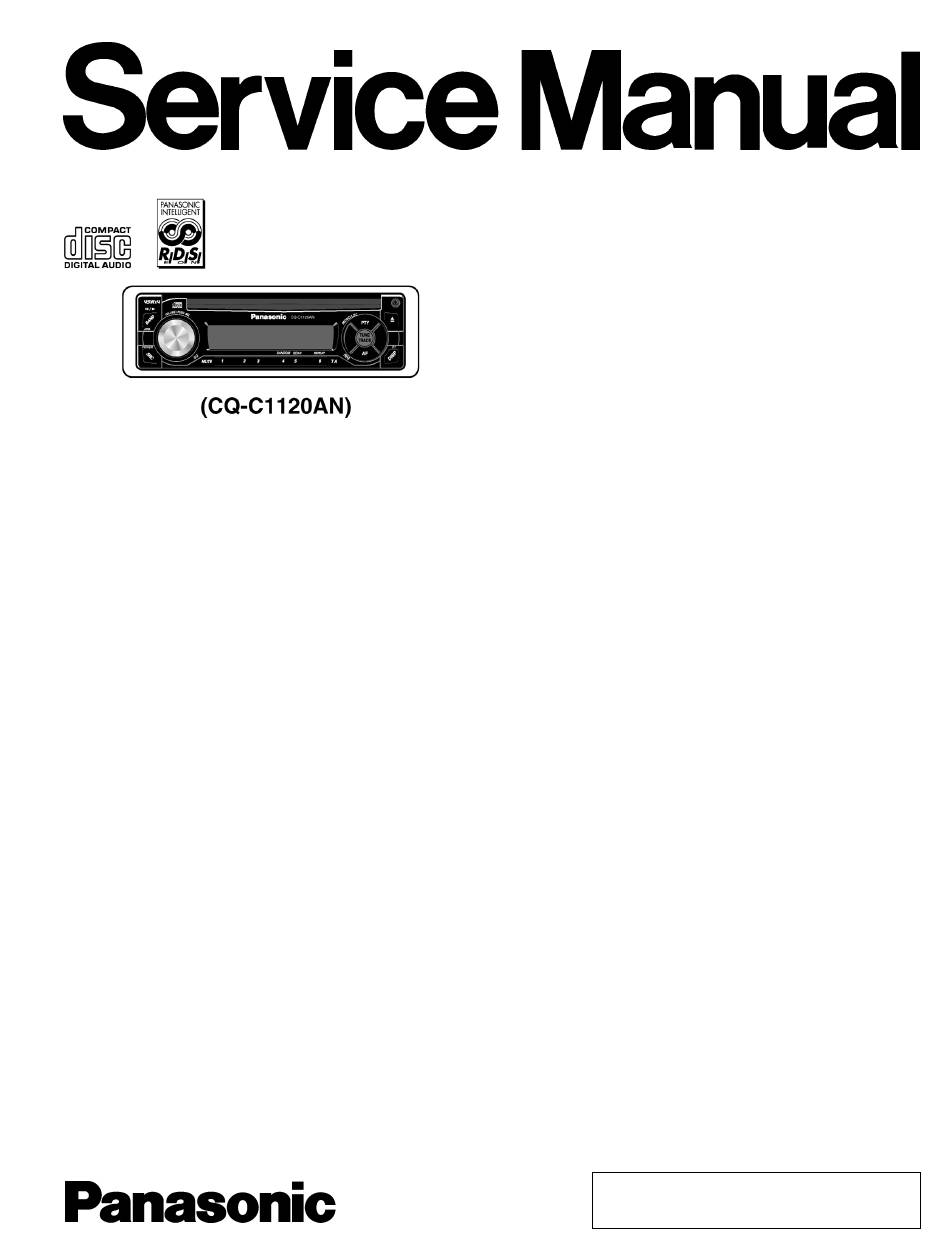

AUTOMOTIVE AFTERMARKET
CQ-C1120AN
CQ-C1120GN
CQ-C1110AN
CQ-C1110GN
CQ-C1100VN
CD Player/Receiver
Radio
FM
Frequency Range
Usable Sensitivity
Stereo Separation
MW
Frequency Range
Usable Sensitivity
LW
Frequency Range
Usable Sensitivity
Dimensions (W×H×D)**
Weight**
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
** Above specifications comply with EIA standards.
© 2004 Matsushita Electric Industrial Co., Ltd. All
rights
reserved.
distribution is a violation of law.
ORDER NO. ACED040125C8
87.5MHz - 108MHz
6dB/µV(S/N 30dB)
35dB (at 1kHz)
531kHz - 1,602kHz
28dB/µV (S/N 20dB)
153kHz - 279kHz
32dB/µV (S/N 20dB)
178×50×155mm
1.4 kg
Unauthorized
copying
and

Advertisement

Table of Contents

   Related Manuals for Panasonic CQ-C1110AN

   Summary of Contents for Panasonic CQ-C1110AN

  • Page 1 ORDER NO. ACED040125C8 AUTOMOTIVE AFTERMARKET CQ-C1120AN CQ-C1120GN CQ-C1110AN CQ-C1110GN CQ-C1100VN CD Player/Receiver Specifications* General Power Supply 12V DC(11V-16V), Radio Test Voltage 14.4V Negative Ground Frequency Range 87.5MHz - 108MHz Tone Control (Bass) ±12dB at 100Hz Usable Sensitivity 6dB/µV(S/N 30dB) Tone Control (Treble) ±12dB at 10Hz...
  • Page 2: Table Of Contents

    CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN CONTENTS Page Page 1 ABOUT LEAD FREE SOLDER (PbF) 10 TERMINALS DESCRIPTION 2 FEATURES 11 PACKAGE AND IC BLOCK DIAGRAM 3 FUSE 12 REPLACEMENT PARTS LIST 4 MAINTENANCE 13 EXPLODED VIEW (Unit)
  • Page 3: About Lead Free Solder (pbf)

    CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN 1 ABOUT LEAD FREE 5 NOTES [RADIO BLOCK] SOLDER (PbF) Do not align the AM/FM package block. When the package Distinction of PbF PCB: block is necessary, it will be supplied already aligned at the factory.
  • Page 4: Wiring Connection

    CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN 8 WIRING CONNECTION...
  • Page 5: Block Diagram

    CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN 9 BLOCK DIAGRAM 9.1. Main/Display Block...
  • Page 6 CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN 9.2. CD Servo Block...
  • Page 7: Terminals Description

    CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN 10 TERMINALS DESCRIPTION 10.1. Main Block Port Description FM AM CD IC601 : C2CBHF000322 62 CD_SW1 CD SW1 signal input Port Description 63 RDS_CLK RDS clock input 2.6 2.5 2.6 FM AM CD...
  • Page 8 CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN 10.3. CD Servo Block Port Description 63 TD Tracking Drive IC1 : C1BB00000665 Port Description 64 SD Sled Drive 65 MD Motor Drive D.GND Digital Ground 66 DAC0(NC) No connection RFOK...
  • Page 9: Package And Ic Block Diagram

    CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN 11 PACKAGE AND IC BLOCK DIAGRAM 11.1. Main Block IC201 : C1BB00000543 IC401 : C1BB00000644...
  • Page 10 CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN IC701 : C0DAZHH00007 IC702 : MN1382QTX IC271 : C1EA00000036 IC901 : YEAMDA7479D...
  • Page 11 CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN 11.2. CD Servo Block IC4 : C0GBY0000024...
  • Page 12: Replacement Parts List

    CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN 12 REPLACEMENT PARTS Ref. Part No. Part Name & Description Remarks D370 YEADDSM1D2T7 Diode LIST D371 YEADDSM1D2T7 Diode D372 YEADDSM1D2T7 Diode Notes : D373 YEADDSM1D2T7 Diode D602 B0ADCJ000020 Diode 1. Be sure to make your orders of replacement parts...
  • Page 13 CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks Chip, 0Ω Ω Ω Ω 1/8W C408 F1J1H103A513 Ceramic, 0.01µF 50WV J218 ERJ8GX0R00V Chip, 0Ω Ω Ω Ω 1/8W...
  • Page 14 CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks Chip, 47kΩ Ω Ω Ω 1/10W R600 ERJ6GEYJ473 Chip, 1kΩ Ω Ω Ω 1/10W R607...
  • Page 15 CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks D920 B3AAB0000143 Diode D921 B3ADB0000043 Diode SWITCHes D921 B3ABB0000161 Diode SW901 K9AA024A0007 Switch D921 B3AAB0000143...
  • Page 16 CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks Chip, 10kΩ Ω Ω Ω 1/16W ERJ3GEYJ103V Chip, 2.2kΩ Ω Ω Ω 1/10W ERJ6GEYJ222 Chip, 3.9kΩ Ω Ω Ω 1/16W...
  • Page 17 CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN Ref. Part No. Part Name & Description Remarks YEFA031817A Upper Cover YEFC028196 Rear Cover, Escutcheon YEFS02302 Pad, Rear Cover YGFX9991689A Lever, Back Cover YEFX0053018 Spring YEFS011113 YEFX0052175 Spring YGFE134716 Button, Back Cover...
  • Page 18: Exploded View (unit)

    CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN 13 EXPLODED VIEW (Unit)
  • Page 19: Cd Player Mechanism Part

    CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN 14 CD PLAYER MECHANISM Ref. Part No. Part Name & Description Remarks YERJT01001 Tapping Screw 2*3 PART YERJT01002 Tapping Screw 2*4 YEJT03117 Tapping Bind Screw 2*4 Ref. Part No. Part Name & Description...
  • Page 20: Exploded View (cd Deck)

    CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN 15 EXPLODED VIEW (CD Deck)
  • Page 21: Wiring Diagram

    CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN 16 WIRING DIAGRAM 16.1. Display Block [E-9408][Top View] [E-9408][Bottom View] CQ-C1120AN/C1120GN/C1110AN/C1110GN/C1100VN DISPLAY P.C.B...
  • Page 22 CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN 16.2. Main Block (Top View) [E-6983a][Top View] CQ-C1120AN/C1120GN/C1110AN/C1110GN/C1100VN MAIN P.C.B...
  • Page 23 CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN 16.3. Main Block (Bottom View) [E-6983a][Bottom View] CQ-C1120AN/C1120GN/C1110AN/C1110GN/C1100VN MAIN P.C.B...
  • Page 24 CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN 16.4. CD Servo Block [E-9414][Top View] CQ-C1120AN/C1120GN/C1110AN/C1110GN/1100VN CD Servo P.C.B...
  • Page 25: Schematic Diagram-1

    CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN 17 SCHEMATIC DIAGRAM-1 17.1. Display Block...
  • Page 26 CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN...
  • Page 27 CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN 18 SCHEMATIC DIAGRAM-2 18.1. Main Block...
  • Page 28 CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN 18.2. CD Servo Block Printed in Japan 2004.1 (K) (Recycled Paper)
  • Page 29: Schematic Diagram-2

    18 SCHEMATIC DIAGRAM-2 18.1. Main Block...
  • Page 30 CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN...
  • Page 31 CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN 18.2. CD Servo Block...
  • Page 32 CQ-C1120AN / CQ-C1120GN / CQ-C1110AN / CQ-C1110GN / CQ-C1100VN...
