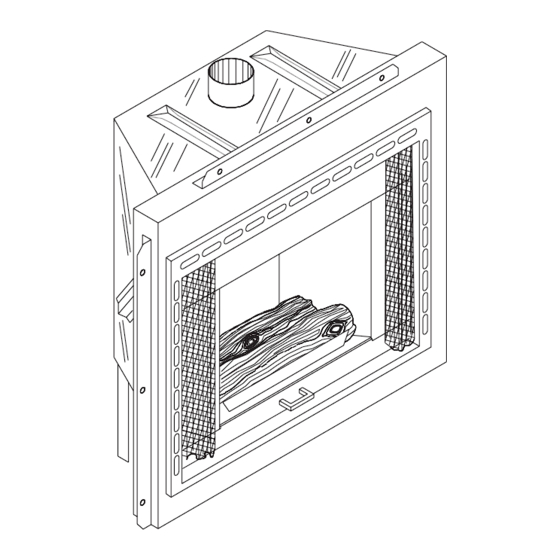

B-VENT DECORATIVE GAS FIREPLACE
OWNER'S OPERATION AND INSTALLATION MANUAL
VGL450N (NATURAL) AND VGL450P (PROPANE/LP)
FOR YOUR SAFETY
— Do not store or use gasoline or any other flam-
mable vapors or liquids in the vicinity of this or
any other appliance.
— Due to high temperatures, the appliance should
be located out of traffic and away from furniture
and draperies.
— Do not place clothing or other flammable mate-
rials on or near the appliance.
— NEVER leave children unattended when a fire is
burning in the appliance.
— WHAT TO DO IF YOU SMELL GAS :
• Do not try to light any appliance.
• Do not touch any electrical switch;
• Do not use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the
fire department.
This appliance may be installed in an aftermarket* manufactured (mobile) home, where not prohibited by state
or local codes.
*Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer.
CHECK LOCAL CODES PRIOR TO INSTALLATION
Save this manual for future reference.
®
SAVE THIS BOOK
This book is valuable. In addition to instructing
you on how to install and maintain your appli-
ance, it also contains information that will
enable you to obtain replacement parts or
optional accessory items when needed. Keep
it with your other important papers.
WARNING: Improper installation,
adjustment, alteration, service or
maintenance can cause injury or
property damage. Refer to this
manual. For assistance or additional
information consult a qualified in-
staller, service agency, or the gas
supplier.
WARNING: THE DECORATIVE GAS APPLI-
ANCE SERIES IS INTENDED FOR USE WITH
NATURAL OR PROPANE GAS ONLY ! (DE-
PENDING ON THE TYPE OF GAS YOUR
PARTICULAR MODEL IS APPROVED FOR).
DO NOT ATTEMPT TO BURN ANY SOLID
FUELS IN THESE APPLIANCES.
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vanguard VGL450N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Desa Vanguard VGL450N

  • Page 1 B-VENT DECORATIVE GAS FIREPLACE OWNER’S OPERATION AND INSTALLATION MANUAL VGL450N (NATURAL) AND VGL450P (PROPANE/LP) FOR YOUR SAFETY — Do not store or use gasoline or any other flam- mable vapors or liquids in the vicinity of this or any other appliance.
  • Page 2 VGL450 Series ® VENTED TYPE DECORATIVE APPLIANCE 19" 36" 33" " " 24" 32" Figure 1 - Appliance Dimensions Note: All dimensions in this installation manual are in inches unless otherwise specified. PILOT ADJ Figure 2 - Location of Pilot Assembly and Control Valve (Access Panel and Logs Removed for Clarity) 4"...
  • Page 3: Selecting Location

    This appliance requires a 4" B-1 type vent- ing system. 4" B-1 type vent NOT supplied by DESA. Check with your "B" vent instructions for installation guidelines. WARNING: This gas appli-...
  • Page 4: Pre-Installation Preparation

    VGL450 Series ® VENTED TYPE DECORATIVE APPLIANCE PRE-INSTALLATION PREPARATION CLEARANCES Minimum clearances to combustibles are: • Back and sides of outer surround: ... 0" min. • Drywall to sides of front face: ... 0" min. • "B" Vent surfaces: ... 1" min. •...
  • Page 5: Venting Installation

    PRE-INSTALLATION PREPARATION Continued Proceed to secure appliance to prepared framing at nailing flanges located at the sides of the appliance as shown in Figure 11. Nailing Flanges Framing Nails Figure 11 - Attaching Fireplace to Wall Studs 105704 OWNER’S MANUAL VENTING INSTALLATION A 4"...
  • Page 6: Wall Switch Installation

    VGL450 Series ® VENTED TYPE DECORATIVE APPLIANCE INSTALLATION WALL SWITCH INSTALLATION The installation of a wall switch in this appliance allows you to activate the gas control valve without the use of normal current. CAUTION: Do not wire this millivolt system wall switch to a regular power supply.
  • Page 7 INSTALLATION Continued Installing 9-Volt Battery in Hand- Held Remote Control Unit 1. Remove battery cover on back of re- mote control unit. 2. Attach terminal wires to the battery (not included). Place battery into the battery housing. Note: Only use alka- line battery.
  • Page 8 VGL450 Series ® VENTED TYPE DECORATIVE APPLIANCE INSTALLATION Continued GAS LINE HOOK-UP NOTICE: Gas line hookup should be done by your gas supplier or a qualified service person. WARNING: Before you pro- ceed, make sure your gas supply is OFF. A manual shut-off valve must be included within (6') six feet of the appliance’s gas supply system.
  • Page 9: Operating Fireplace

    INSTALLATION Continued 2. Place log #2 (large front log) in groove on firebox floor in front of burner with log texture facing up and out (see Figure 22). 3. Place lava rock along sides and front of inside of firebox bottom. It is not necessary to use all of the lava rock provided.
  • Page 10: Pilot Assembly Adjustment

    VGL450 Series ® VENTED TYPE DECORATIVE APPLIANCE OPERATING FIREPLACE Continued TO TURN OFF GAS TO APPLIANCE 1. Turn off the wall switch. 2. Turn off all electric power to the ap- pliance if service is to be performed. 3. Remove control access panel. 4.
  • Page 11: Wiring Diagram

    If so, contact your local propane/LP gas supplier. TECHNICAL SERVICE You may have further questions about in- stallation, operation, or troubleshooting. If so, contact DESA International’s Tech- nical Service Department at 1-800-323- 5190. You can also visit DESA International’s Technical Services www.desatech.com.
  • Page 12: Troubleshooting

    VGL450 Series ® VENTED TYPE DECORATIVE APPLIANCE TROUBLESHOOTING Note: For additional help, visit DESA International’s Technical Service web site at www.desatech.com. Note: Before troubleshooting the system, make sure the gas shut-off valve is ON. OBSERVED PROBLEM Cannot light pilot Pilot will not stay lit...
  • Page 13 TROUBLESHOOTING Continued WARNING: If you smell gas • Shut off gas supply. • Do not try to light any appliance. • Do not touch any electrical switch; do not use any phone in your building. • Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
  • Page 14: Accessories And Replacement Parts

    VGL450 Series ® VENTED TYPE DECORATIVE APPLIANCE ACCESSORIES AND REPLACEMENT PARTS RECEIVER AND HAND-HELD REMOTE CONTROL KIT GHRC SERIES For all models. Allows the gas log heater to be turned on and off by using a hand-held remote control. BI-FOLD GLASS DOORS Brushed Brass - VDGL450 Polished Brass - VDPL450 For all models.
  • Page 15 OWNER’S MANUAL NOTES _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ 105704...
  • Page 16: Warranty Information

    We make no other warranty, expressed or implied. DESA International warrants this product to be free from defects in materials and components for four (4) years from the date of first purchase, provided that the product has been properly installed, operated and maintained in accordance with all applicable instructions. To make a claim under this warranty the Bill of Sale or cancelled check must be presented.
