Hardware Installation

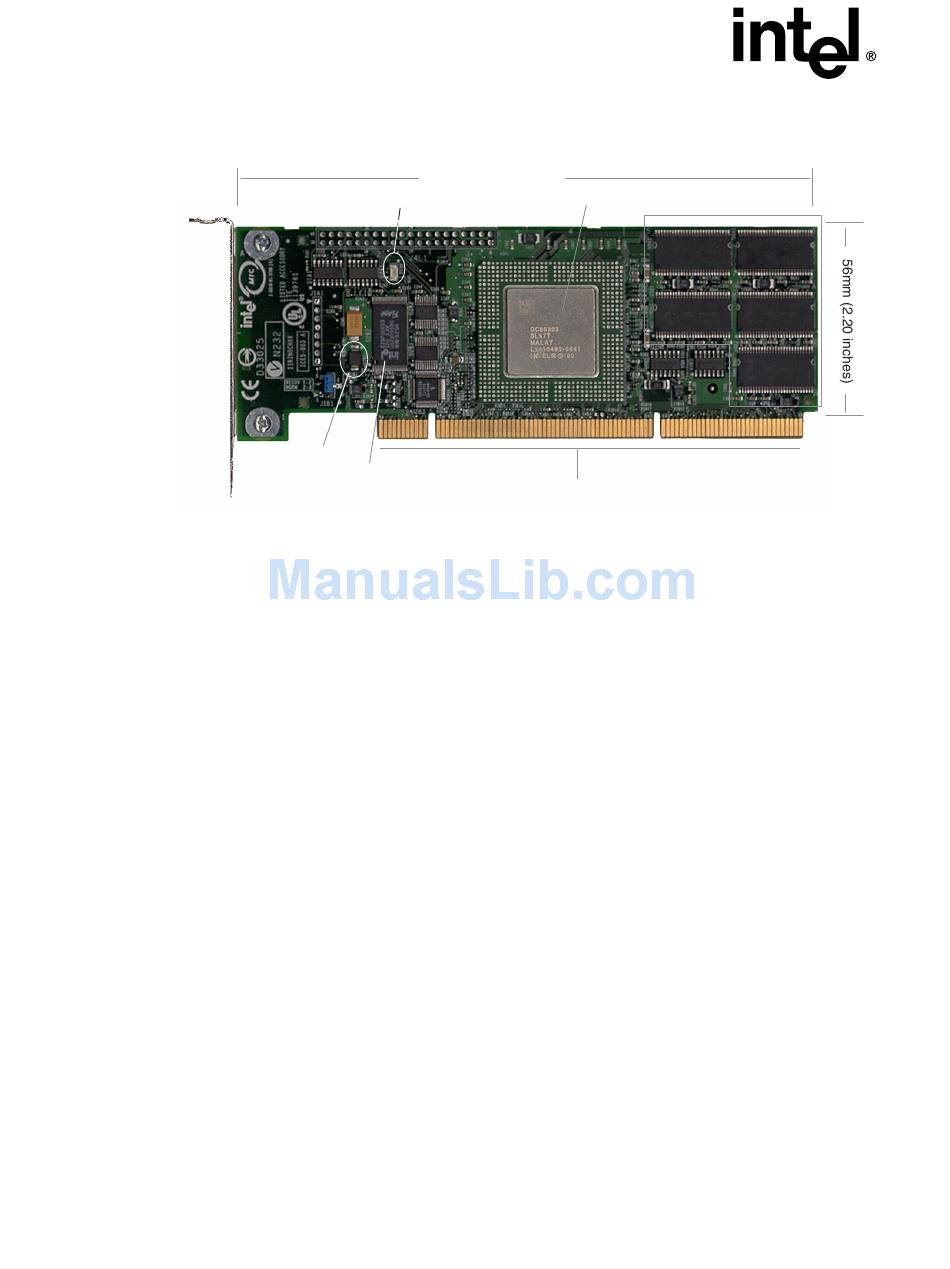

Figure 2-1. IIR Controller Component Layout
2.2.2

Installing the IIR Controller

1. Power-off the computer system.
2. Disconnect power cord(s) and remove the system cover.
3. Install the IIR controller into an available RAIDIOS-enabled PCI slot. See
The computer system (with RAIDIOS-enabled PCI slot) illustrated in
Note:
not be representative of your system. Consult your system docs for the exact location of
the RAIDIOS-enabled PCI slot.
4. Connect one end of the SCSI cable to the on-board SCSI connector. Connect the other
end of the SCSI cable to the SCSI drives or drive enclosure.
Ensure that the end of the SCSI bus is properly terminated. See
Note:
guide for termination details.
5. Replace the system cover and reconnect power cord(s).
14
167mm (6.57 inches)
DS2A1
J1B1
Flash Memory
(Requires a RAIDIOS-enabled PCI slot)
I/O Processor
64Bit 3.3 Volt PCI Interface
Hardware Installation and User's Guide
SDRAM
Figure 2-2.
Figure 2-2 may
Section 2.4 in this
