Understanding Fiber Types - Compaq StorageWorks 4000 - RAID Array White Paper

Understanding Compaq StorageWorks RAID Array 4000 and Infrastructure Cabling
In Figure 2, the small diameter of a single-mode fiber allows one coherent stream of light to
travel along a single path. Longwave lasers are used with single-mode fiber to transmit data up to
10 kilometers.

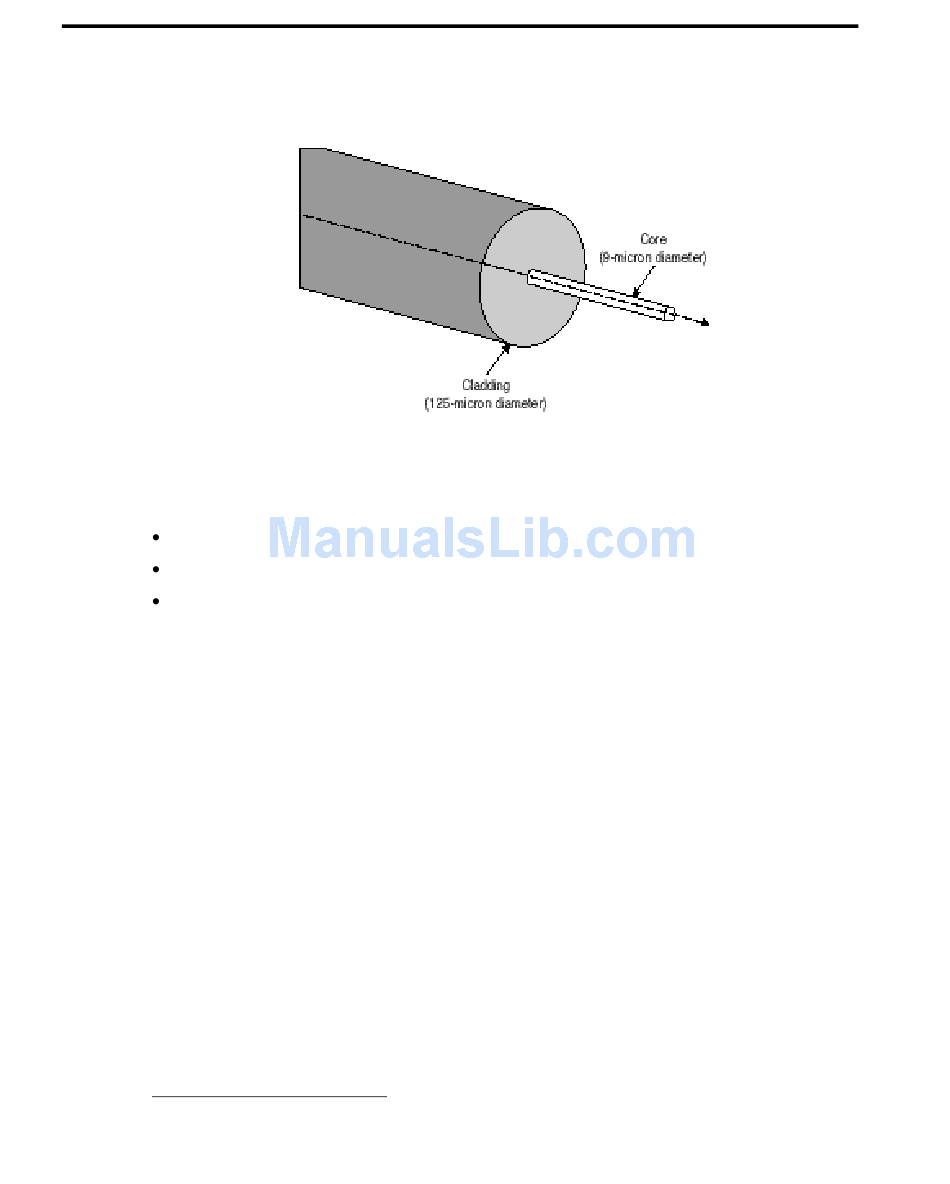

Figure 2. Single-mode fiber cable

Understanding Fiber Types

Types of fibre channel media
62.5-micron multi-mode.
50-micron multi-mode.
9-micron single-mode.
4
The fiber types are distinguishable by their data transmission rates and distance capabilities.
ECG02030699A
4
include:
