4. Install the RAID controller into an available server system x8 or x16 PCI-Express*
slot. See your server system documentation to locate an appropriate slot and for
instructions on installing an add-in card. See also the following figure.
5. For the four drives, ports 0 - 3, connect one 4-port combined end of an internal
cable to the connector. See the following figure.
To prevent throughput problems, use the cable provided or use the shortest possible
cable. Do not use a cable longer than one meter. Decrease the maximum length by
one foot if using a backplane. Do not use a cross-over cable. Only connect to SAS
or SATA drives, SAS or SATA backplanes, or an expander device. Route the cable
carefully. Check that controller and cable are all properly attached.
8

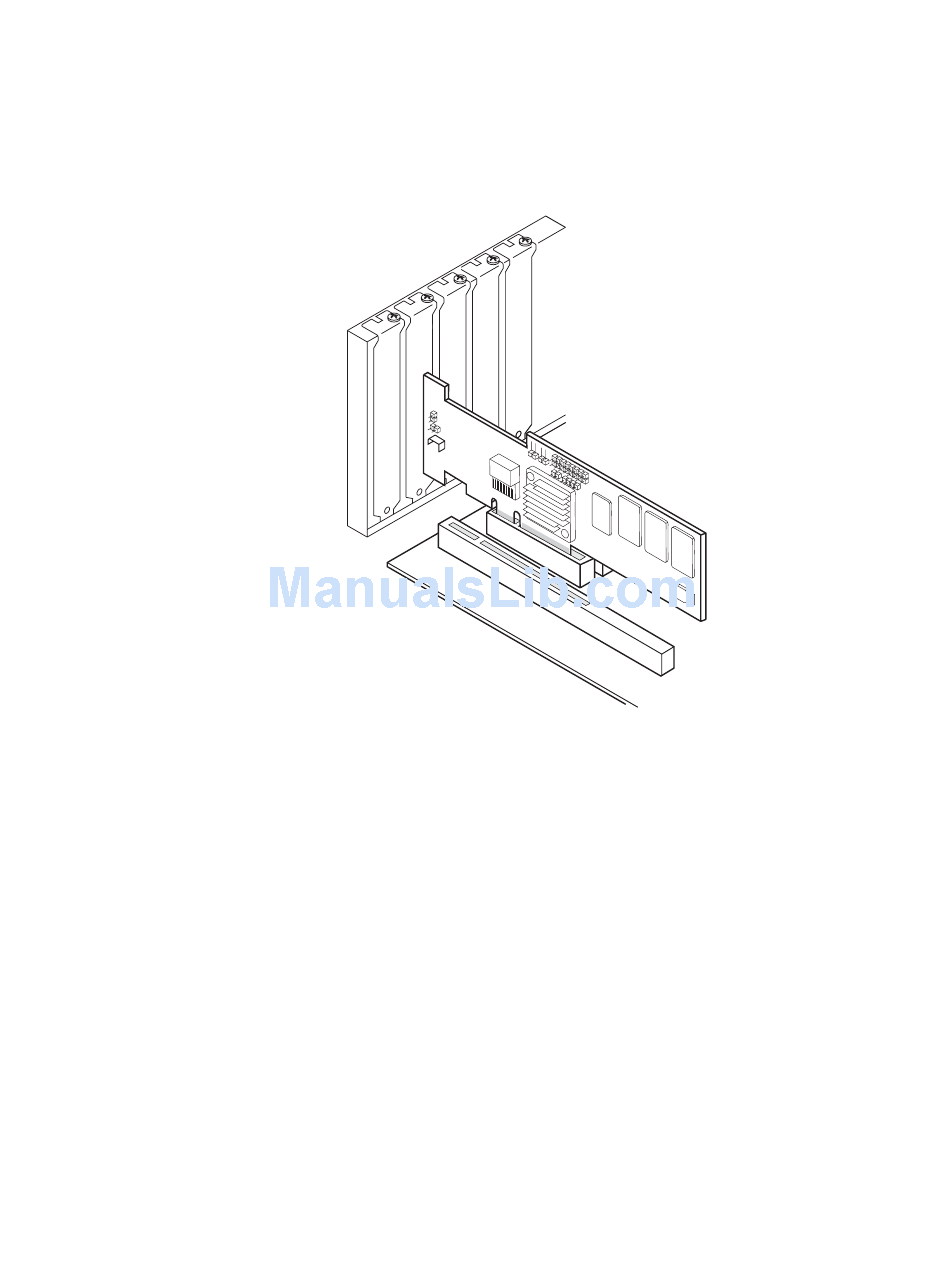

Figure 2. Installing the Intel
AF002638
®
RAID Controller SRCSASLS4I
Intel® RAID Controller SRCSASLS4I Hardware User's Guide
