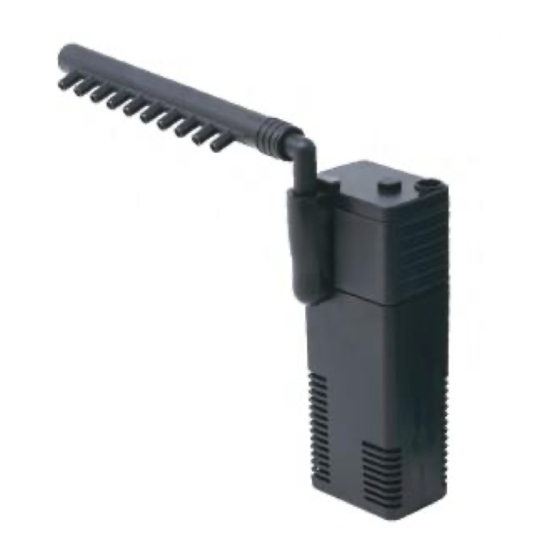

All Pond Solutions 600IF Manual

Aquarium internal filter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AQUARIUM INTERNAL FILTER
200IF / 300IF / 450IF / 600IF
/ 800IF / 1200IF

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 600IF and is the answer not in the manual?

Questions and answers

Related Manuals for All Pond Solutions 600IF

Summary of Contents for All Pond Solutions 600IF

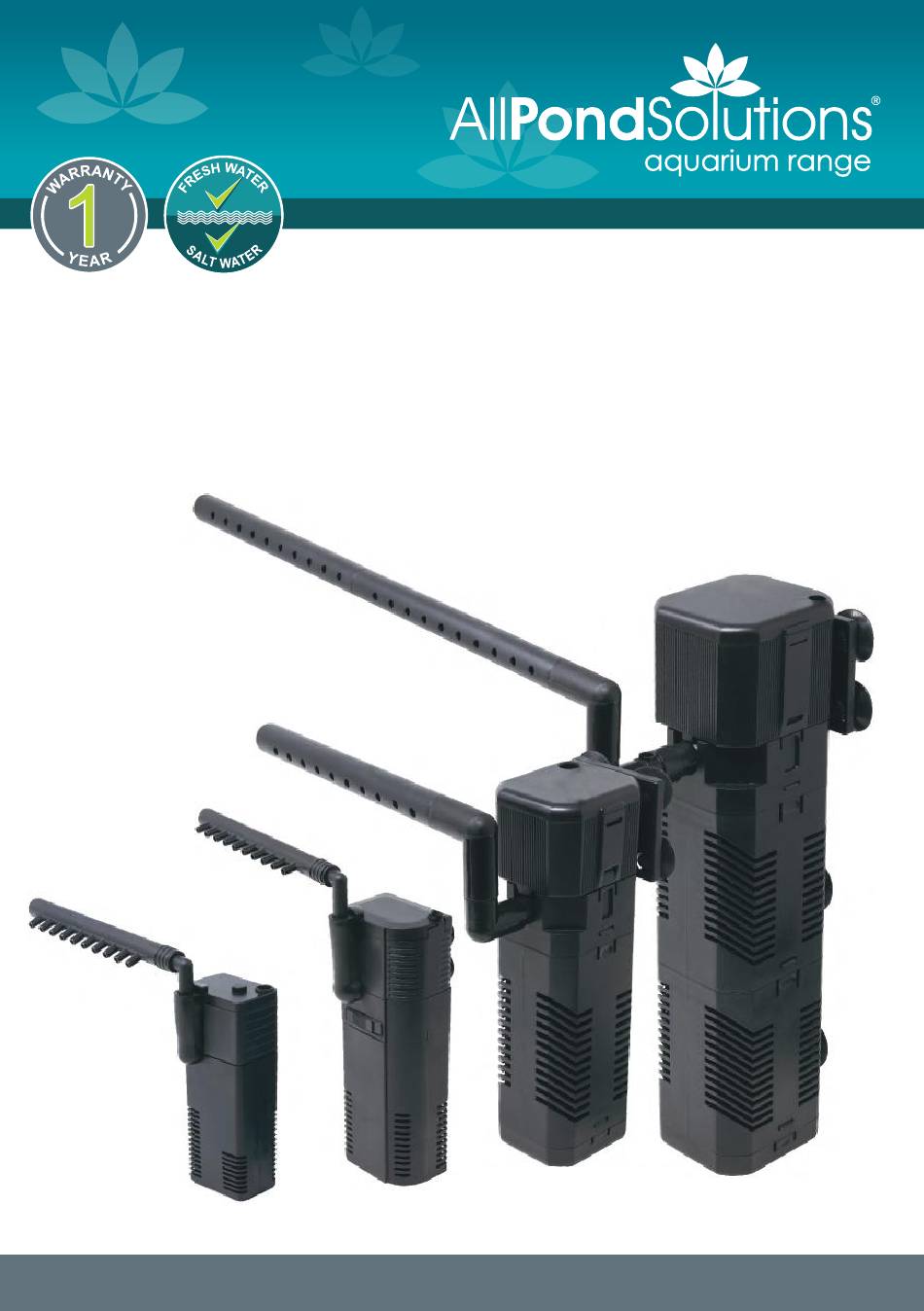

  • Page 1 AQUARIUM INTERNAL FILTER 200IF / 300IF / 450IF / 600IF / 800IF / 1200IF...
  • Page 2 To ensure your new filter is set up and running correctly, and to prevent any accidental damage or injury, please read and follow the below instructions carefully before using your product. SAFETY IMPORTANT! Disconnect the mains electricity supply before attempting any installation / maintenance of any kind.
  • Page 3 If the unit shows any signs of water leakage, disconnect the power supply · cord from the wall socket and consult All Pond Solutions or the retailer you purchased this unit from for further advice. If the plug or unit does get wet, DON'T unplug the cord. First, disconnect ·...
  • Page 4 ELECTRIC This unit comes complete with a generous supply of 3 core cable, however should any additional cable be required, the use of an approved waterproof cable connector with a proper rating is essential. A cord rated for less amperes or watts than the appliance rating may overheat.

  • Page 5: Maintenance

    Replace Other Media * Please note the 200IF & 300IF models do not have O-rings. In general, it is recommended to disconnect your filter and clean the impeller and filter sponges monthly. The unit will become blocked with waste and protein slime over time, so regular cleaning is important for optimal performance.
  • Page 6 Maintenance & Disassembling Should you need to disassemble your unit for maintenance or repair purposes, please follow the steps below: IMPORTANT! Unplug the power cord from the mains before handling or attempting maintenance. Move your unit to a flat stable surface near a sink or other drain.
  • Page 7 Remove and clean filter sponges and filter media - clean through the included media* and filter foam. 600IF / 800IF / 1200IF models - gently depress the push clips located on both sides and then pull away the filter bottom from the case to access the bottom foam.

  • Page 8: Troubleshooting

    Spray bar 800IF comes supplied with 2 air pipes 1200IF comes supplied with 3 air pipes Ensure the IF is fully submerged at all times. 200 /300 / 450IF MODEL 600 / 800/1200IF MODEL Please note: A clogged impeller is often the primary cause of all filter faults, so it is extremely important to clean and inspect your impeller every month to ensure it is functioning correctly and remove any debris.

  • Page 9: Noisy Operation

    Noisy Operation Solutions: Check that your impeller and shaft are seated correctly and not Ÿ damaged in any way. Ensure the impeller is free of any type of blockage and can rotate freely Ÿ inside the motor head. The Water In My Aquarium Is Dirty Causes: The beneficial bacteria have not yet established in your new filter.
  • Page 10 COMMON AQUARIUM QUESTIONS Why Is My Aquarium Water Cloudy? Causes: Bacterial blossom - As the new aquarium goes through the initial Ÿ break-in cycle, the water can become cloudy or at least a little hazy. It might take several weeks to establish beneficial bacterial colonies that are able to clear waste from the water.
  • Page 11 Phosphates - phosphates result from decaying matter (e.g. fish food) Ÿ and from the water source. If your water naturally has a high level of phosphate, you will need to use a phosphate remover to treat it after water changes. You may also consider reducing the amount of food you give your fish.

  • Page 12: Parts Diagram

    PARTS DIAGRAM 200/300IF MODEL 450IF MODEL VENTURI AIR PIPE PUMP PUMP AIR INTAKE VALVE IMPELLER IMPELLER IMPELLER COVER IMPELLER O-RING AIR PIPE FILTER FOAM IMPELLER COVER FLOW ADJUSTER CASE FILTER CASE CURVED PIPE FILTER MEDIA BOX PIPE CONNECTOR FILTER FOAM SPRAY BAR FILTER CASE AIR PIPE...
  • Page 13 PARTS DIAGRAM 600IF SUCTION CUPS FILTER BOTTOM SPRAY BAR END SUCTION CUP PLATE SPRAY BAR PUMP O-RING CURVED PIPE AIR PIPE IMPELLER STAINLESS STEEL SHAFT VENTURI AIR PIPE IMPELLER COVER AIR INTAKE VALVE FILTER CASE CONNECTION FILTER CASING FILTER FOAM...
  • Page 14 PARTS DIAGRAM 800IF SUCTION CUPS FILTER BOTTOM SPRAY BAR END SUCTION CUP PLATE PUMP SPRAY BAR O-RING CURVED PIPE AIR PIPE IMPELLER STAINLESS STEEL SHAFT VENTURI AIR PIPE IMPELLER COVER AIR INTAKE VALVE FILTER CASE CONNECTION FILTER CASING FILTER FOAM...
  • Page 15 PARTS DIAGRAM 1200IF SUCTION CUPS FILTER CASING FILTER FOAM SUCTION CUP PLATE PUMP FILTER BOTTOM O-RING SPRAY BAR END IMPELLER SPRAY BAR STAINLESS STEEL SHAFT CURVED PIPE IMPELLER COVER AIR PIPE FILTER CASE CONNECTION VENTURI AIR PIPE AIR INTAKE VALVE...

  • Page 16: Specifications

    SPECIFICATIONS 200IF 450IF 600IF 800IF 1200IF MODEL 3000IF 220-240V VOLTAGE POWER 0.45M 0.6M 0.9M 1.1M 1.4M H-MAX 200L/H 450L/H 600L/H 800L/H 1200L/H MAX OUTPUT 300L/H MAX AQUARIUM 110L 150L 250L VOLUME DIMENSIONS 32x38x105 36x44x115 43x53x112 76x505x152 95x62x287 74x70x382 (mm) HEIGHT MAX...

  • Page 17: Warranty

    WARRANTY The All Pond Solutions IF filter range is guaranteed against defects in material or workmanship under normal aquarium usage and comes with 12 months warranty for all electrical parts. The warranty period commences from the date of purchase. If you require support on how to use your unit, replacement parts or if your filter develops a fault during the warranty period, please contact the supplier of your unit.
  • Page 18 All Pet Solutions Limited Trading as All Pond Solutions Unit 203 Riverside Way, Uxbridge, Middlesex, England, UB8 2YF...
